I am trying to fix this myself because the warranty has run out and im lost.

A home owner from Templeton massachusetts says:
February 8, 2023

The window measured 40x32 from trim to trim. It has a coil on each side which are both broken. I really dont know what parts are what i apologize.

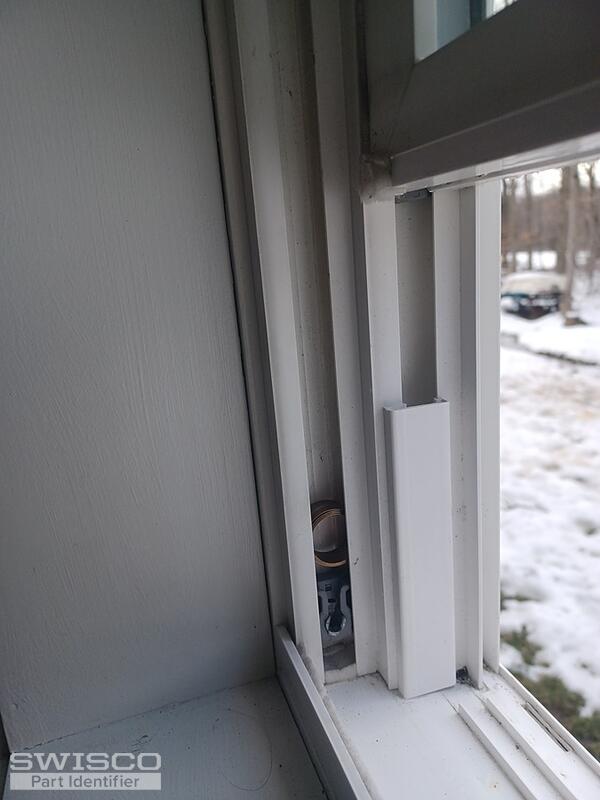

Thumbnail of the uploaded file named 20230208_110733.jpg

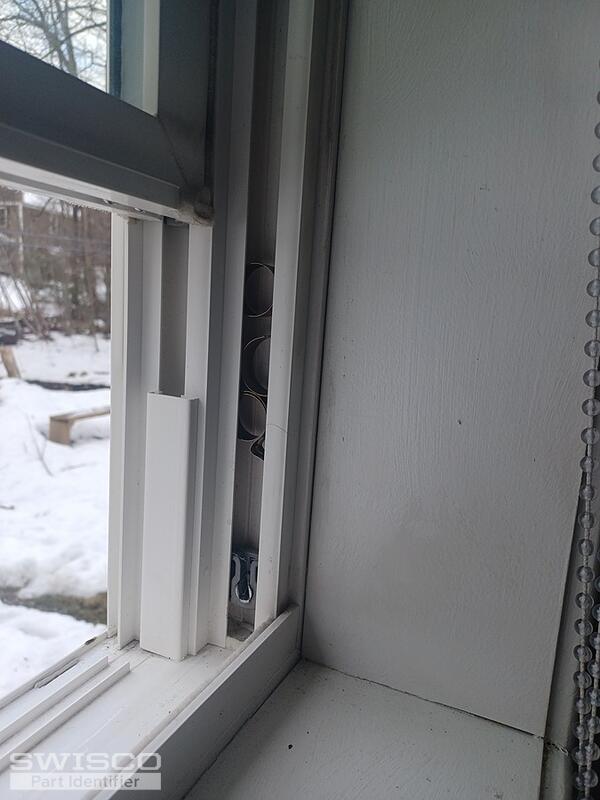

Thumbnail of the uploaded file named 20230208_110722.jpg

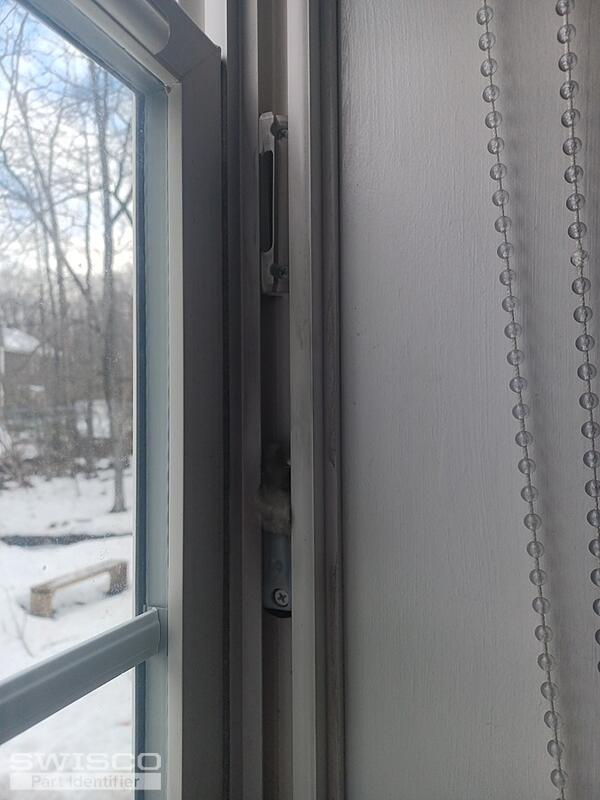

Thumbnail of the uploaded file named 20230208_110712.jpg

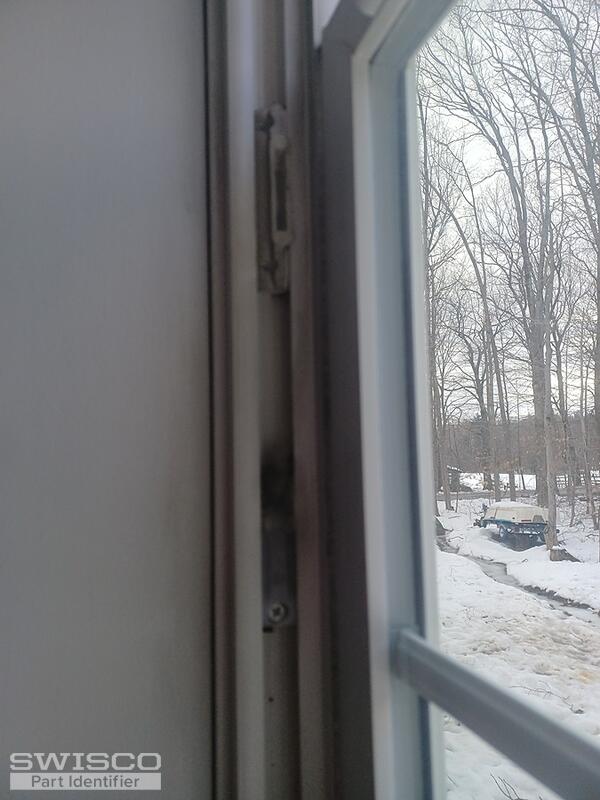

Thumbnail of the uploaded file named 20230208_110703.jpg
Profile picture of Emily
Emily from SWISCO responded:
February 8, 2023

Hello there!

Based on what's shown in your photos, I recommend our 15-191 pivot shoe which uses the Series 160 coil springs. To determine what coil weight you'll need, check the band on the springs for a stamped number. If there aren't any, you'll need to divide the sash weight by the total number of springs in the window to determine the appropriate coil weights. We've also related some videos on this page that you may find helpful.

Let me know if you have any questions!
Heavy Duty Pivot Shoe, 1/2" Thick
Heavy Duty Pivot Shoe, 1/2" Thick
15-191
$2.57
1/2" Coil Single Support
1/2" Coil Single Support
15-150S
$1.10
How to Remove a Pivot Shoe (Cutout Method)
How to Remove a Pivot Shoe (Cutout Method)
VIDEO
WATCH >
How to replace a window coil balance
How to replace a window coil balance
VIDEO
WATCH >
How to Replace a Triple Coil Balance System
How to Replace a Triple Coil Balance System
VIDEO
WATCH >
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
Removing a Triple Coil Window Balance
Removing a Triple Coil Window Balance
GUIDE
READ >
