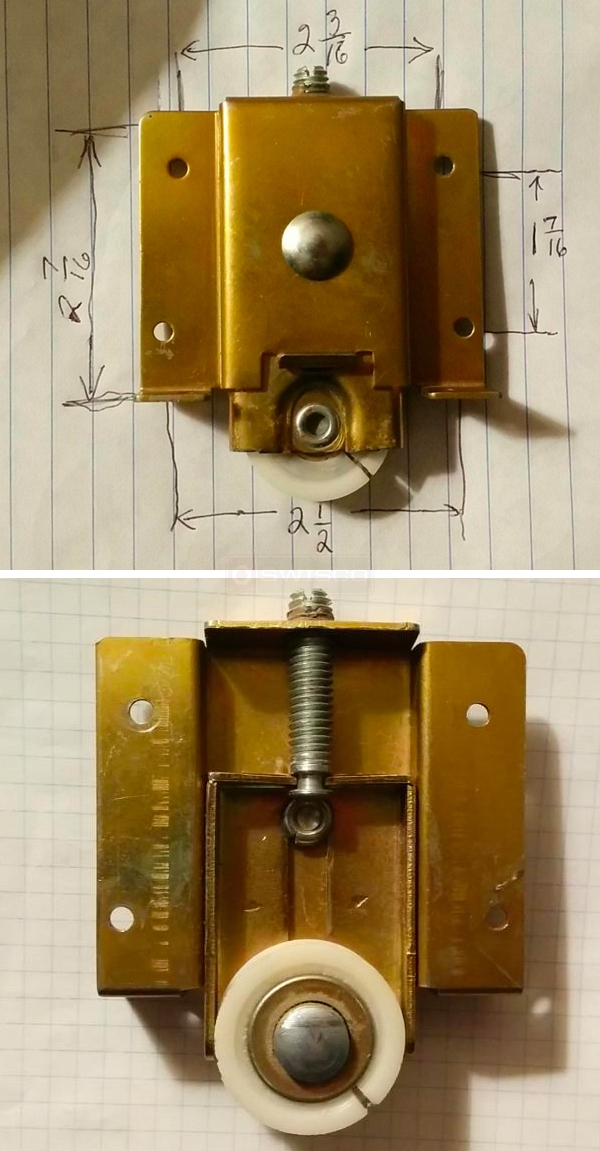

Please see attached, I checked 23-086, 23-028, 23-070, 23-081, 23-064, and I cant find a perfect match to the rollers I have. I need to buy 8 rollers that look like the photo attached. The measurements are 1 1/4 inch wheel diameter (white part of the wheel edge to edge, 1 7/16 inch apart vertically aligned holes, and 2 3/16 inch horizontal aligned top holes and 2 1/2 inch horizontal aligned bottom holes. The metal bracket is 2 7/16 inch tall. what is the right part number that matches this??
|
Paul from SWISCO responded:
March 28, 2018
Thank you for your interest in Swisco. We are leaning towards our 23-086 mirror door roller. It is a ball bearing wheel that measures 1-1/2" in diameter. However, it is adjustable so there wouldn't be any cause for concern. As for the screw holes, it appears you may only use the top hole on one side, so again, there should not be any cause for concerns. |
|
|
Paul from SWISCO responded:
March 29, 2018
We really do not recognize who the manufacturer of your roller assembly is. You actually can secure the roller assembly with the other holes. It just appeared that you were only using the one hole. |
