windows in a Condo needs new shoes

A contractor from Mount Clemens, MI USA says:
May 12, 2023
I have 8 of the 12 windows in a Condo rehab that needs new shoes - springs appear to be fine. Three quick questions:

1. Can I buy just the shoes or do I need to buy them loaded with the springs?
2. What are the related part numbers so I know what to order.
3. Am I correct that the shoes can be reloaded with the springs as either a right or Left shoe?

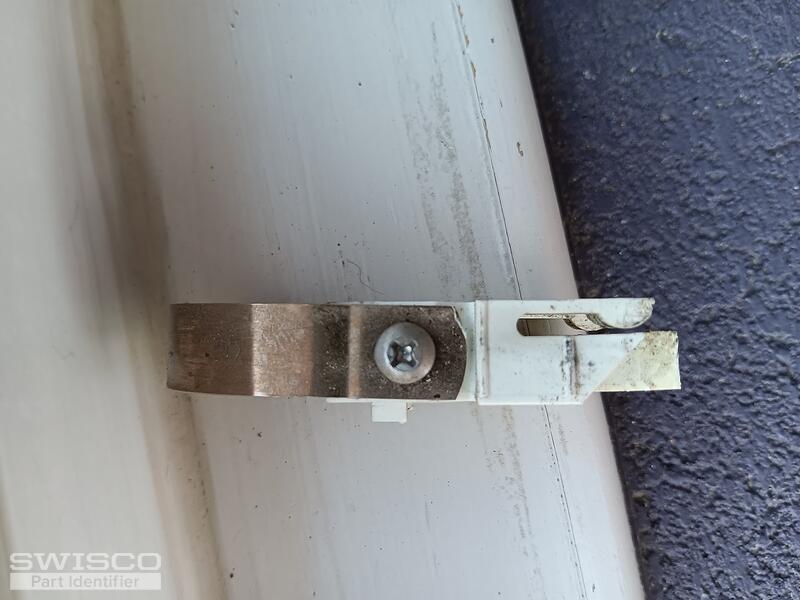

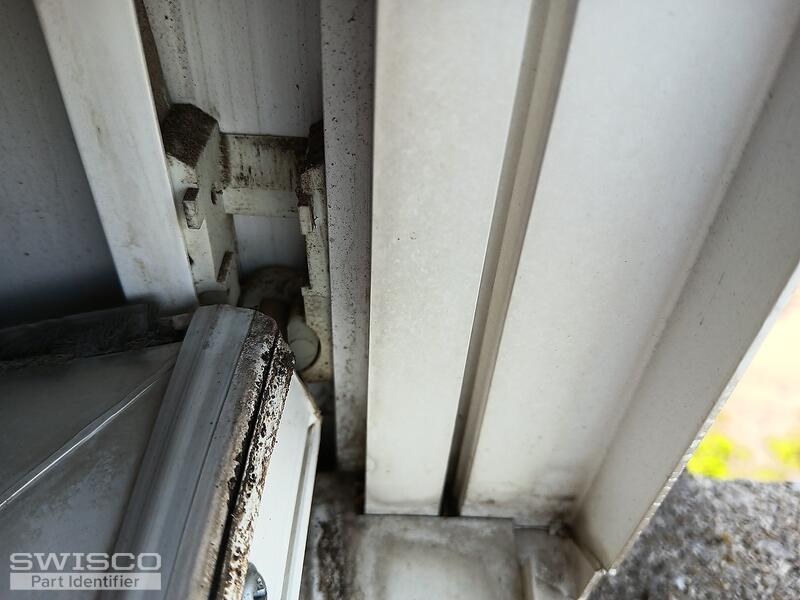

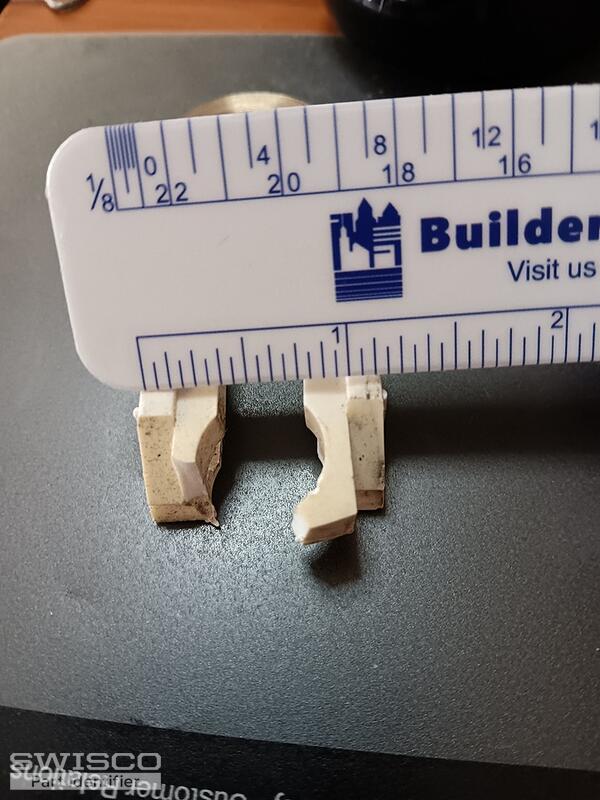

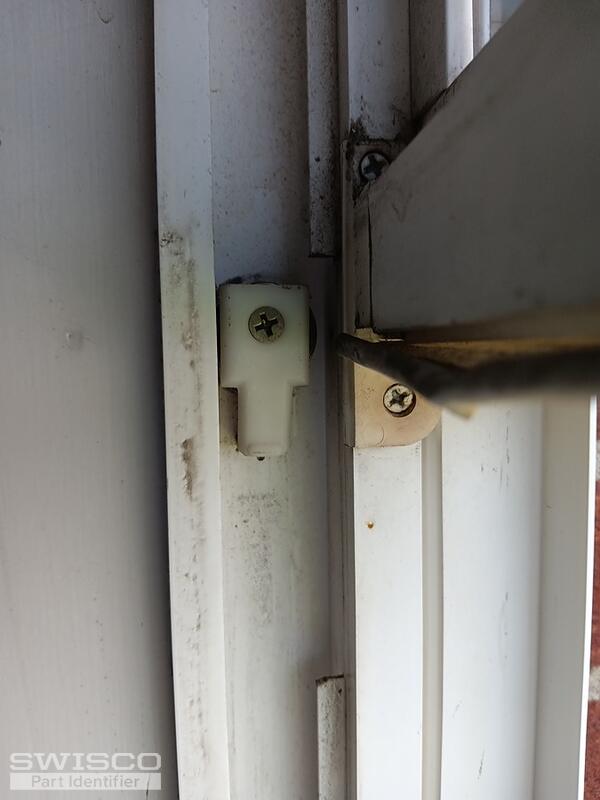

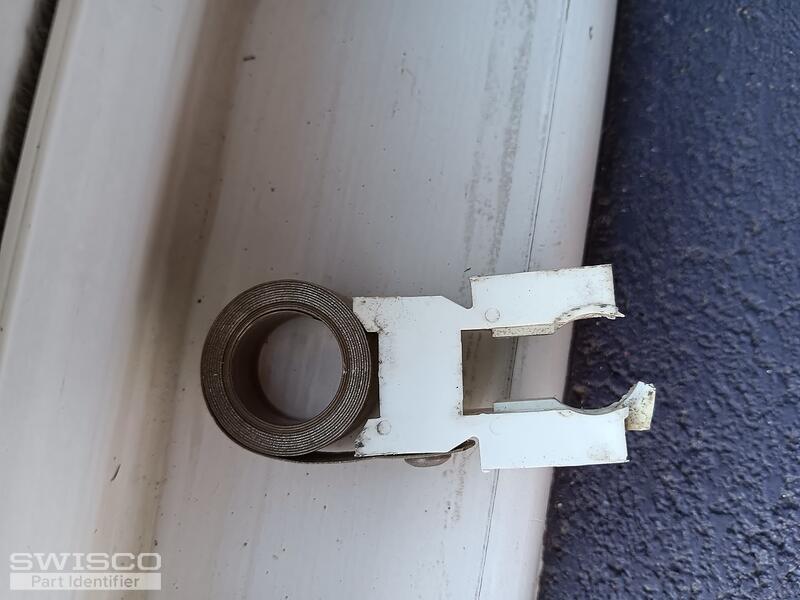

Thumbnail of the uploaded file named 20230512_100746.jpg
Thumbnail of the uploaded file named 20230512_100824.jpg
Thumbnail of the uploaded file named 20230512_101225.jpg
Thumbnail of the uploaded file named 20230512_101229.jpg
Thumbnail of the uploaded file named 20230512_105954.jpg
Profile picture of Paul
Paul from SWISCO responded:
May 15, 2023

Hello,

Your pivot shoe looks like a match to the 15-180 , which uses the S190 coil springs that are sold separately. There should be numbers stamped at the end of the coil spring that you'll need to choose the corresponding strength options. The coil spring clip would be the 15-186 that is used with the 15-182 bushing. Note that these parts are non-handed and can install on the left or right side of the window. Take a look and let us know if you have any other questions.

Coil Balance Shoe
Coil Balance Shoe
15-180
$3.97
Coil Balance Clip
Coil Balance Clip
15-186
$5.05
Balance Bushing
Balance Bushing
15-182
$1.80
440 S190 Coil Balance Spring
440 S190 Coil Balance Spring
S190-440
$9.74
940 S190 Coil Balance Spring
940 S190 Coil Balance Spring
S190-940
$11.94
