Home Owner from Denver CO

May 2, 2023 2:24 pm

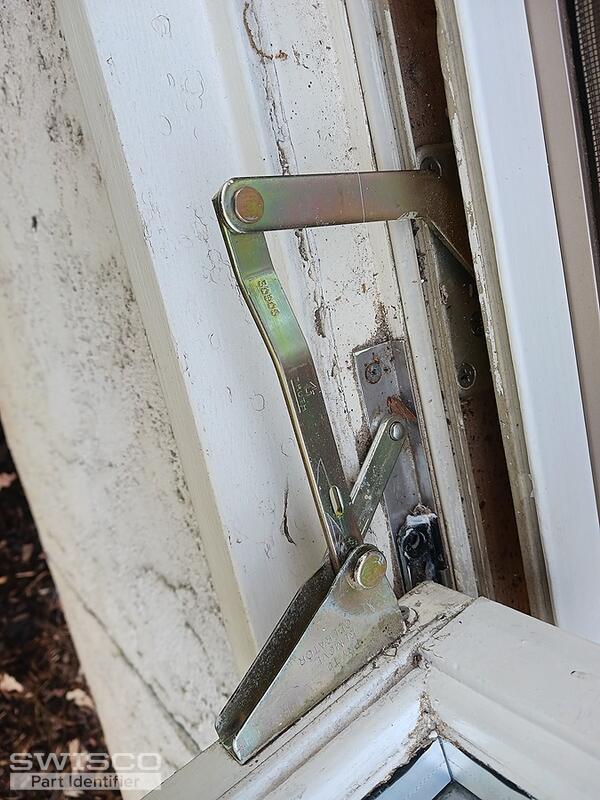

I need three replacement cranks for Weatherseal windows. One is for a smaller window, picture attached. The length of the crank is 10 inches for each of the two legs

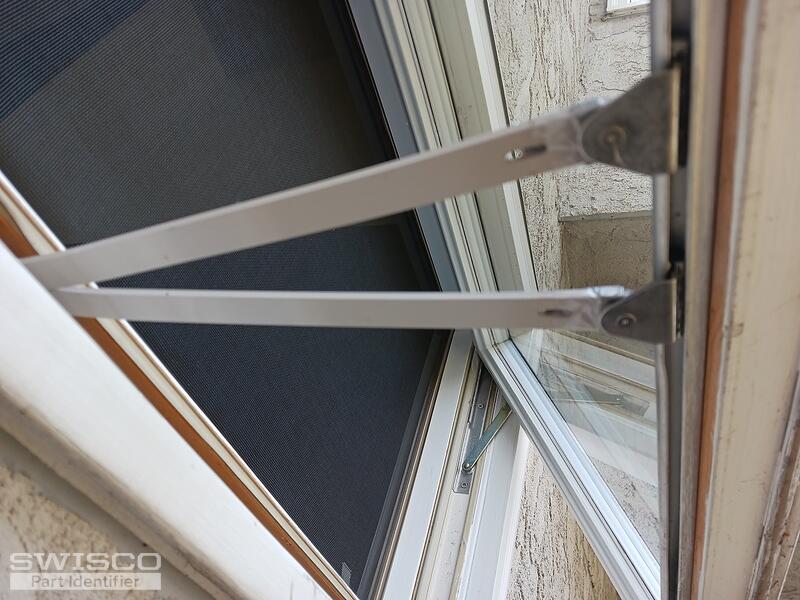

I need two cranks for a larger window, picture attached. The length of the legs are 5 inches d=for the cross piece na d4.5 inches for the piece coming out from the frame

3 user uploaded images

10 Replies

Casey from SWISCO

May 3, 2023 3:21 pm

Hello,

I would recommend starting by comparing the specifications of the 39-171 and 39-172 to your casement window operator.

As for your awning window, your photo reminds me of the 39-348, which is used with the 36-078 shoe studs that are sold separately. Take a look and compare the specifications below to your original hardware and let us know if you have any other questions. Thank you!

Dimensions for 39-172

detail of 39-348

Dimensions for 36-078

Home Owner from Denver CO

May 13, 2023 1:45 pm

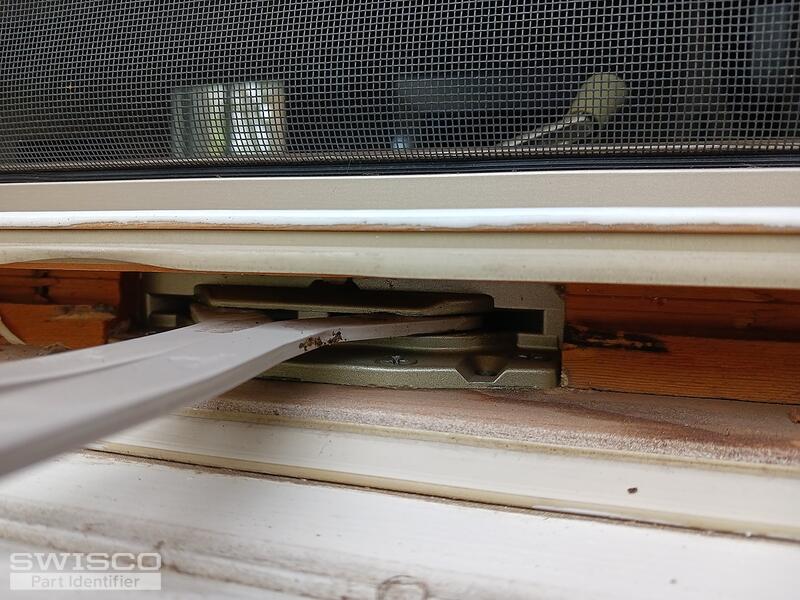

Thanks. 39-171 looks to be correct. 39-348 is the right length. However the shoe stud where looks materially different. A copy of the base where the awning operator attached is attached to this response. Let me know what is the correct shoe stud

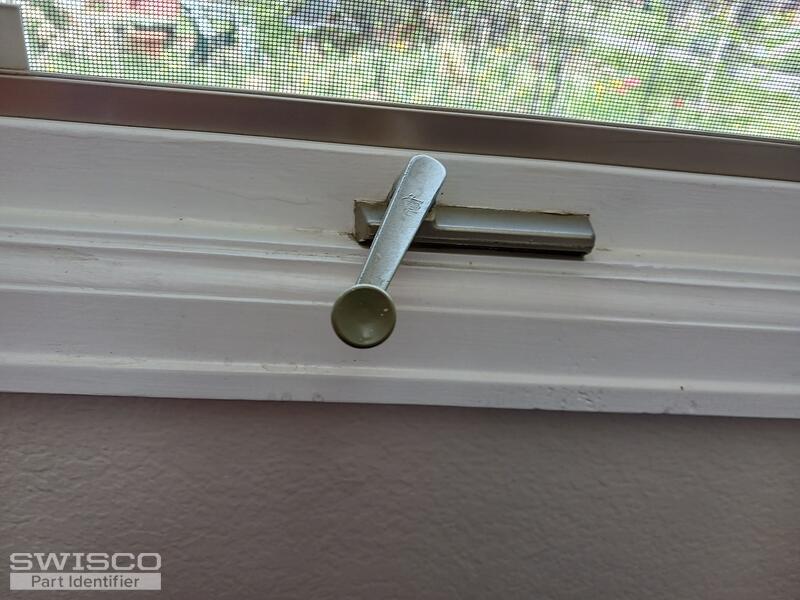

Also attached is a picture of the window crank I need to repalce

2 user uploaded images

Casey from SWISCO

May 15, 2023 7:58 am

Thanks for getting back to us. If you think that the 36-078 shoe stud may differ from yours, we'd be happy to look into this further but we would need to see detailed photos of your original stud detached from the track. Please also write out any dimensions that differ from the ones shown above. Though I still believe that the 36-078 looks like the part in your photos, seeing additional images would help us confirm if a better match is available.

Home Owner from Denver CO

May 15, 2023 5:41 pm

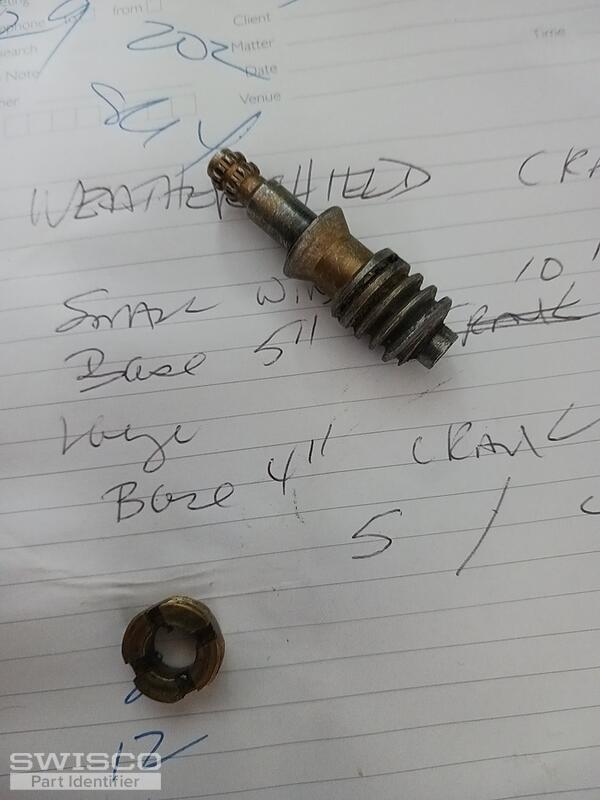

I took part of the base apart. The problem is the part of the window crank that as on the inside of the house, not the outside. The crank spins in place and wont close the window. I can get the window open not closed. The part that doent work are attached.

1 user uploaded image

Casey from SWISCO

May 16, 2023 7:56 am

Thank you for clarifying, Unfortunately, the spline shown in your photo that attaches the handle to the operator base is not designed to be replaced. Once this part breaks, the entire operator would need to be swapped out.

Home Owner from Denver CO

May 16, 2023 1:22 pm

Do you have ta replacement for the entire unit like for the other casement. What you showed me looks like the outside part, the show stud but no cranking mechanism

Casey from SWISCO

May 16, 2023 1:43 pm

Unfortunately, the 36-078 shoe studs do not come preattached to the 39-348 operator. You may be able to reuse your original shoes and, if not, they would need to be purchased in addition to the operator.

Home Owner from Denver CO

May 16, 2023 2:01 pm

Soo you use the same operator ( 39-171) put use the same attachement or is there a special operator for the aaning attachments

Casey from SWISCO

May 16, 2023 2:21 pm

The 39-171 does not use an attachment. The link arm connects to the bracket attached to your sash as shown in your first photo. If you're referring to the brackets, past customers have used the 39-545 and 39-546 with this assembly but you should be able to reuse the originals if they are still in good condition.
