Paul from SWISCO responded:
May 15, 2018

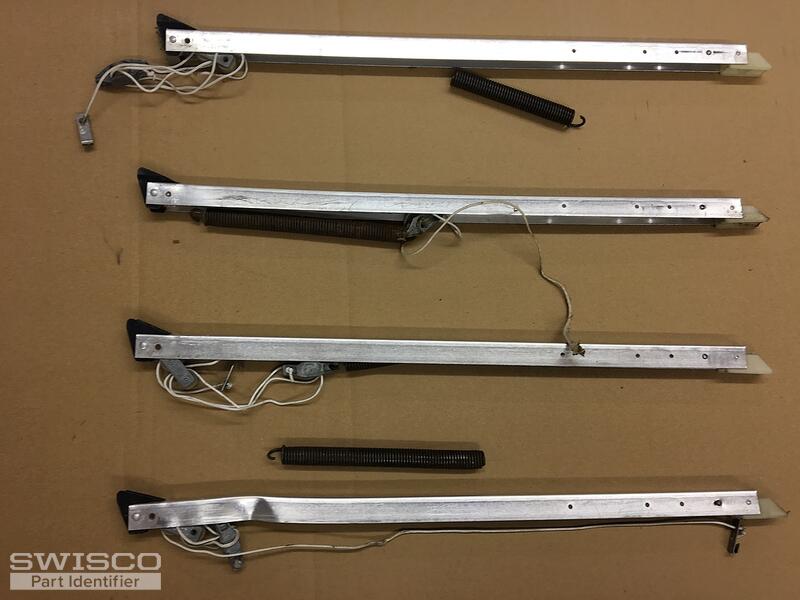

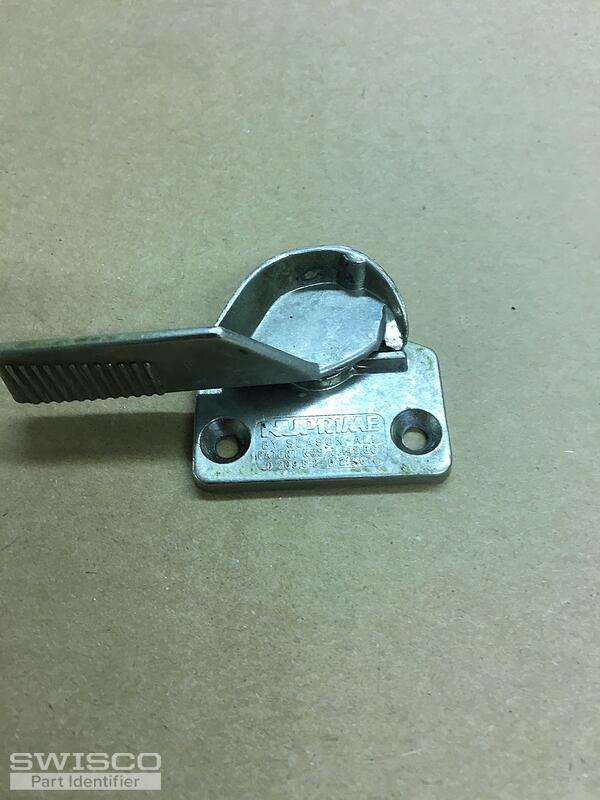

Thanks for your patience. Let's start with your window lock and move on from there. The best match for your lock should be our 90-042 along with our 90-041 keeper. As for your channel balances. It seems you are showing an old Nuprime channel balance that can be replaced with our Series 390. I noticed some of your markings, "1640" and "1540". We'd like for you to confirm the metal length of your balance in order to tell you which ones would make the best matches. |
Paul from SWISCO responded:
May 15, 2018
As for the fogged glass, we won't be able to assist you with that since we only offer window and door replacement hardware. You will need to take your sashes to your nearest glass shop and they should be able to replace the insulated glass with a new one. Best of luck on this project. |
Hi Paul,

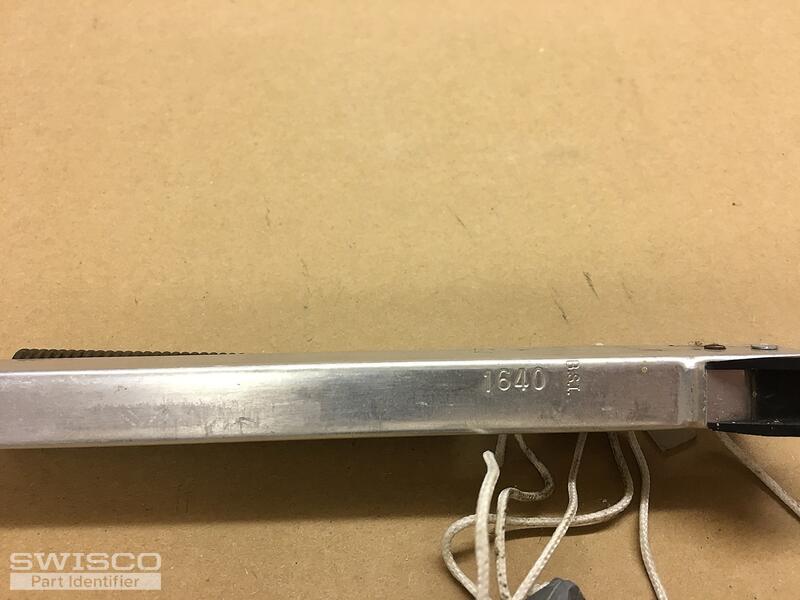

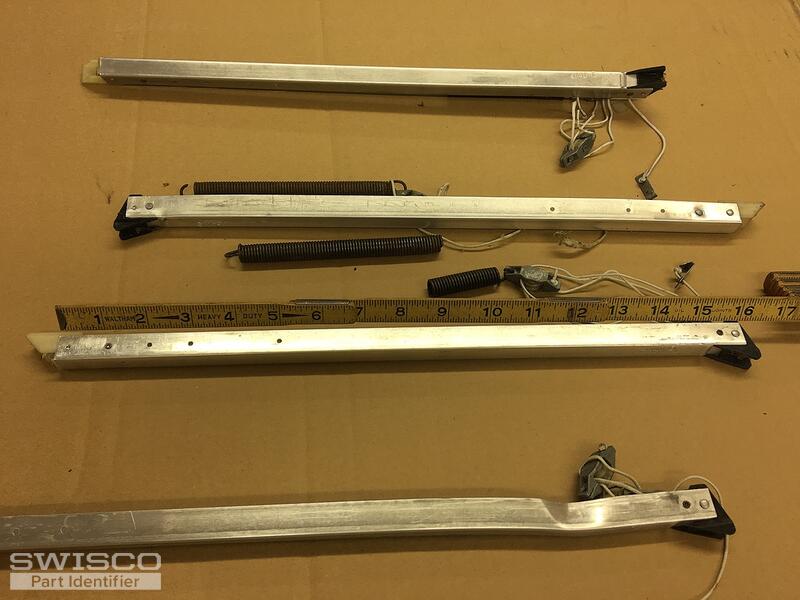

Thank you for the reply. The metal length on all four channel balances are 16". I also used a magnifying glass to confirm all the stamped number are 1640.
Take care,
Tom S
Paul from SWISCO responded:
May 21, 2018
If your stamp is 16", the length of the metal channel should be 17". If your metal channel is 16" instead, then the original installers must have cut it down an inch for whatever reason. Maybe it's all they had available. You can go with our 16" balance but you'll need to weigh your sash on a scale to confirm the proper option. |
Paul from SWISCO responded:
June 1, 2018
Hi Tom, No problem at all. For your sash weighing 13 lbs, I would recommend going with the 1550 option for the S390-16 balance. Unless you have any other questions, you should be all good to go! |
