I have a broken latch to a reasonably new NAMI

Question

Hello:

I have a broken latch to a reasonably new NAMI?) kitchen window. Windows of the entire house was supplied through Home Depot via a contractor. I am having difficulty finding a replacement part. Unfortunately, when I unscrewed the latch and lock-piece from the window frame, I lost connection with the internal anchor-bar. OK Problem for a later moment.

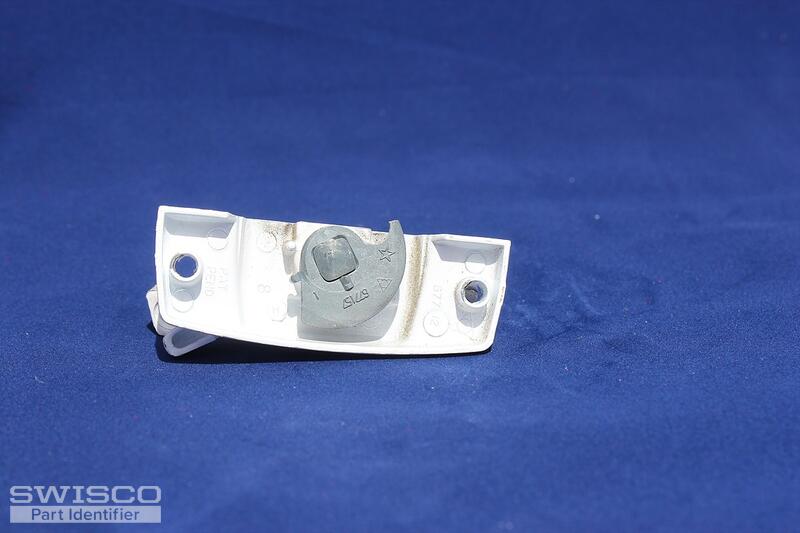

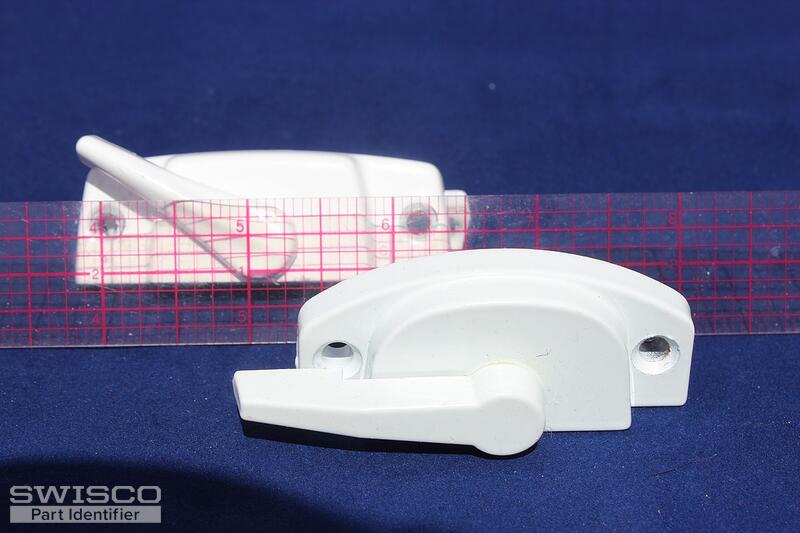

Attached, are five photos that clearly show the style and dimensions of the latch I need to replace. The transparent ruler next to the piece indicates center-to-center screw hole dimension as well a overall dimentions. Photo #...2440 shows the supposedly replacement part supplied by Home Depot. As you can see the replacement part is wholely unusable because the distance from the lock-plate to the rounded outside edge is greater than the replacement part's analogous dimension. Photos shows broken engagement tip on the original latch.

Center-to-center mounting hole measurement is 2 and 1/4 inches.

Can you find an identical replacement part?

Thank you

Paul · Accepted Answer

Hi there, thanks so much for posting! I think our 90-300 looks like a close match, as it has 2-1/4" hole spacing and a 7/16" offset.

This sash lock comes with a face-mount keeper, but I'm not sure what yours looks like. You can simply discard it if it's not needed. Let us know how it works out for you.
