Start a new Discussion
Contractor from Newport Beach ca.
Aug 15, 2023 4:54 pm

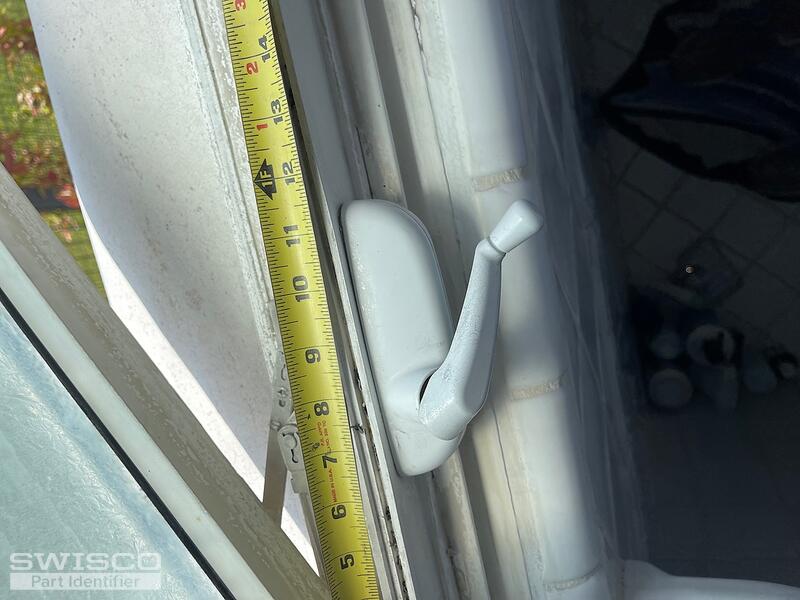

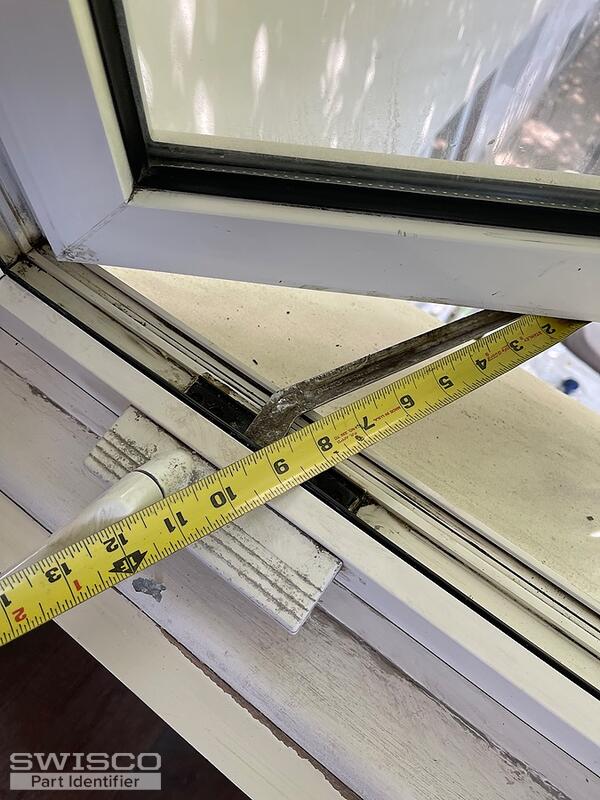

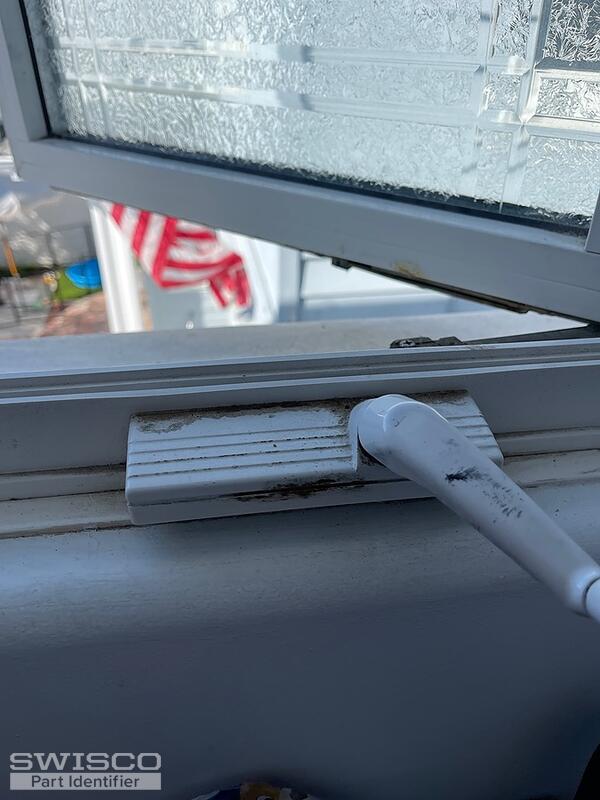

I need replacement parts for all of the hardware pieces shown in the pictures and I'm going to be sending more pictures as well. Some of the hardware is no longer working and needs to be replaced and then I want to have additional hardware in inventory for future replacement if you could help. Thank you.
5 user uploaded images
4 Replies
Contractor from NPB ca.
Aug 15, 2023 4:58 pm
This is the second batch of photographs of various aspects of hardware that I need to replace and then also have some additional hardware to keep in inventory. I would like two of each. I know some are left-handed some are right handed.
5 user uploaded images
Contractor from NPB ca.
Aug 15, 2023 5:01 pm
So this is like 15 pictures some of it is redundant, but I wanted to do the best job I could for you to see what type of hardware you're looking at with the tape measure. Hopefully you can make sense of all of this and put together an order everything right and left times two. I know I've ordered from you before. I may have ordered some of this hardware from you before but definitely other stuff. Thanks.
5 user uploaded images
Lauren
Lauren from SWISCO
Aug 16, 2023 11:38 am
SWISCO
Expert

Hello, thank you for posting,

Unfortunately we cannot help with all hardware shown, but let's get into what we can replace.

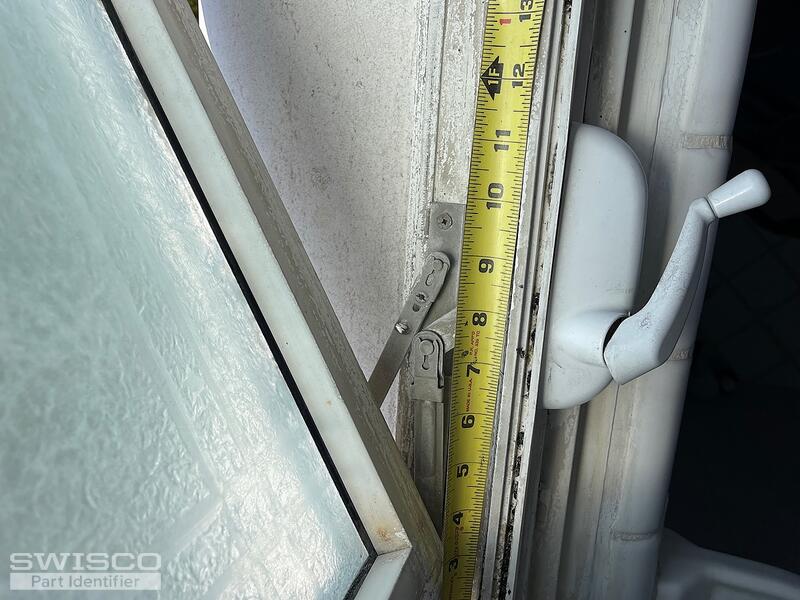

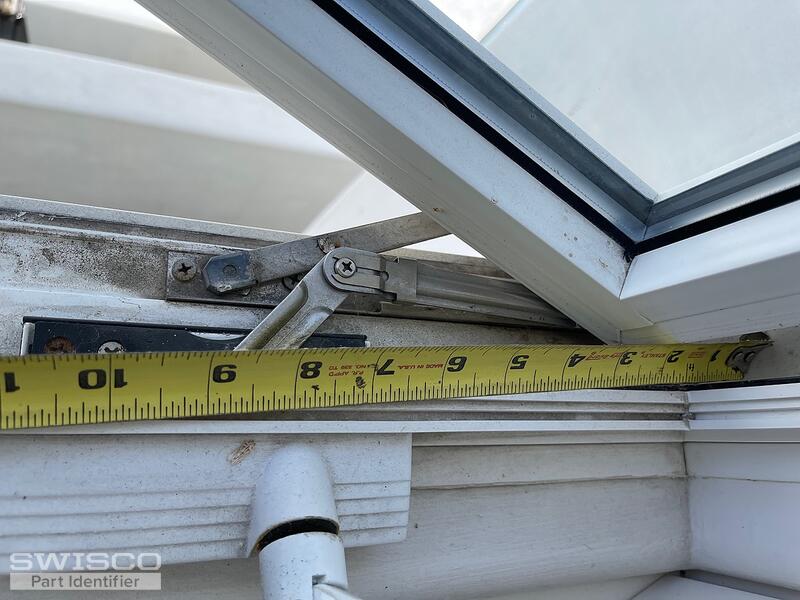

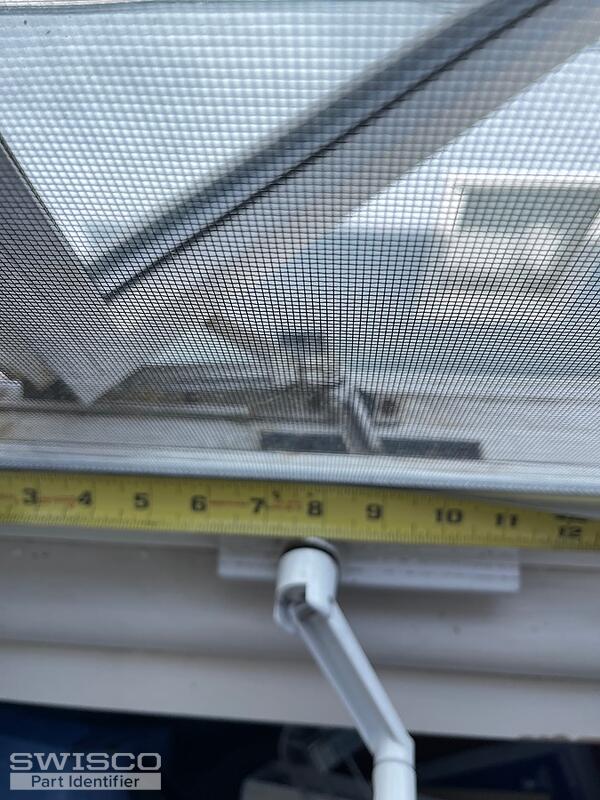

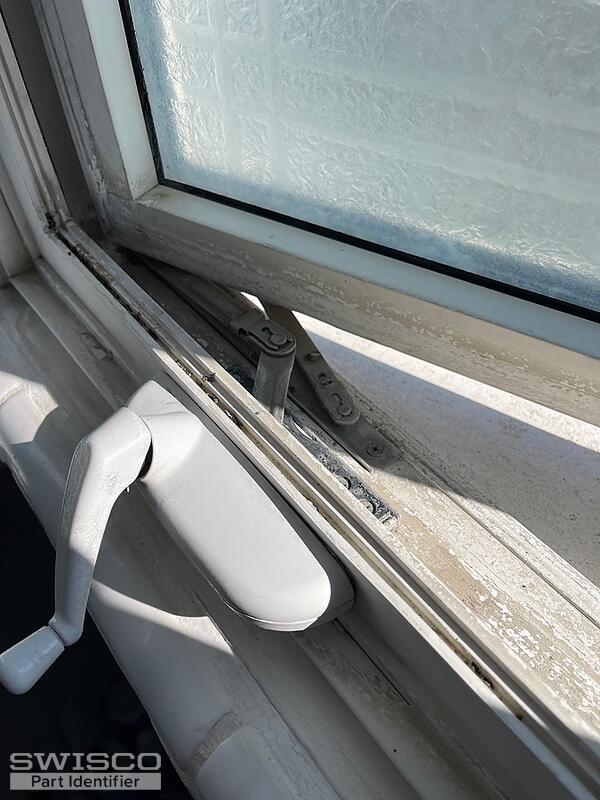

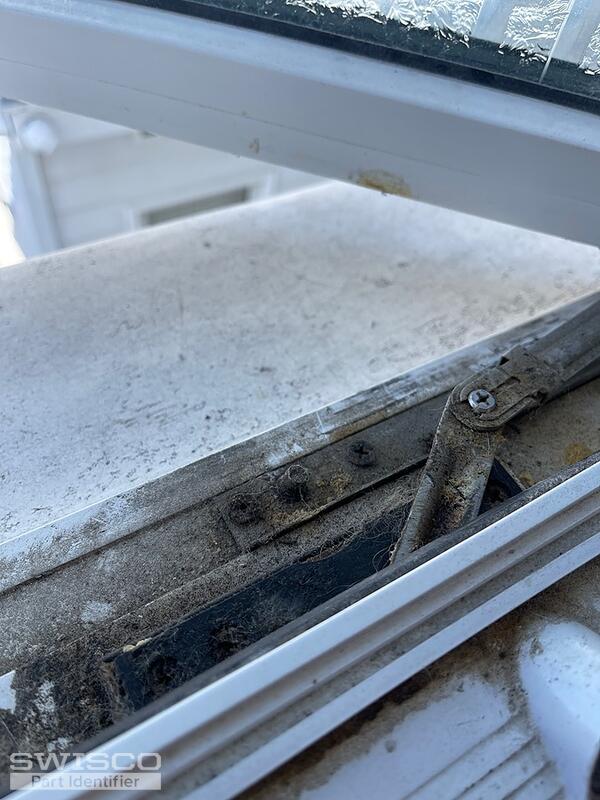

It appears some of your windows use the 39-091 and 39-092 operators while others use an older version of this operator. The newer version above is our best replacement option for the older style. Please note that the link arm that connects the operator to window sash has been discontinued. You will need to reuse this arm to for your windows to function. Also review the 39-224 handle and 39-557 spacer if needed. Review all dimensions to confirm a good fit!

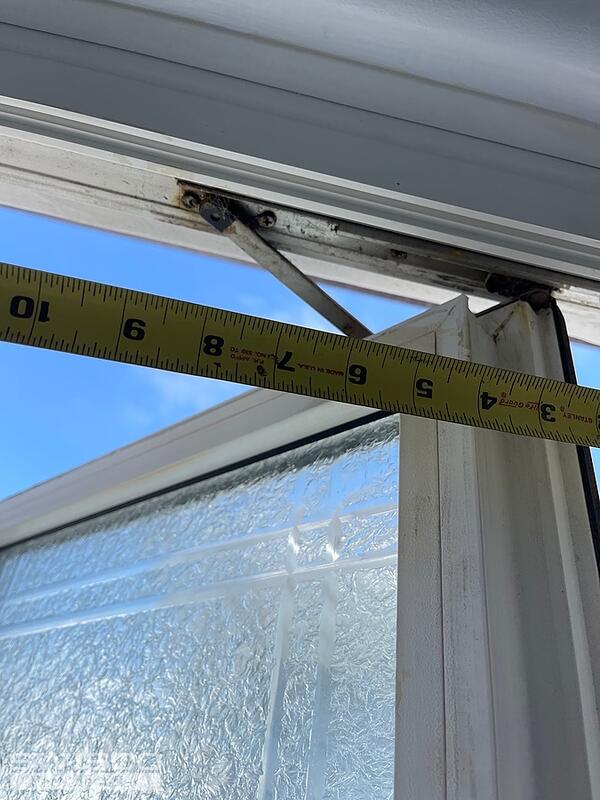

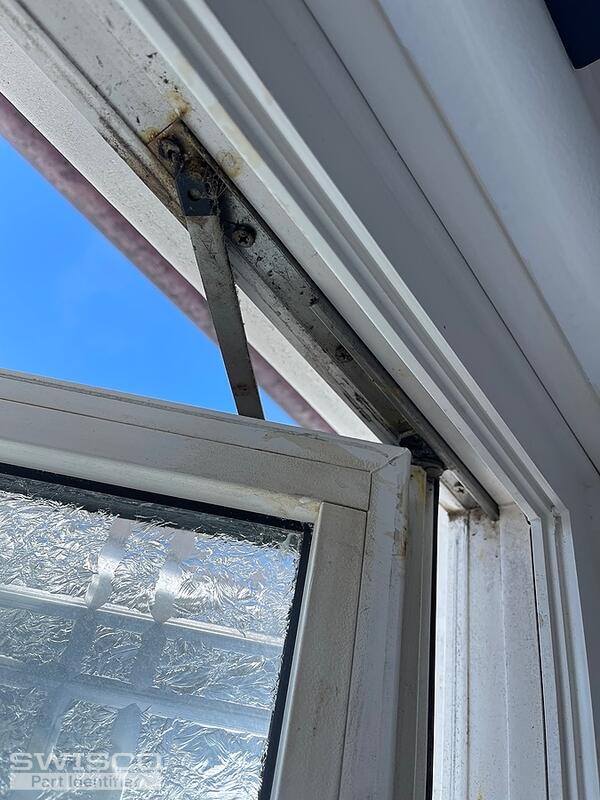

For the hinges, please review the style and dimensions of the 36-004-10 2-bar hinge set. Please note that both the top and bottom hinges will need to be replaced at the same time.

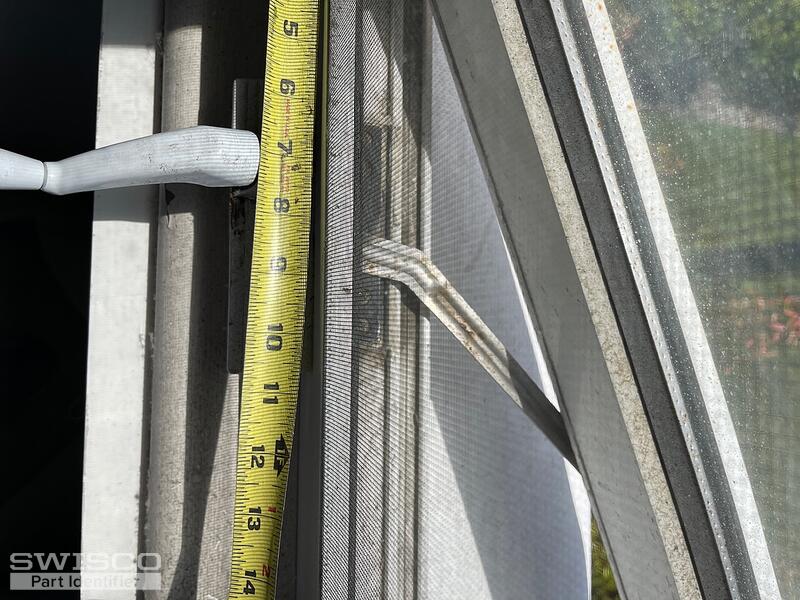

The Roto operator with the long arm (3rd picture in your first set of iamges) has been discontinued and we cannot offer a suitable replacement for this operator.

Please review and let me know if you have any additional questions!
