I need 2 left and 2 right coil balancers for this type of window please

Handy Person from New York, USA

Sep 22, 2022 8:50 am

I need 2 left and 2 right coil balancers for this type of window please.

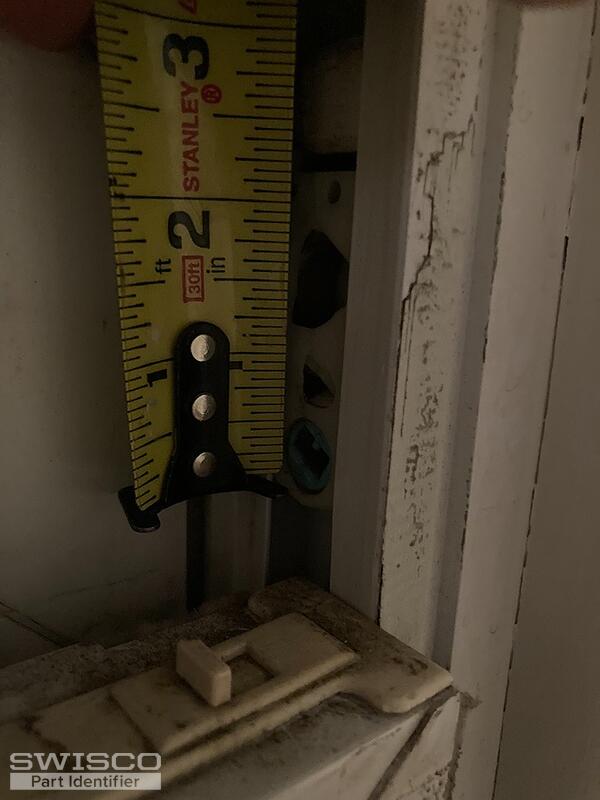

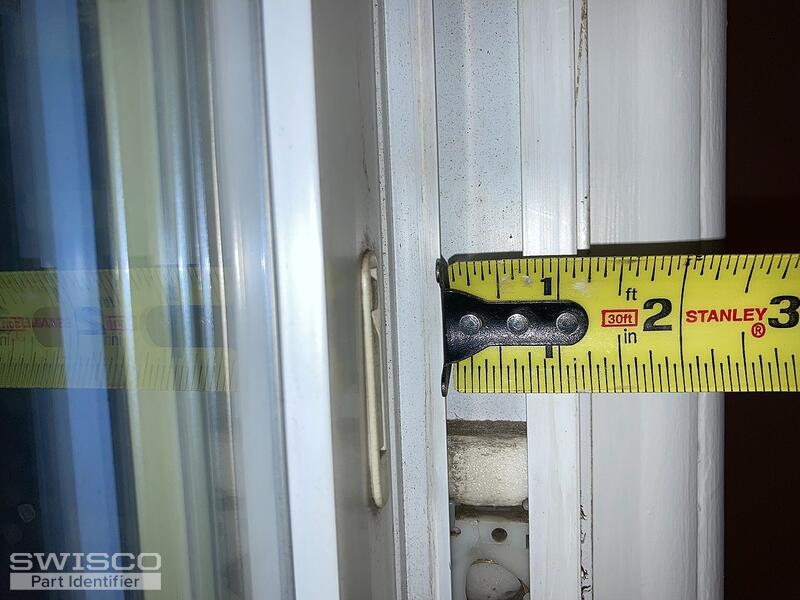

I sent the photos for the clips I needed on reference # D268097

5 user uploaded images

4 Replies

Tom from SWISCO

Sep 28, 2022 10:02 am

Hello! We sell the individual components to your coil balance assembly. Please see our 15-087 pivot carrier and Series 180 coil spring. These can work for both the left and right hand side interchangeably.

Please let me know if you had any other questions, or wanted clarification on these recommendations.

Handy Person from New York, USA

May 3, 2023 4:26 pm

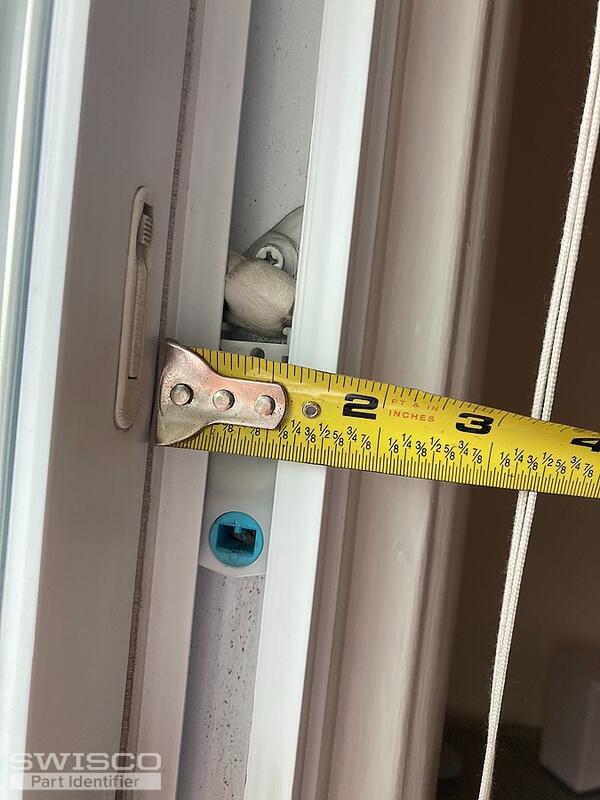

Do you sell a coil housing pivot that will work in this window frame that has the option to drop in when it is in the locked position similar to 15-105

Thank you in advance,

Anthony

1 user uploaded image

Tom from SWISCO

May 4, 2023 11:03 am

It sounds like you want a "U" shaped cam rather than a "closed" cam like what we have on the 15-087. I suppose our Series 161 is similar to our 15-087 assembly, but I'm not sure how well that would work in your case. The housing is thicker by 1/16" so it may not fit in the track, which is my main concern.

We always recommend sticking with the original setup anyway. If it's worked fine for all these years, then you don't really want to mess with success.
