I need (8) Channel balances : SWISCO.com

Quick Learner from Dewey, AZ

Jun 24, 2024 4:07 pm

I need (8) Channel balances for four Jordan non-tilt windows. They read:

27 4 IW CMC 11

1 user uploaded image

4 Replies

Emily from SWISCO

Jun 26, 2024 3:45 pm

Hey there!

Thanks for reaching out to us. We can help with this. However, I'm afraid the stamped number here isn't a part number so I don't know what it is that you need exactly. Can you upload clear photos of the top and bottom fittings?

Quick Learner from Dewey, AZ

Jun 26, 2024 6:43 pm

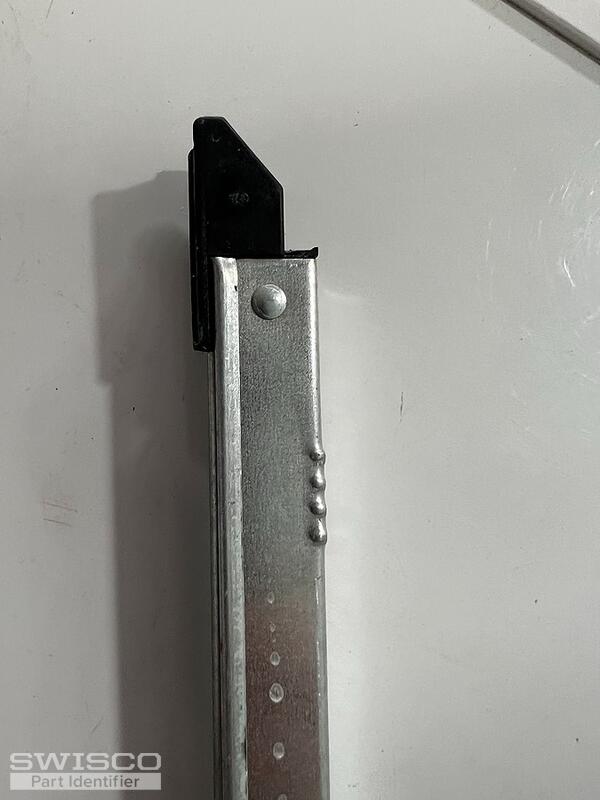

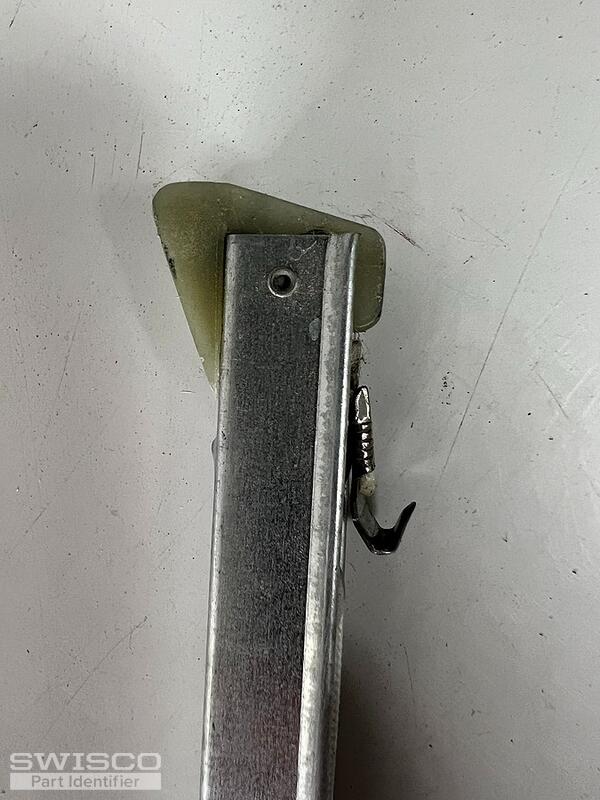

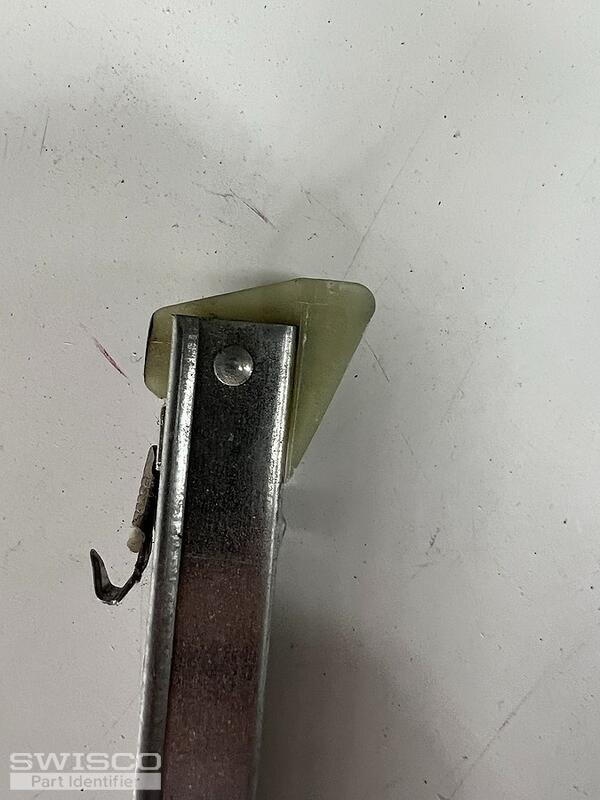

Here are the photos for my (8) needed Channel Balances. Please let me know which model I need to by. The metal part of the balances are exactly 28" long.

Thank you!

Kirk

5 user uploaded images

Emily from SWISCO

Jun 27, 2024 8:18 am

Thank you, Kirk! These photos are perfect. Depending on the depth of the bottom shoe, you'll want the S351-28 or S390-28 channel balance with the 2740 stamp option. Measure as shown below to determine which is the best match.

You can place an order right on our website at your convenience!

Comparison of the S351 and S390 balance shoes.
