I need a balancer for a Pella window

Handy Person from US

Jun 29, 2024 8:14 pm

Hi,

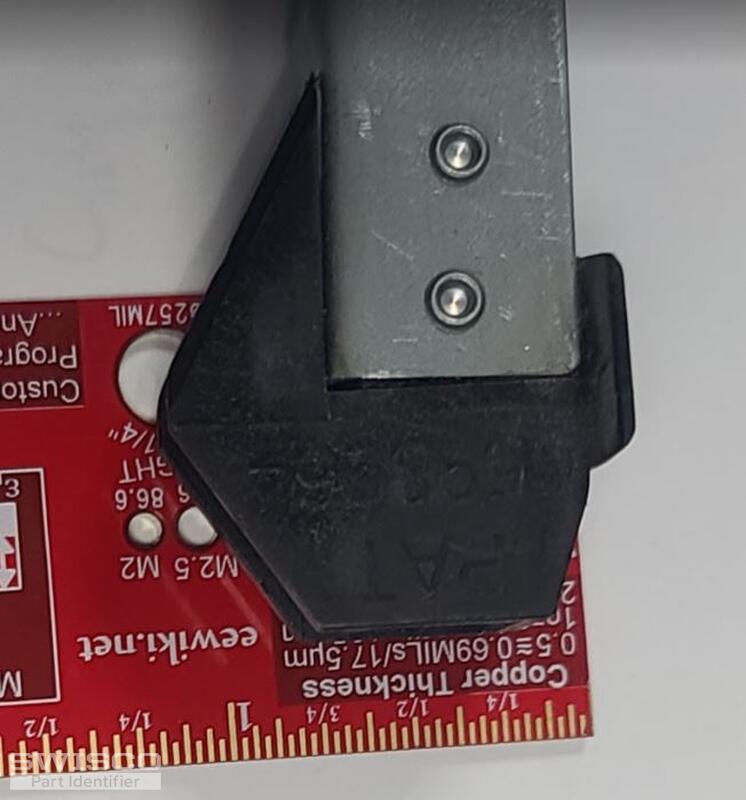

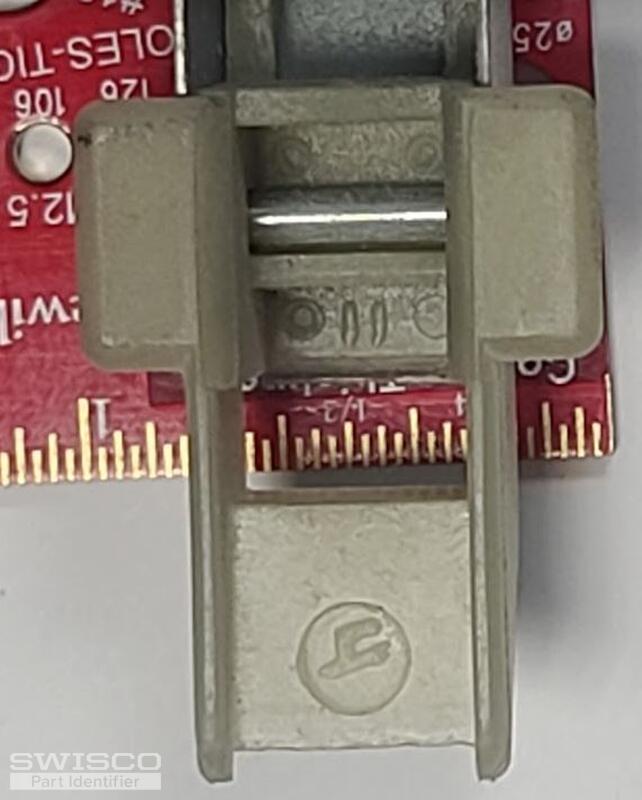

I have a window with broken channel balances. The metal length is 29-5/8" and 1/2" wide, and I included pictures of both ends. The black plastic piece is 1 1/8". Could you help find the correct parts?

Thank you.

Best regards,

Victor

2 user uploaded images

8 Replies

Emily from SWISCO

Jul 1, 2024 4:31 pm

Hey there Victor.

We can help with this via custom order. The pulley wheel is built into the bottom fitting itself and this balance features an extended cord travel as well as a metal channel length ending of 29-5/8" which is what makes it custom. I'll just need a few more details to get this moving for you. Can you show us photos of the bottom show from a side angle? We will also need to see the metal clip attached at the end of the pulley cord. Lastly, how many balances are you looking to replace?

Handy Person from US

Jul 1, 2024 11:46 pm

Hi,

Thank you for working on this. I do not have the metal clip. It is missing.
I need two of these.

Best regards,

Victor

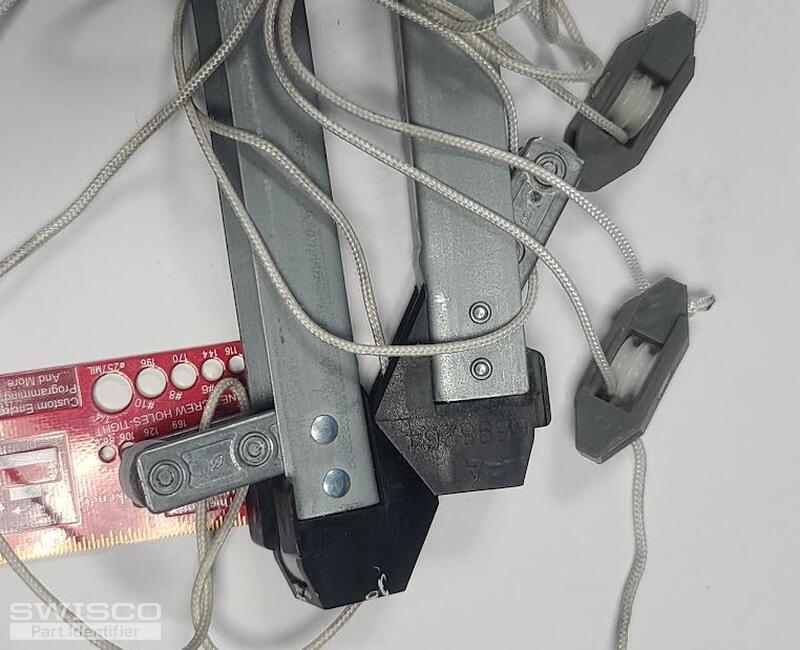

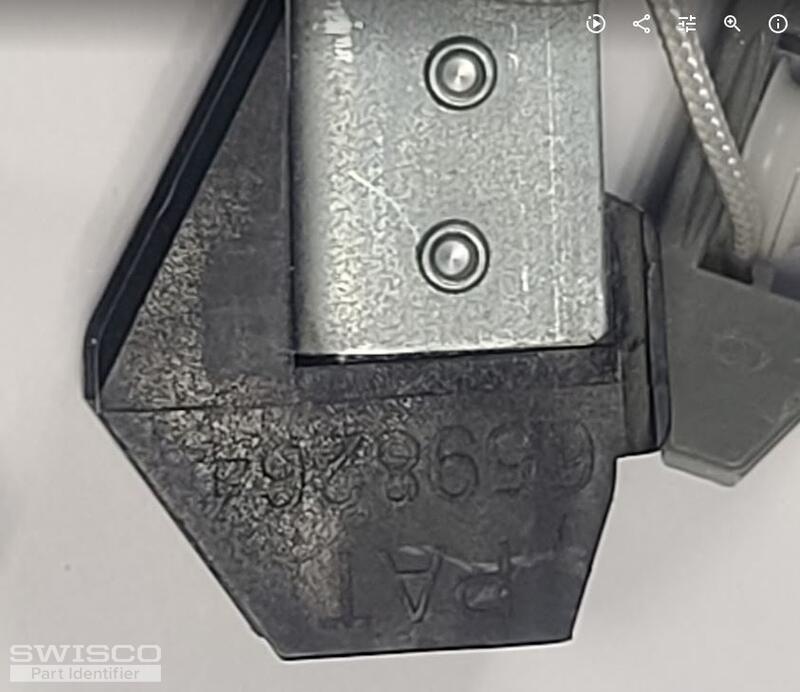

5 user uploaded images

Emily from SWISCO

Jul 2, 2024 9:13 am

I'm afraid we can't move forward without that clip. There are a few different styles but they aren't interchangeable. Is there an identical window in the house? If so, we can use that as a reference. Could you confirm the stamp printed on the metal channel? My apologies for missing that detail.

Handy Person from US

Jul 2, 2024 10:58 am

Hi,

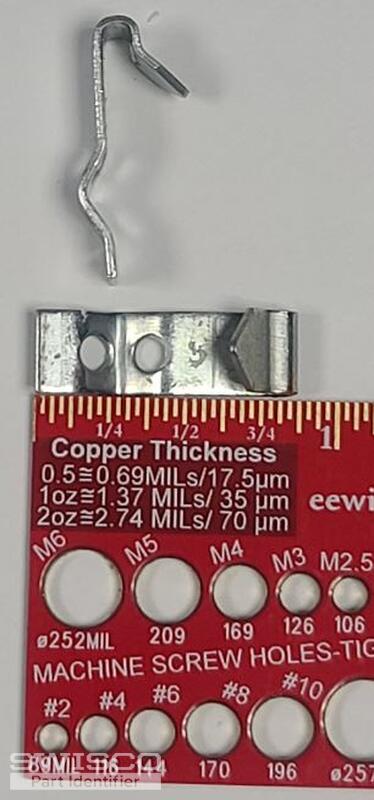

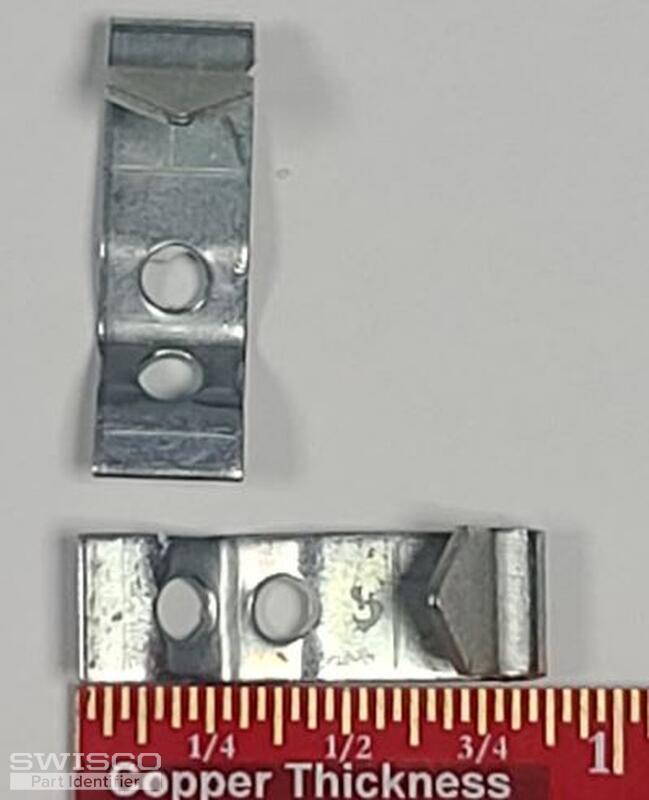

I was able to take the clips out of the window frame.
Please let me know if you need more information.

Thank you,

Victor

2 user uploaded images

Emily from SWISCO

Jul 3, 2024 2:54 pm

Thank you, Victor! Once you confirm the stamp on the metal channel, I can draft a price quote.

Handy Person from US

Jul 3, 2024 6:07 pm

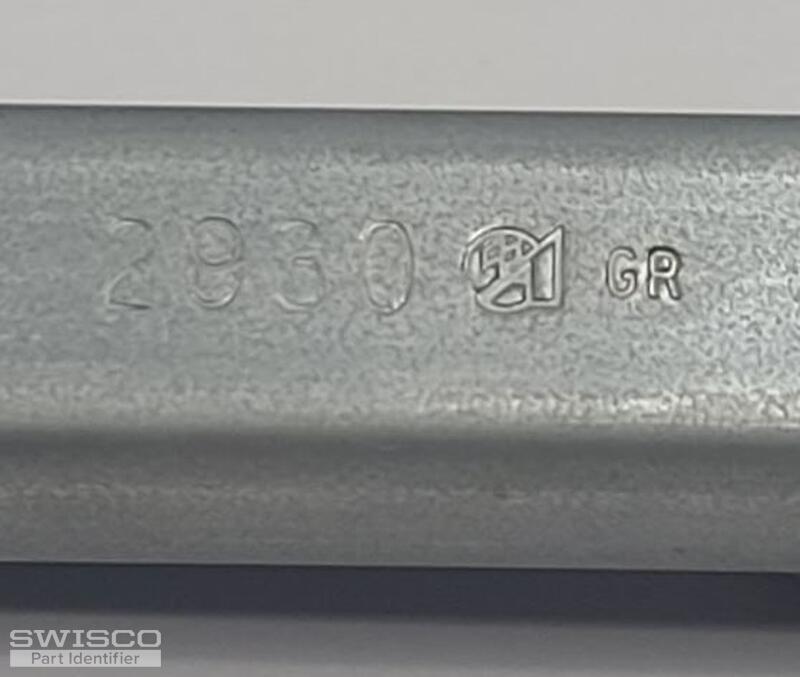

2930

1 user uploaded image

Emily from SWISCO

Jul 5, 2024 3:31 pm

Great, thank you! I'll go ahead and email you a purchase link for (2) that you can use to place an order on our website. Please note that there is a 5-6 week lead time and there's a chance it could take longer.

Let me know if you have any questions!
