I need a handle set for a storm door that includes mortise latch

Landlord from Medna, Ohio

Apr 22, 2023 10:17 pm

My door is an Emco serial number 5749512. It is 1 1/2 in. thick. I need the mortise latch and a set of handles that will all fit together. I prefer a black finish, or nickel if black is not available.

4 Replies

Emily from SWISCO

Apr 24, 2023 3:44 pm

Hello there!

Thank you for reaching out to us. I couldn't cross reference the serial number you gave us, unfortunately. In order to help, I would have to see photos of the mortise lock and handle set in question.

Landlord from Medna, Ohio

Apr 24, 2023 4:42 pm

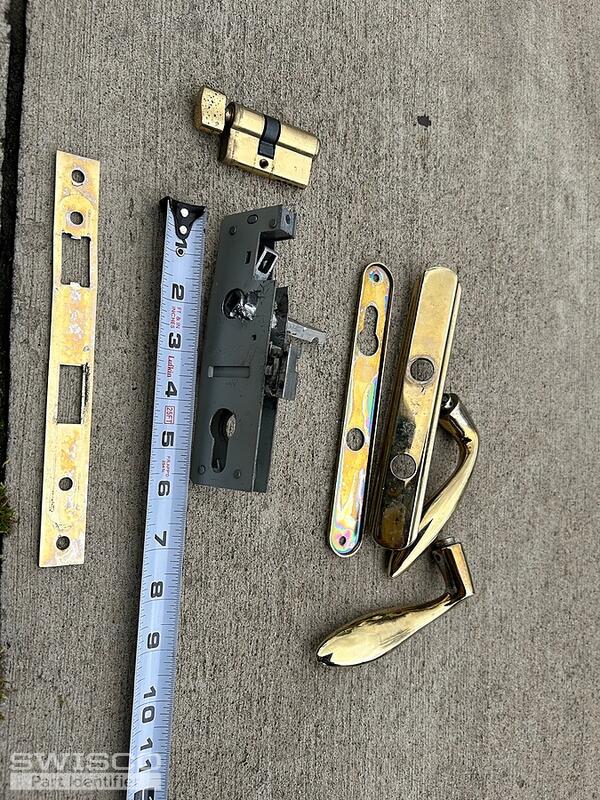

Please see attached.

1 user uploaded image

Emily from SWISCO

Apr 25, 2023 8:15 am

Thanks for the photos! Our 40-193 looks similar to what you have here but compare the specifications with yours and see how they match up.

However, please note that this part is designed for doors up to 1-1/4" thick. You would have to reuse the old screws, key lock, and spindle. Basically, anything that goes through the door.
