Contractor from NJ

May 28, 2025 4:41 pm

I need a new one, this one's broken.

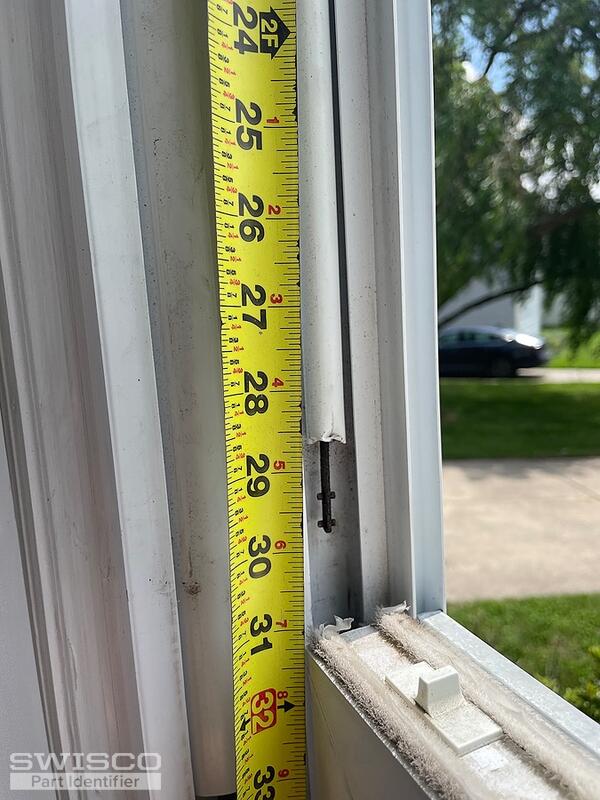

If not available, please suggest a system to match your analog (product code 26-129).Window sash length is 32''.

2 user uploaded images

6 Replies

Jasmine from SWISCO

May 29, 2025 10:09 am

Thanks for posting! The 26-129 is the best replacement option for the pivot bar you have here. It isn't likely the end of this pivot bar would be compatible with the shoe you have.

I'm happy to recommend a replacement for the shoe but I'll need to see a photo of it removed from the window. Please also confirm its width and thickness.

Feel free to reach out with any additional questions.

Contractor from NJ

May 29, 2025 10:46 am

Ok, I'll do it and send you the info. Thanks.

Jasmine from SWISCO

May 29, 2025 11:45 am

Okay, great! I look forward to hearing from you!

Contractor from NJ

Jun 1, 2025 6:33 pm

Size pivot lock shoe 1/2 thick,1-1/4 width

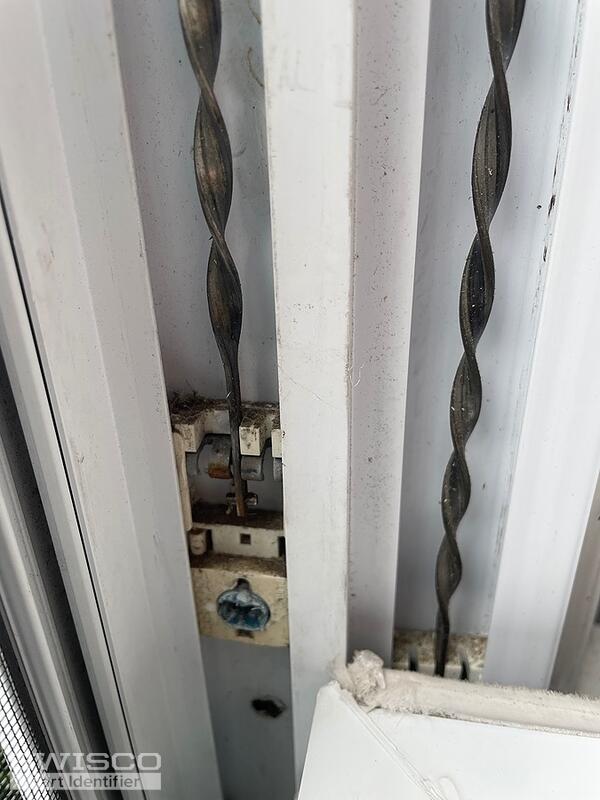

And I also need a spiral balance and Balance Installation Tool.Thanks

3 user uploaded images

Jasmine from SWISCO

Jun 2, 2025 9:39 am

Thanks for the additional photos. Your exact pivot shoe is no longer made and the substitute for it was recently discontinued. I believe our 15-188 Pivot Lock Shoe should work to replace it. You'll need to double check and compare them dimensions to be sure.

The rounded end of the 26-129 should fit into the cam on the shoe.

Alternate image for 15-188

I'm happy to recommend a replacement for the spiral balance you need. Although, I'll need to know the dimensions for the length and the diameter (should be either 3/8" or 5/8"), written out. Also, these balances do not appear to have a colored tip, so I'll also likely need to know the sash weight.
