I need channel balance and top sash guide replacement part numbers

Start a new Discussion

Quick Learner from Tulsa, OK

Feb 23, 2022 2:34 pm

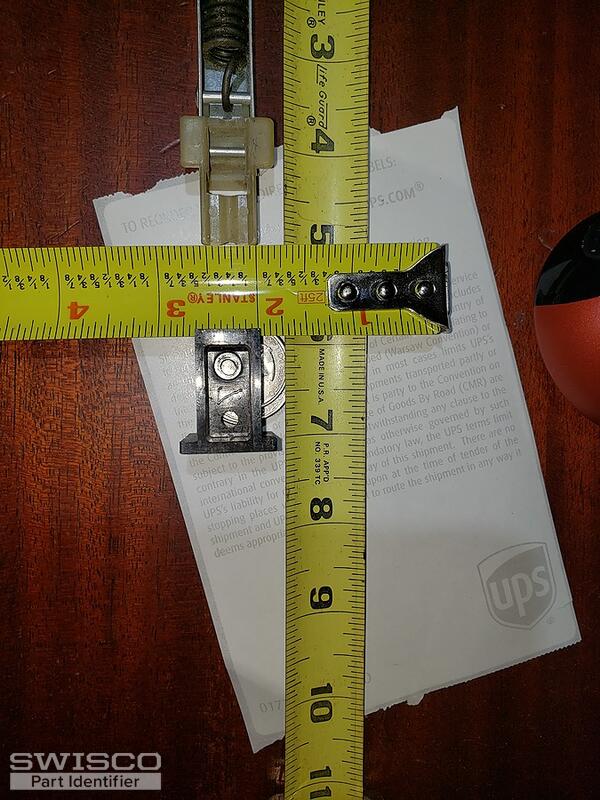

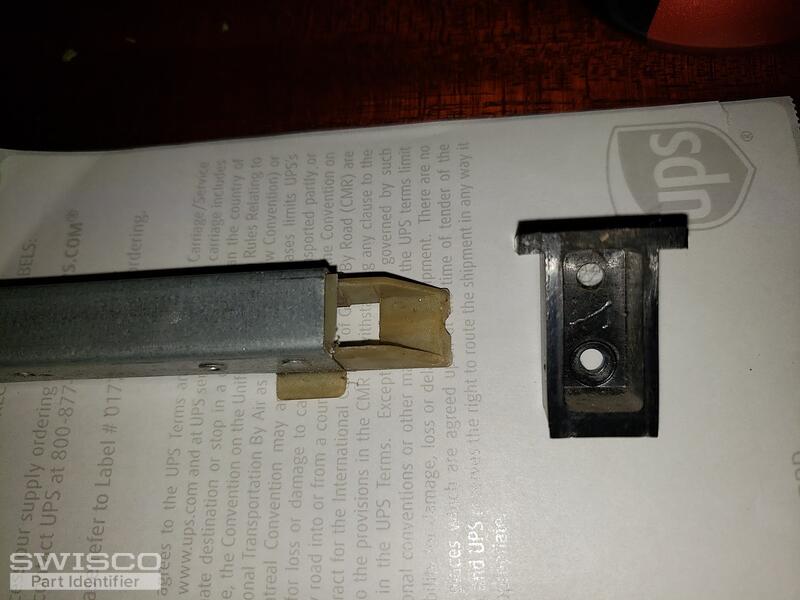

metal part is 28" end to end
stamped "a 2730"
Thanks

5 user uploaded images

4 Replies

Emily from SWISCO

Feb 24, 2022 2:55 pm

Hey there!

This looks like our S395-28 channel balance with the 2730 spring strength option. Look this over to see if you agree.

I'm not too sure about your top sash guide but I'm going to have one of our senior experts take a look and see if they could recommend a replacement for you. We'll reach out as soon as more information is available.

Thank you!

Quick Learner from Tulsa, OK

Feb 25, 2022 3:23 am

I think that's really close. I saw a top sash guide that looks right in the 395 page. Looks like probably an 18-174.
Thanks

Paul from SWISCO

Feb 28, 2022 7:57 am

We think the 18-174 should work as well. Best of luck with the repair!
