I need parts for my bifold doors

A handy person from Alberta Canada says:

Good morning,

Would you be able to help me out at getting parts for my doors

I have 4 set of doors that are 4 feet and 1 that is 5 feet.

I would like to buy the plastic caps for all of them.

the pins look like they are 5/16 and the swivel one are also 5/16 but are smaller at the bottom where the cap goes on.

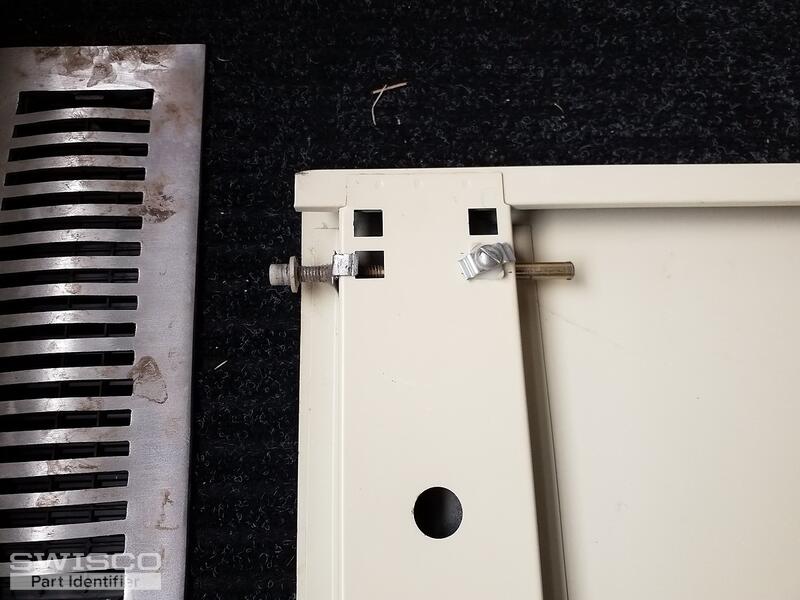

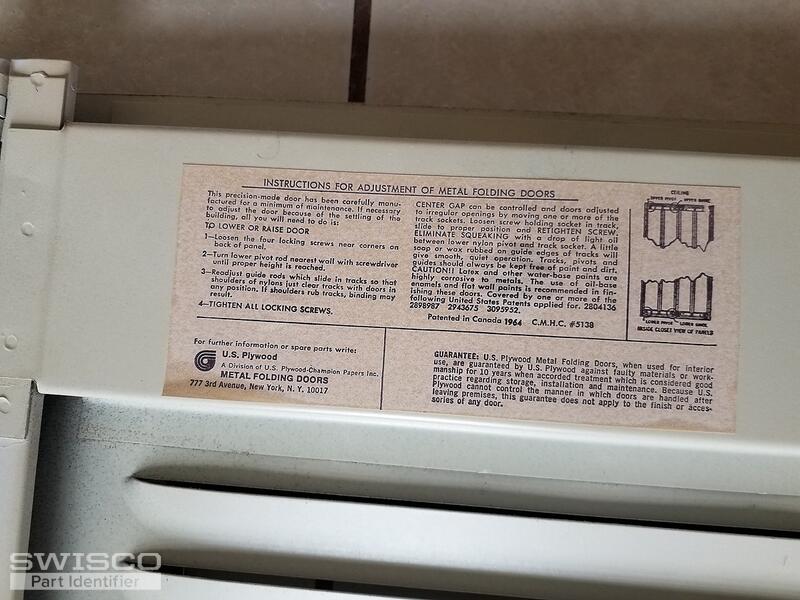

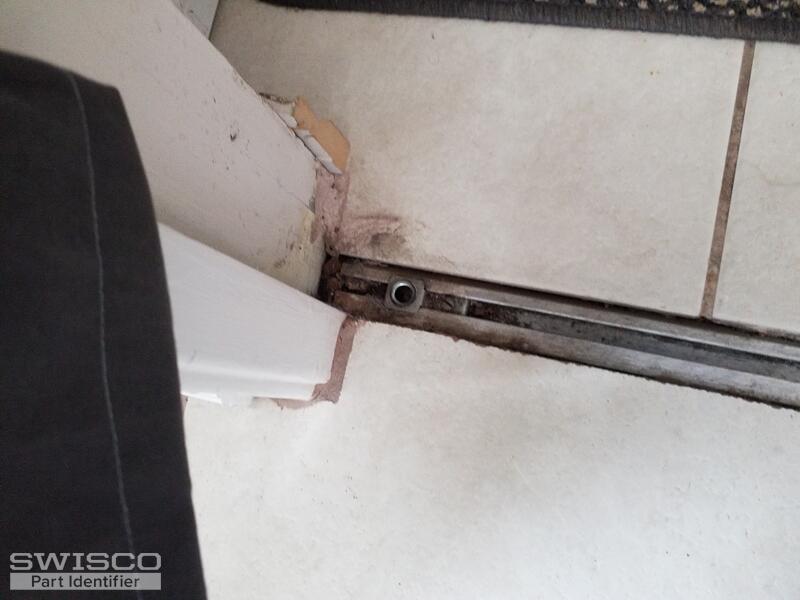

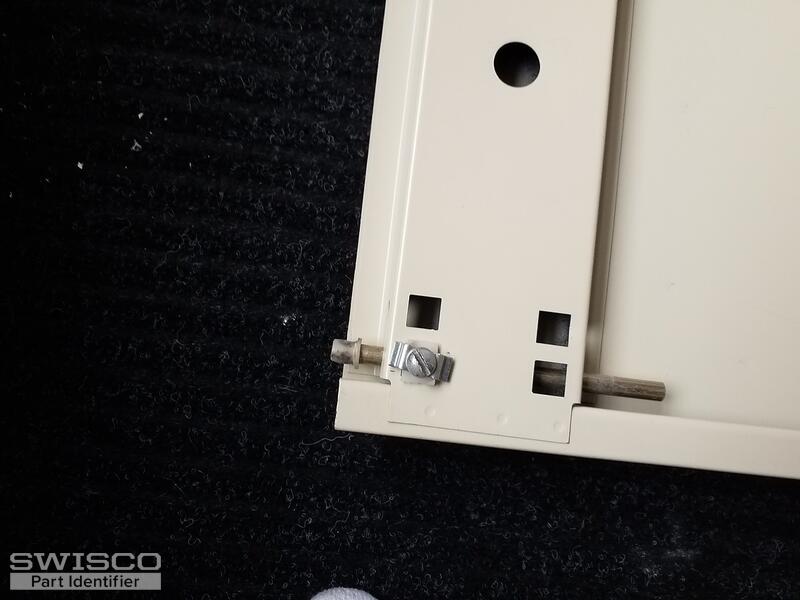

I have included a few pic hopefully it will help you out on selecting the parts.

Regards

Thumbnail of the uploaded file named 20210429_105742.jpg
Thumbnail of the uploaded file named 20210429_105728.jpg
Thumbnail of the uploaded file named 20210429_105723.jpg
Thumbnail of the uploaded file named 20210429_105707.jpg
Profile picture of Paul
Paul from SWISCO responded:

Hello,

You have older Slimfold bifold doors. We carry the parts for the newer style that will still fit your door. If you are replacing the tracks, take a look at our 21-402 (5') and 21-404 (4'). For the bi-fold pins, you will need one bottom threaded pivot pin, 21-001, and the other three will use the 21-007. We only have the replacement cap for the threaded pinm 21-106. Thank you!
