I need parts list for my windows, I think it's PSI I m not sure.

A quick learner from Nj says:
May 2, 2021

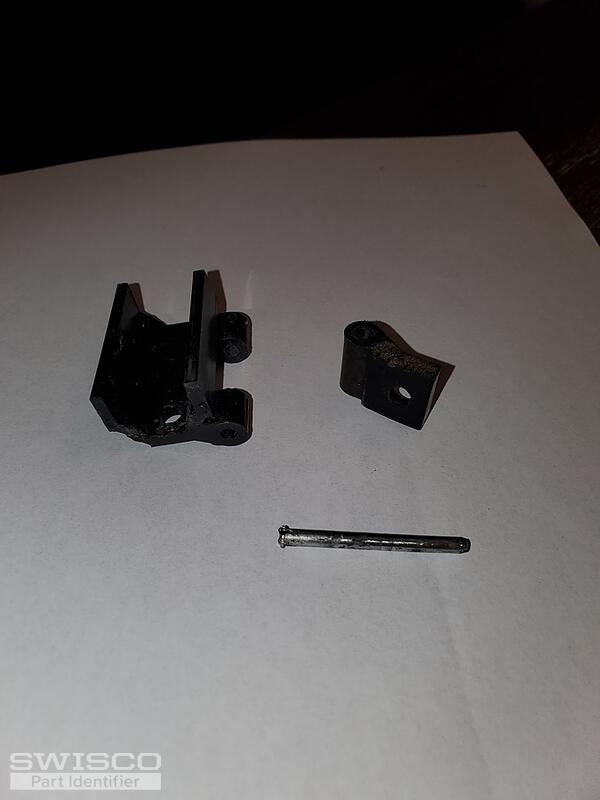

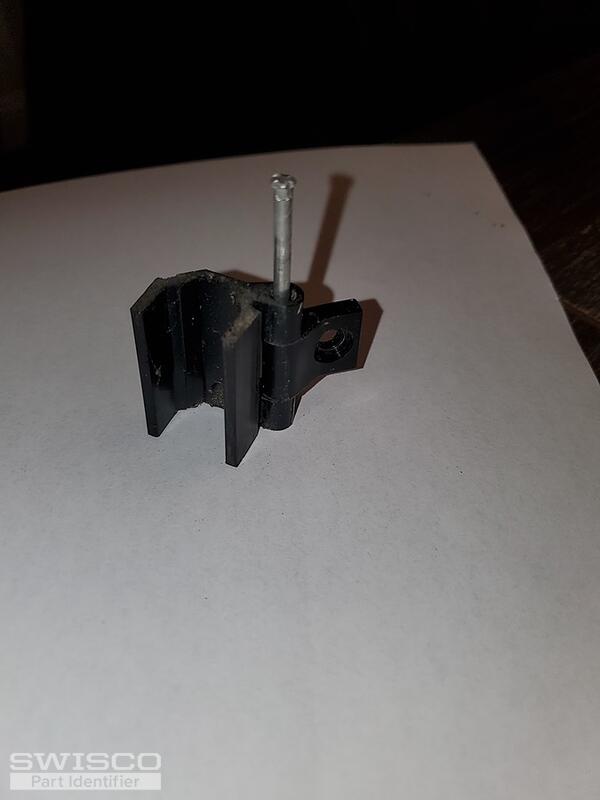

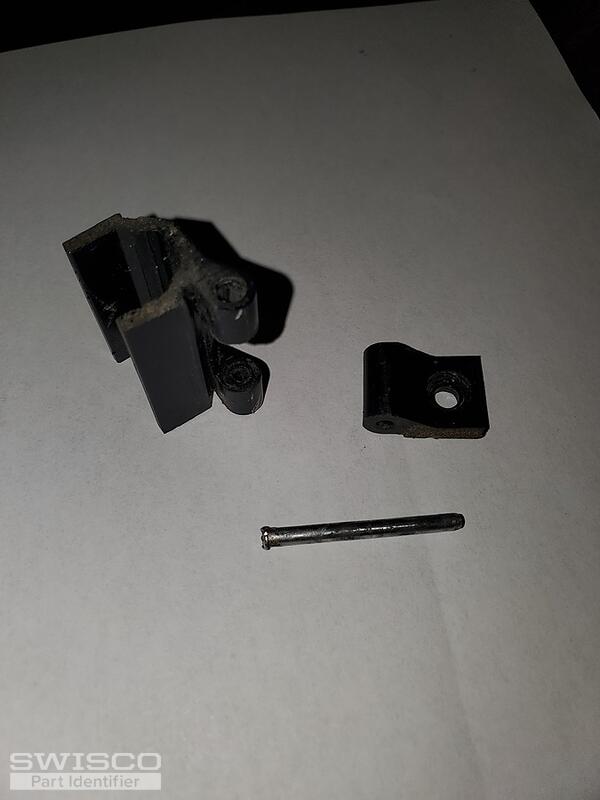

The 2 hinges in the side of the window broken and 10 windows need parts, springs and hinges if you can send parts diagram will be better.thank you

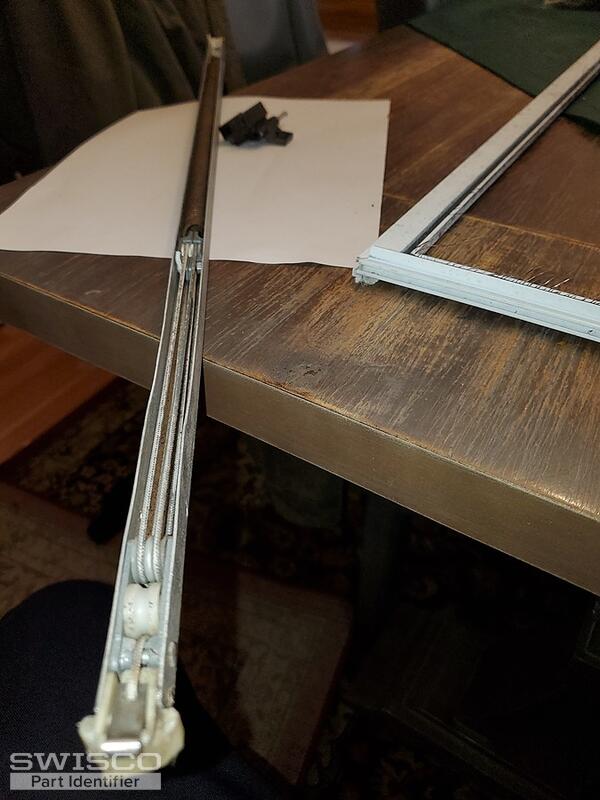

Thumbnail of the uploaded file named 20210429_174345.jpg
Thumbnail of the uploaded file named 20210429_174318.jpg
Thumbnail of the uploaded file named 20210429_174424.jpg
Thumbnail of the uploaded file named 20210429_174443.jpg
Thumbnail of the uploaded file named 20210429_174305.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 6, 2021

Thanks for reaching out to us. Your hinge looks like a match for our 15-058. Look it over and see what you think.

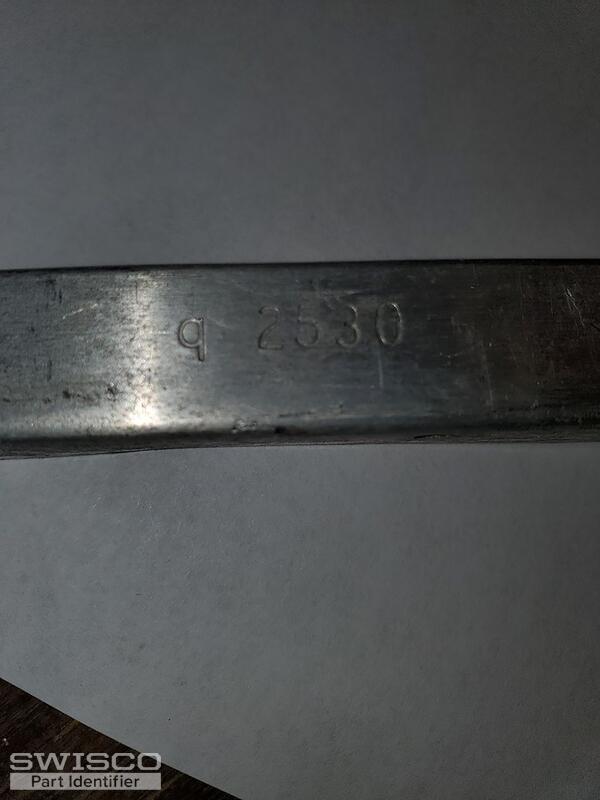

The balance is a special type that has to be custom made. These are actually kinda goofy. Basically, the balance on one side of the window is different than the other. For example, the one you're showing me here has a 19-008 top and 15-025 bottom nylon fitting and a stamp of 2530, but the balance on the other side will have a 19-008 top, NO fitting at all, and a different stamp entirely. It might be 2540, but I don't know for sure.

I'd like you to check the balance on the other side of the window and confirm for me. Please also tell me how many of each you need.
Hinge Leaf Assembly
Hinge Leaf Assembly
15-058
$2.95
