I need regalement parts for an American Standard window - pictures are attached

Handy Person from Florida
Nov 5, 2023 12:18 pm
I need regalement parts for an American Standard window - pictures are attached
IMG_0715 IMG_0717
2 user uploaded images
5 Replies
Lauren
Lauren from SWISCO
Nov 6, 2023 11:39 am
SWISCO
EXPERT

Hello, thank you for posting,

To further review, we will need to see the pivot shoe that the coil springs attach to in the window channel. From there we can confirm which series of coil balance your window uses for replacement options.

Handy Person from Florida
Nov 19, 2023 1:36 pm

Hi,

The additional pictures of the pivot shoe is attached

Richard

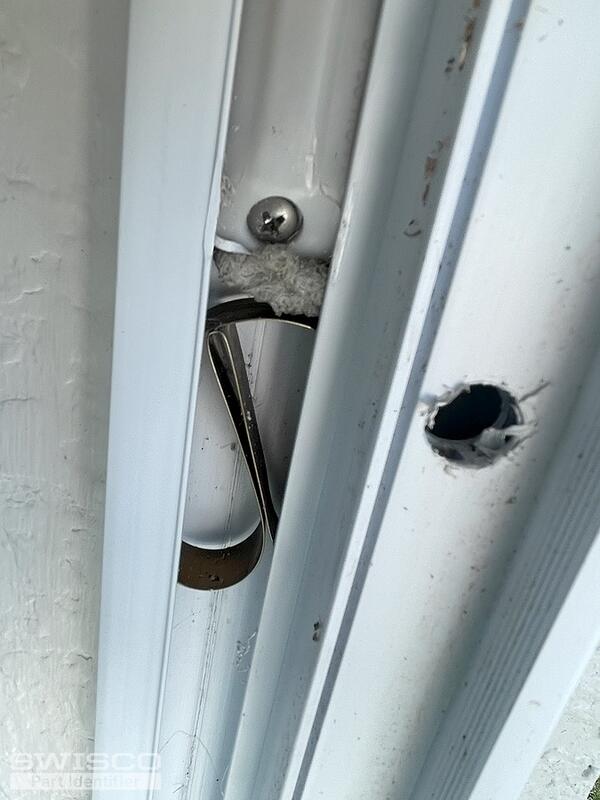

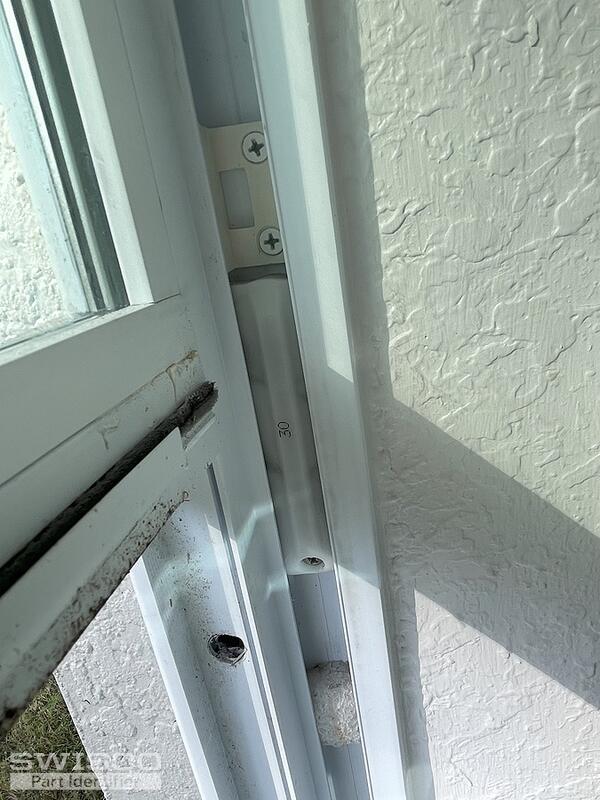

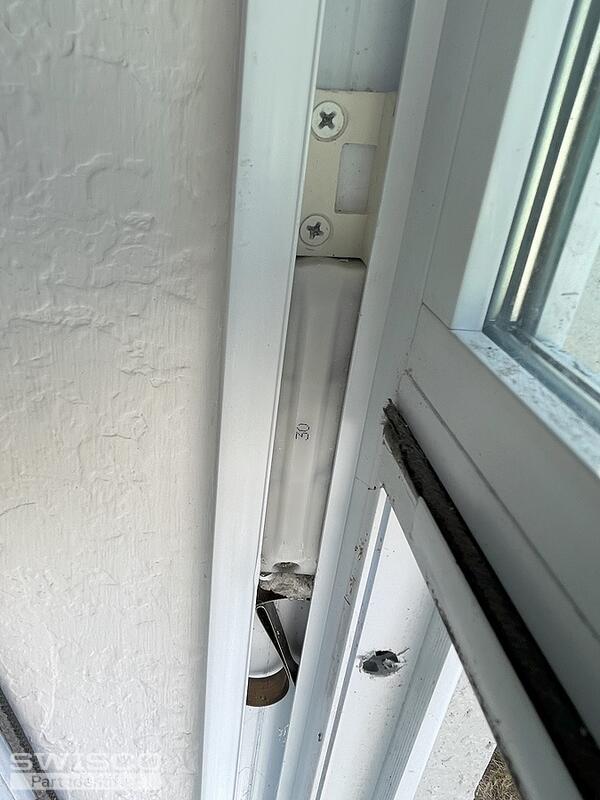

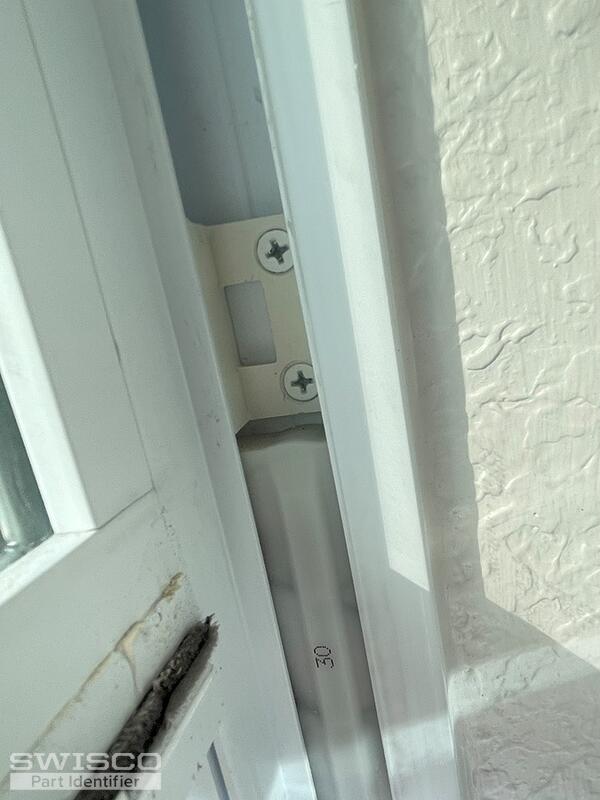

IMG_0828 IMG_0829 IMG_0830 IMG_0832 IMG_0833
5 user uploaded images
Lauren
Lauren from SWISCO
Nov 20, 2023 9:20 am
SWISCO
EXPERT

Hi Richard,

Unfortunately I cannot see the pivot shoe in these pictures. I have related a video below for an example of a pivot shoe. It may have fallen farther down in the window channel. Please also provide the thickness of the coil springs. Thank you!



Handy Person from Florida
Nov 25, 2023 1:07 pm
Hi,

The additional pictures of the pivot shoe is attached

Richard
Nov 23

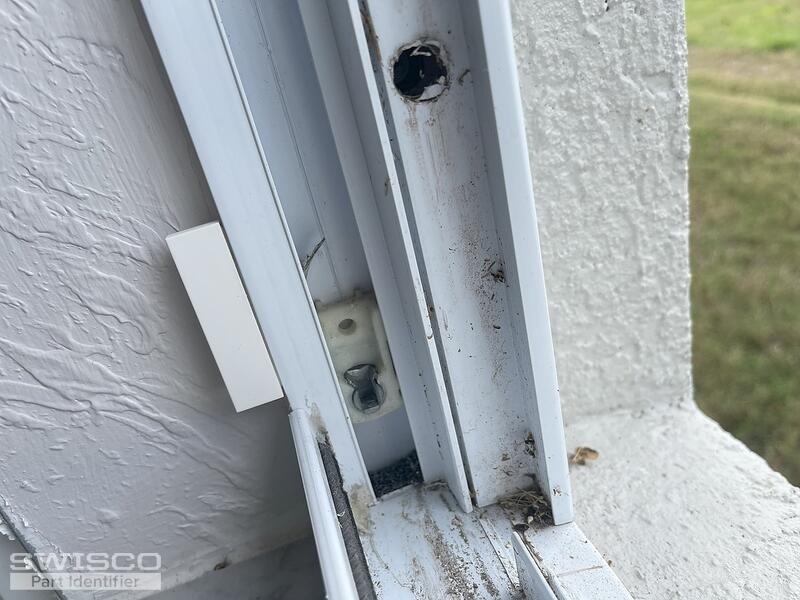

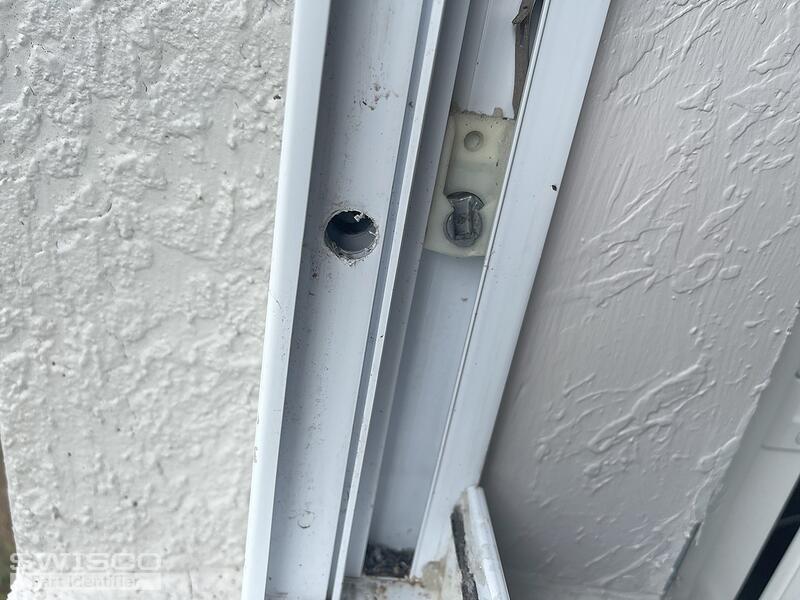

2023-1125 IMG_1300 2023-1125-1 IMG_1297
2 user uploaded images
Lauren
Lauren from SWISCO
Nov 27, 2023 9:25 am
SWISCO
EXPERT

Thank you,

Your pivot shoe resembles the 15-228 that is compatible with either the 1/2" thick Series 160 coil springs or the 3/8" thick Series 165 coils. Please review the dimensions below to confirm a good fit!

Dimensions for 15-228
Dimensions for 15-228

Please note that we do not carry a replacement for the bracket above the coil cover.

If you need assistance with choosing the correct weighted springs, please confirm the thickness of your original springs to move forward. Thank you!
