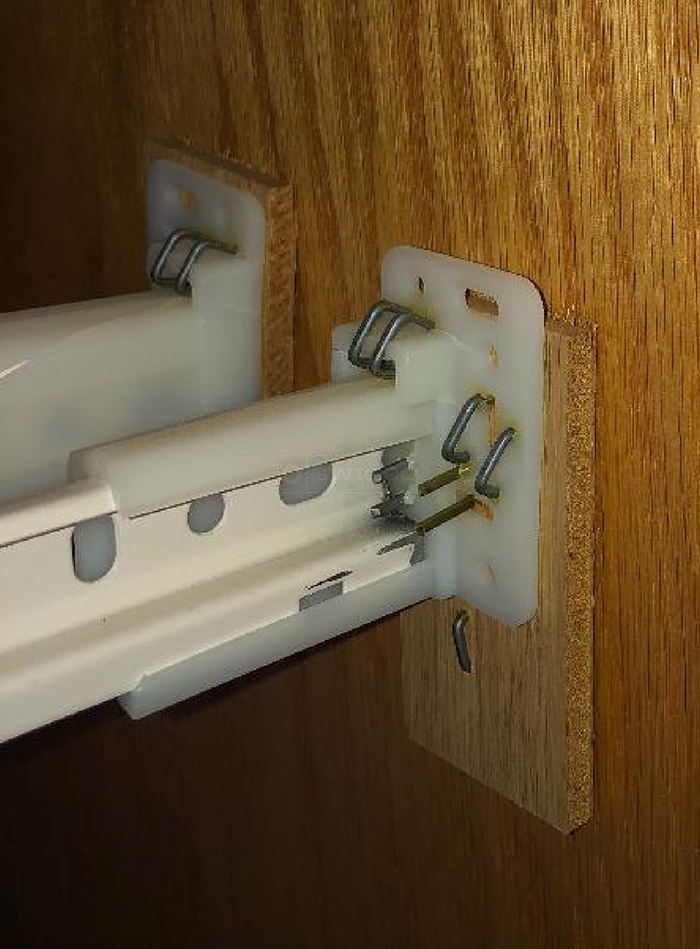

Here is a picture of what the sockets look like. I could not find any make or model information on the hardware.
I need some sockets like the ones in the attached image
Handy Person from Naperville, IL, USA
Apr 15, 2019 11:05 am
7 Replies
Bob from SWISCO
Apr 16, 2019 12:37 pm
Thanks for posting. Could you confirm the size of the opening that accepts the track? The correct option will depend on that measurement.
Handy Person from Naperville, IL, USA
Apr 17, 2019 1:48 pm
Hi Bob:
I measured the end of the rail and attached pictures of the rail and my measurement. If you can't read my handwriting, the rail cross section is 3/8 by 3/4 in with a 1/4 in tab.
Thanks for your help.
I measured the end of the rail and attached pictures of the rail and my measurement. If you can't read my handwriting, the rail cross section is 3/8 by 3/4 in with a 1/4 in tab.
Thanks for your help.
Bob from SWISCO
Apr 17, 2019 2:20 pm
Great, thank you! That makes things a lot easier. I was worried this would exceed 1", in which case we'd only have somewhat involved solution. But we don't have to think about that. Take a look at our 32-119. I think you could possibly use this as a replacement, but review our dimensions and let me know what you think.
Handy Person from Naperville, IL, USA
Apr 17, 2019 3:36 pm
Thanks. I will have a look
Bob from SWISCO
Apr 18, 2019 10:52 am
You know what, that's a totally relevant point that I should have caught sooner. In that case, I think you should consider our 32-089 instead. The opening is very nearly the same size as the 32-119 (1" x 3/8" vs 31/32" x 7/16", respectively"). The 32-089 does not slope like the 32-119 does, so I think this is the better choice for you. See what you think.
Handy Person from Naperville, IL, USA
Apr 18, 2019 11:04 am
The 32-119 looks like it should fit. The openings in the others are too small. I do have a concern, though.
The 32-119 socket is designed for the drawer to be on a slope so that it tends to slide shut. All of my cabinet drawers are level. I am concerned that the faces of drawers that I fix on the outside of the cabinet will not look straight.
The 32-119 socket is designed for the drawer to be on a slope so that it tends to slide shut. All of my cabinet drawers are level. I am concerned that the faces of drawers that I fix on the outside of the cabinet will not look straight.
