I need to add a lock to this door

Start a new Discussion

Home Owner from Cashmere WA

Aug 11, 2025 8:42 pm

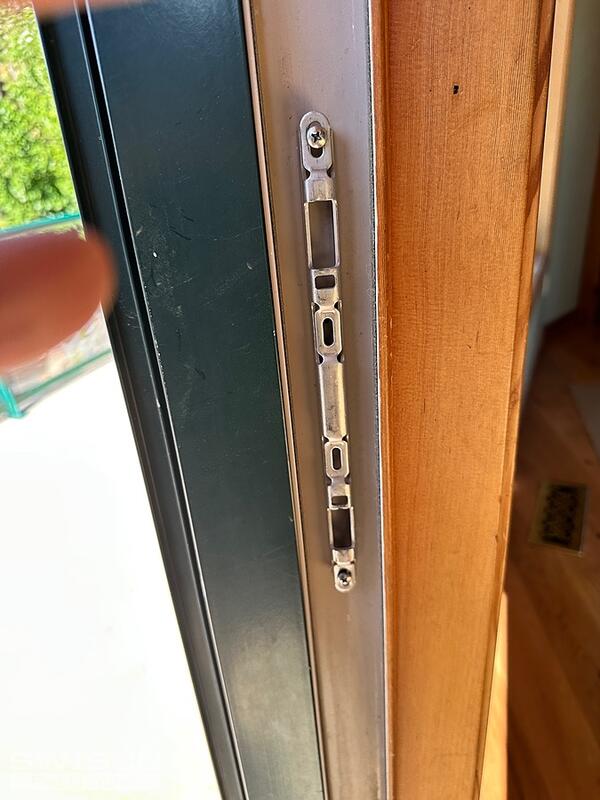

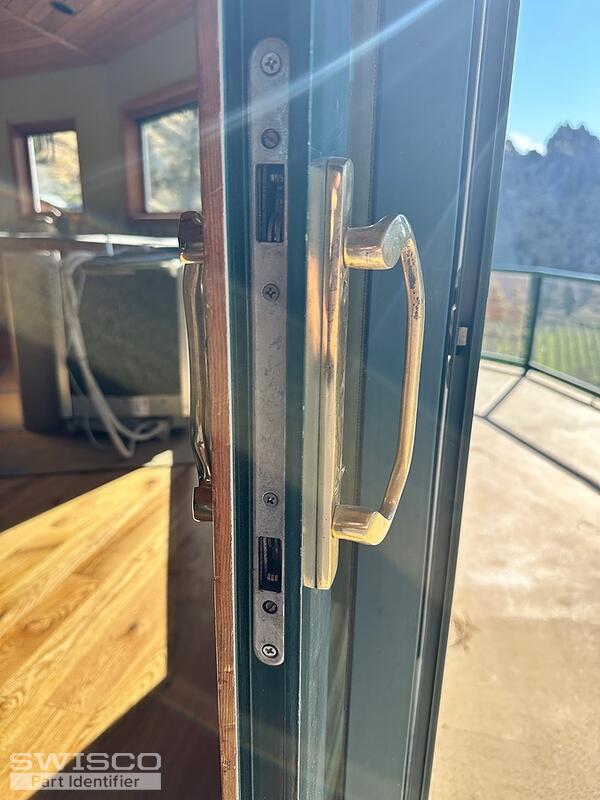

I assume I have to buy a complete new assrmbly since there is no hole for a lock.
I would like the same brass handles.

5 user uploaded images

4 Replies

Jasmine from SWISCO

Aug 12, 2025 10:47 am

This patio door handle set appears to have an offset latch like the 82-087 Legacy Keyed Handle Set. It is available in the brass finish shown here. Take a look over the specifications below to determine if this is the correct replacement match.

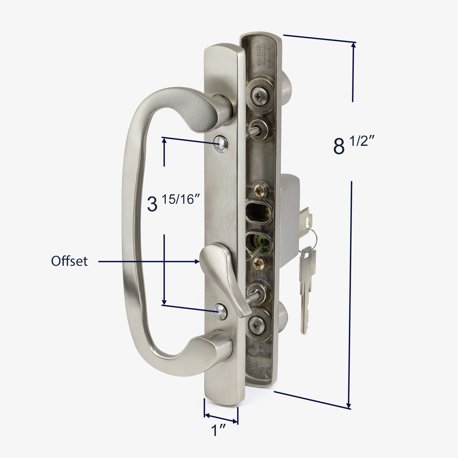

Dimensions for 82-087

Home Owner from Cashmere WA

Aug 12, 2025 2:13 pm

Looks good, other than the offset for the lever to open close is towards the top not the bottom

Jasmine from SWISCO

Aug 12, 2025 2:54 pm

You'll need to flip the handle so that the latch is positioned at the top rather than the bottom. The pulls are screw on the backplate so you can flip those as well, if needed.

I hope this helps!
