I need to order spring of the bathroom window

Home Owner from 17049 Branco Dr. Chino Hills CA 91709
Sep 25, 2021 1:47 am

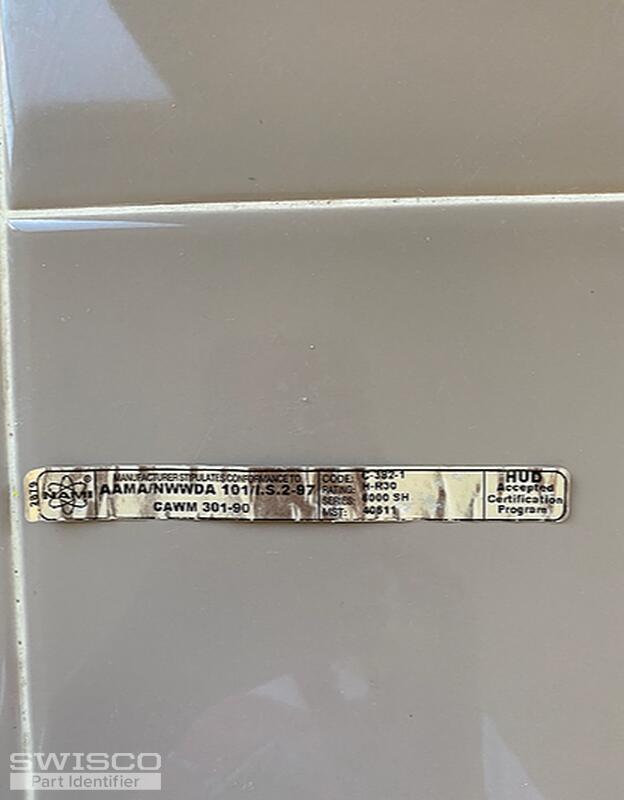

My rental property second floor bathroom window spring is broken, I dont know which spring I need to buy, the manufacture is AAMA, please see the picture. Would you please let me know what spring shall I order? Thank you very much.

Winnie

IMG_7621[1] IMG_7622[1] IMG_7631[1] IMG_7633[1]
4 user uploaded images
1 Replies
+ Add a Comment
Casey
Casey from SWISCO
Sep 30, 2021 12:48 pm
SWISCO
EXPERT

Hello,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to locate the stamp code on your metal channel to choose the corresponding strength option.

Thank you and let us know if you have any other questions or concerns.


Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
