I need to replace casement window operators on three windows.

A quick learner from RI says:

Following information from windows.

NFRC 100 047-97

Code Hill-280-1

Spec NFRC

Series CL Case

MST 280-M006,7,14,15

I would like to replace both right and left operators on one casement and left on another casement. I can provide more pictures.

Thank you,

Ben

Thumbnail of the uploaded file named DSCN3076.JPG
Thumbnail of the uploaded file named DSCN3077.JPG
Thumbnail of the uploaded file named DSCN3078.JPG

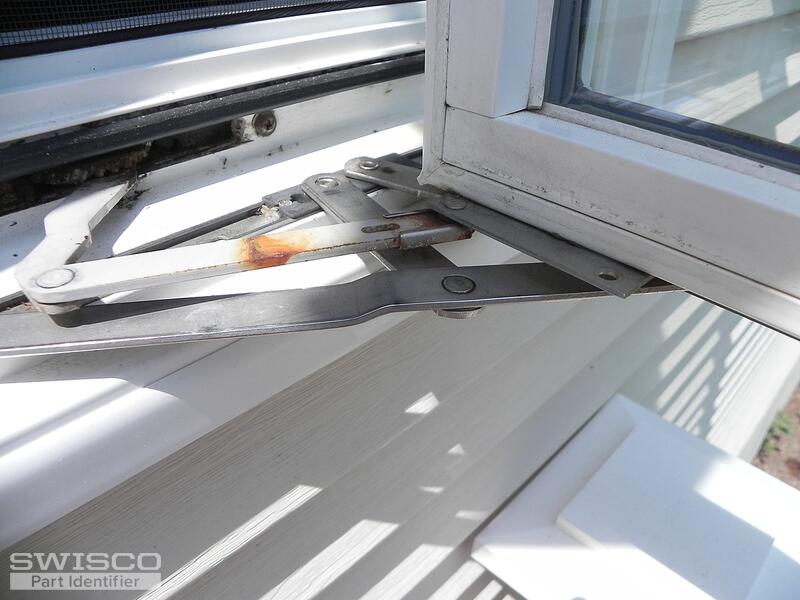

Thumbnail of the uploaded file named DSCN3079.JPG

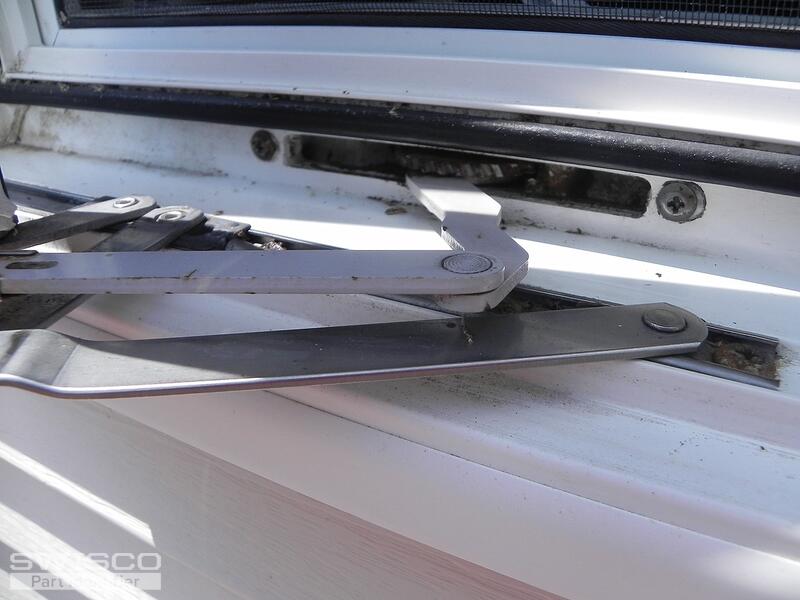

Thumbnail of the uploaded file named DSCN3080.JPG
Profile picture of Emily
Emily from SWISCO responded:

Hi, Ben.

This looks like a good match for our 39-187 and 39-188 operators. Compare our dimensions with yours to confirm they match up for what you need.

A quick learner from RI says:
It looks correct. My only question is how to connect the end to the window? When I look at the end on my window it seems to be connected with a rivet. I'm referring to the metal hinge end not the crank end.

Thanks
Ben

Profile picture of Emily
Emily from SWISCO responded:

To remove your stud bracket, you'll need to pop the detach clip back with a screwdriver which will let you slip it off the peg. I know it's riveted in but you should still be able to remove it this way. It'll just be a bit awkward to get to, since the hinge is in the way.
