I need two sets of non-locking PGT sliding glass door pull handles

A handy person from Pompano beach Florida says:
January 24, 2021

I am in need two sets of non-locking PGT sliding glass door pull handles

To whom it may concern

These doorhandles will need to be black

I have two similar locking mechanisms one is a 2320 Dash 10 S hook up alignment keeper. The other is a 32439 hook up alignment keeper both of them are secured to a trim plate. The latch face trim plate measures five and three-quarter inches long and 1 inch wide around a half an inch deep

The black pull handle set measures 8 1/2 inches long by 1 inch wide

The door keeper is 4 inches long and three-quarter inch deep

Below the door keeper is a single rubber bumper which measures approximately three-quarter inch diameter and a quarter inch thick I would need 2x of these

The distance between the two bolts which secure the handles through the sliding glass door are 4" inches apart

Please let me know what you recommend best regards Darius

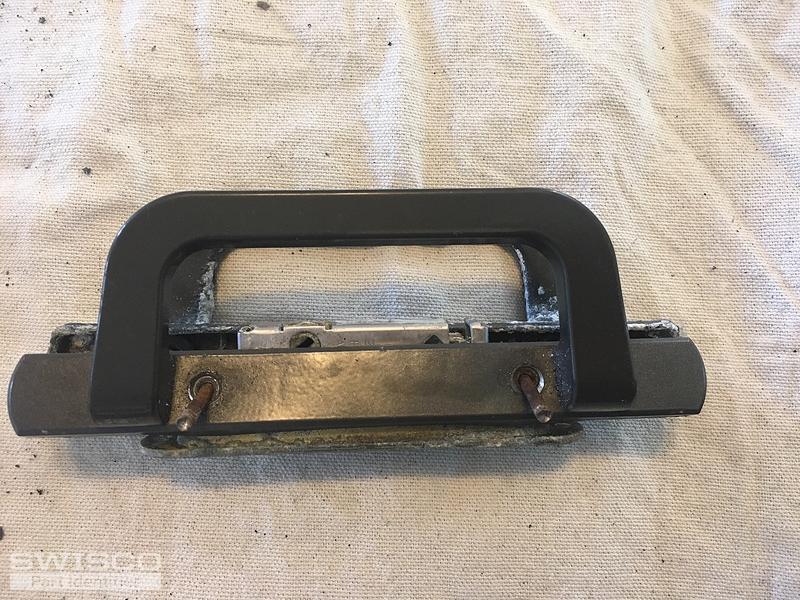

Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Tom
Tom from SWISCO responded:
January 26, 2021

Please see our 82-030 handle set, 82-229 mortise lock, and 89-020 keeper. I think these parts will work well on your door.
A contractor from FL says:
September 19, 2023

My name is Daniel. I am a contractor here in Florida. I ma looking for 7 Locks and 9 Door handles, model number is 32439 HOOK UP - Align keeper, has to be all black.

Please get back to me ASAP. The home owner will travel by Monday, Sep.25, 2023. I need to fix this before he goes way.

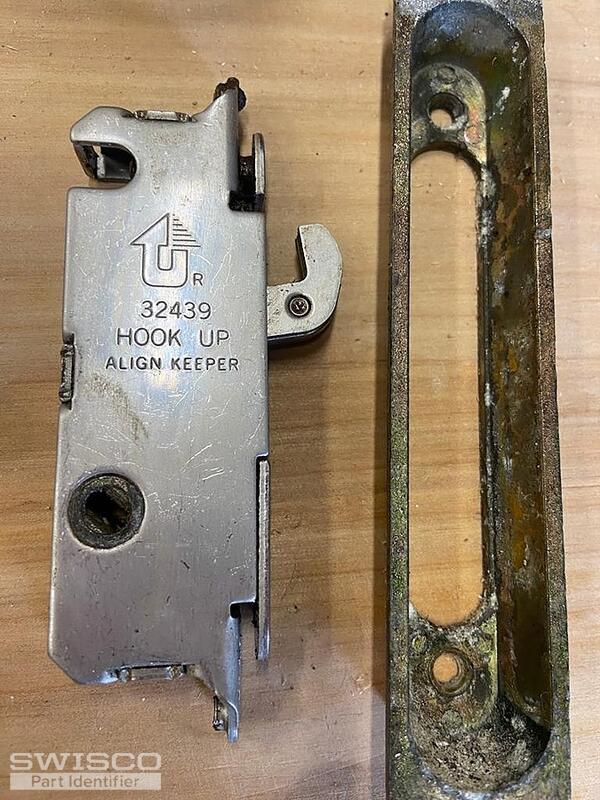

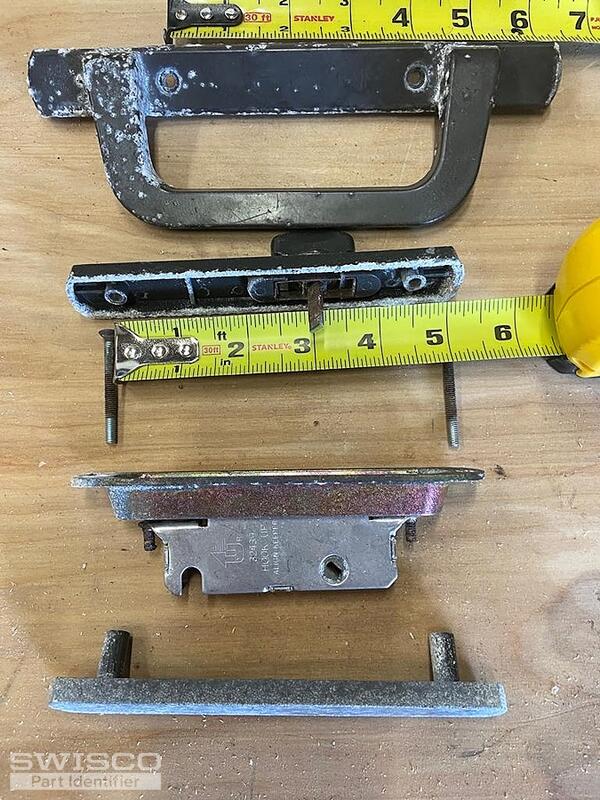

Thumbnail of the uploaded file named 3ccdd72c-58d4-47d9-bf4b-0ccf88cef6c8.jpg
Thumbnail of the uploaded file named 726314d3-1f9e-490f-b3af-c4f332675edc.jpg
Profile picture of Tom
Tom from SWISCO responded:
September 21, 2023

Hello, Daniel. This appears to be the same style handle set as shown above. Have you reviewed the parts I suggested back in 2021? If not, I highly advise that you do so. Our 82-030 still looks like our best match for the handle set, and the same goes for our 82-229 for the mortise.
Sliding Patio Door Handle Set, 3-15/16"
Sliding Patio Door Handle Set, 3-15/16"
82-030
$29.95
Mortise Lock With Pocket Trimplate
Mortise Lock With Pocket Trimplate
82-229
$15.49
3/4" Tall Silverline Door Keeper
3/4" Tall Silverline Door Keeper
89-020
$6.07
