I was about to replace a window, unaware of the ability to fix it. I can't find the manufacturer identifiers on it. One of the balancers is broken and I intend to replace both and possibly do 2 other windows while I'm at it. It looks like I need S390-34 but I wanted to defer to your expertise before ordering. I believe the 3360 version for the weight. The length of the metal is 34" and it's 1/2 wide. Window is approximately 40 X 72. The part is labeled 33 6 BV CMC 2. Those appear to be the only markings on it
I'm ecstatic to hopefully avoid replacing this window. I know very little about windows but I can figure stuff out.
I need window balancers please
Home Owner from Portland, OR
Apr 1, 2024 8:01 pm
5 user uploaded images
4 Replies
Jasmine from SWISCO
Apr 2, 2024 10:28 am
Thanks for posting! I am confident we can supply you with the replacement balances you need but I'll need just one more detail to confirm if the Series 390 balance is the correct replacement.

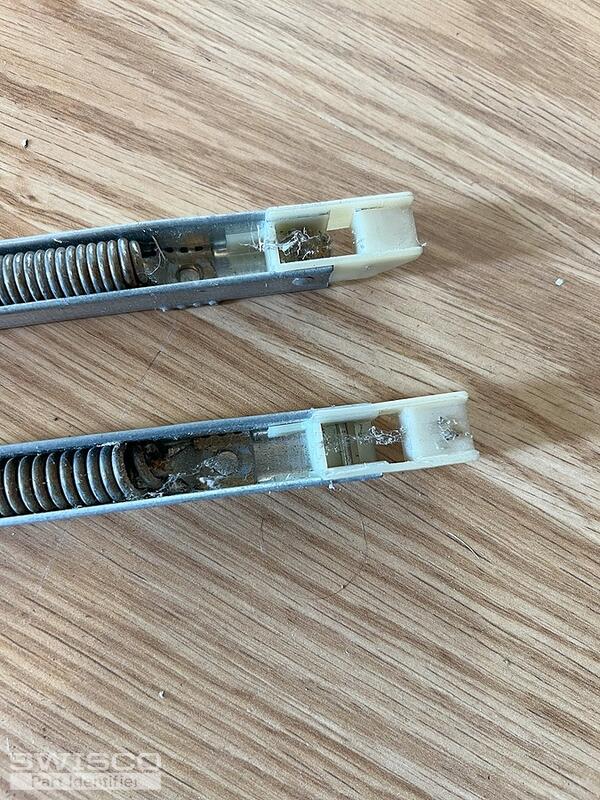

I'll need to see a photo of the pulley and spring and how it is assembled in the middle of the balance. May I see a photo of the entire balance spring in one photo?
Home Owner from Portland, OR
Apr 2, 2024 11:34 am

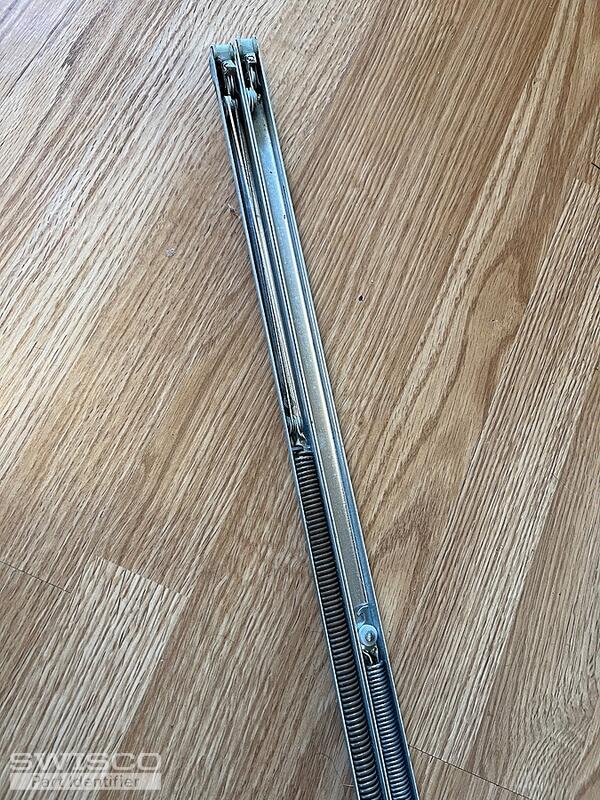

Funny, I figured you'd want to see this, but I was limited to 5 pics and this one didn't make it. Ones broken and the other not for reference.
1 user uploaded image
Jasmine from SWISCO
Apr 2, 2024 12:47 pm
Thanks for the photo! The Series 390 should be a suitable replacement for your existing balances, so long as the depth of your bottom shoe is 1-1/8".
As you mentioned, you'll need the 3360 stamp option but you may want to obtain the exact weight of your sash to confirm that it does fall between 32 to 35lbs.

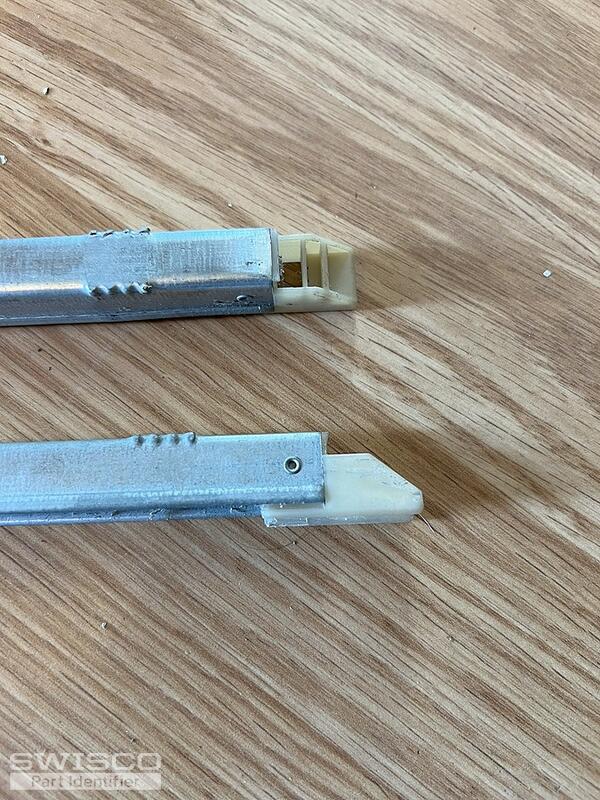

Close up view of the S390 balance shoe.
