ID replacement for sash operator

Home Owner from Napa, CA

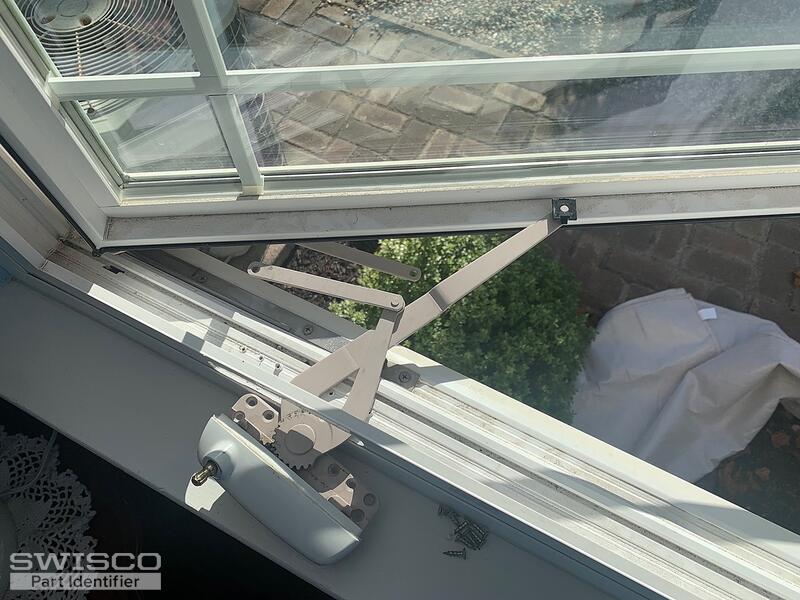

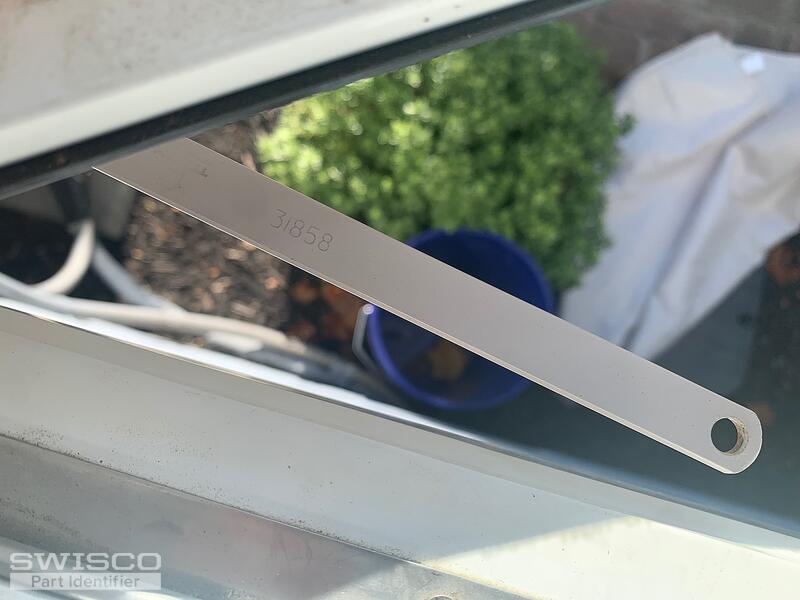

Milgard logo on crank handle. Number 31858 stamped on lower arm (not one of the arms on the "dimensions" photo, but shown on "all parts" photo and closeup. Date and time shown on underside of unit -- 08/25/00 10:28. House was built in 1952; so window has been updated since the, but before our arrival in 2018. I hope there is a standard operator to fix my problem, including the 5/8" square plastic part at the end of the long arm that mates with the channel on the bottom of the sash frame.
5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your operator resembles the Encore 39-253RB, which uses the 39-276 handle with cover. We also carry the 39-253LB opposite-handed version and 39-375 handle with cover. Both parts use the 39-29 track slider. Take a look and let us know if you need anything else. Thank you!

Dimensions for 39-253RB
Dimensions for 39-253RB

Alternate image for 39-529
Alternate image for 39-529

Alternate view with measurements
Alternate view with measurements
