IDENTIFY Coil Balance Spring

Quick Learner from SoCal

Mar 14, 2023 1:24 pm

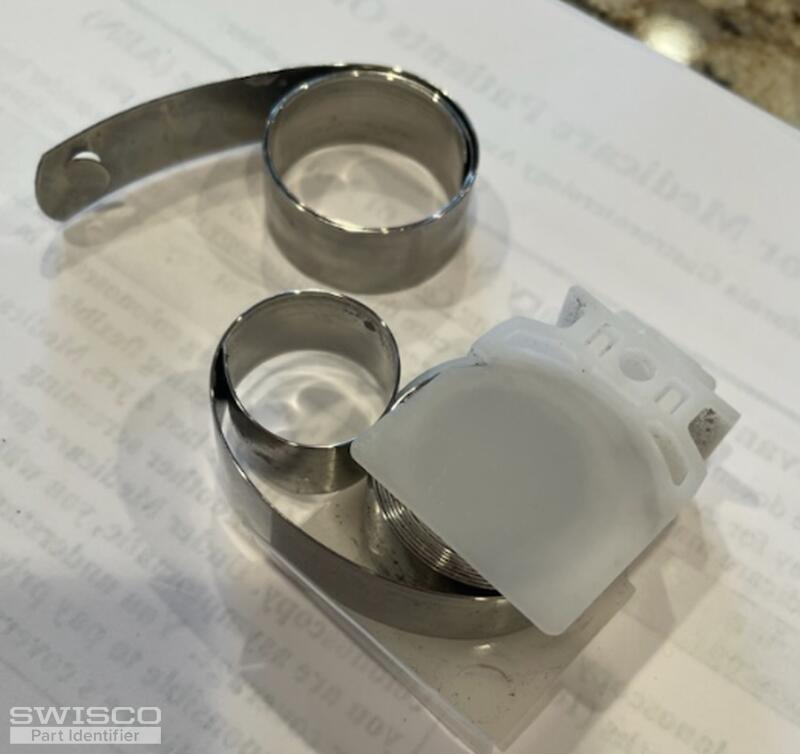

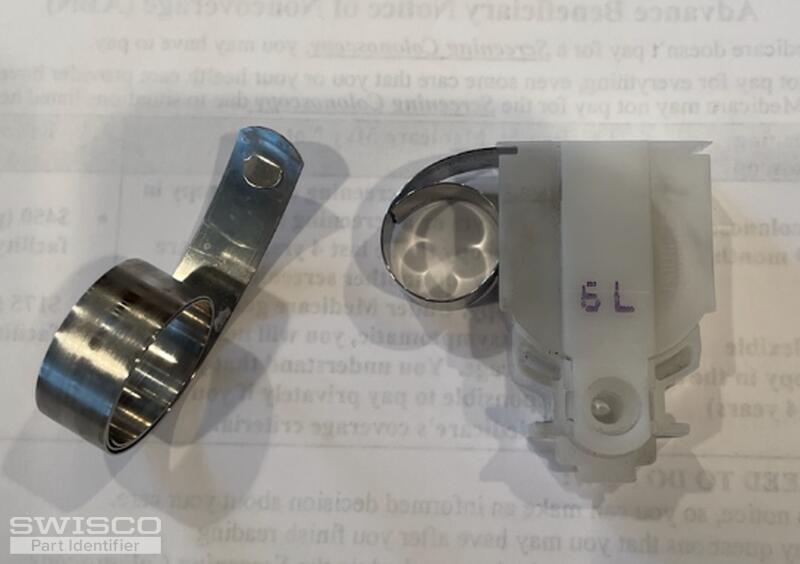

Spring snapped in two. See two pictures.

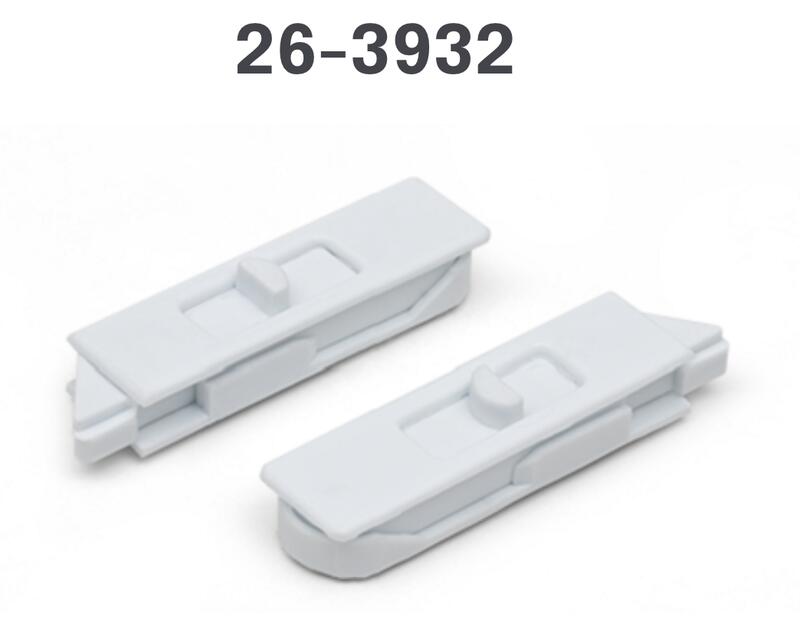

Also latch right side button has broken off. Third pic was taken from your site. looks like what i need.

3 user uploaded images

6 Replies

Emily from SWISCO

Mar 15, 2023 9:47 am

Hello there!

Thank you for reaching out to us. I'm afraid we don't have a tilt latch under the product code in your last photo. However, our 26-393 looks similar. See if the dimensions match up with your old latch.

We can help with the coil spring but we'll need to see a photo of the pivot shoe so we can identify the compatible coil balances.

Quick Learner from SoCal

Mar 15, 2023 10:25 am

Hi, What about the spring?

2 user uploaded images

Emily from SWISCO

Mar 15, 2023 10:33 am

I can't identify what springs you have from these photos. I would need to see a photo of the pivot shoe. If we can identify the pivot shoe, that will tell us the coils and accessories that you'll need.

Quick Learner from SoCal

Mar 15, 2023 2:07 pm

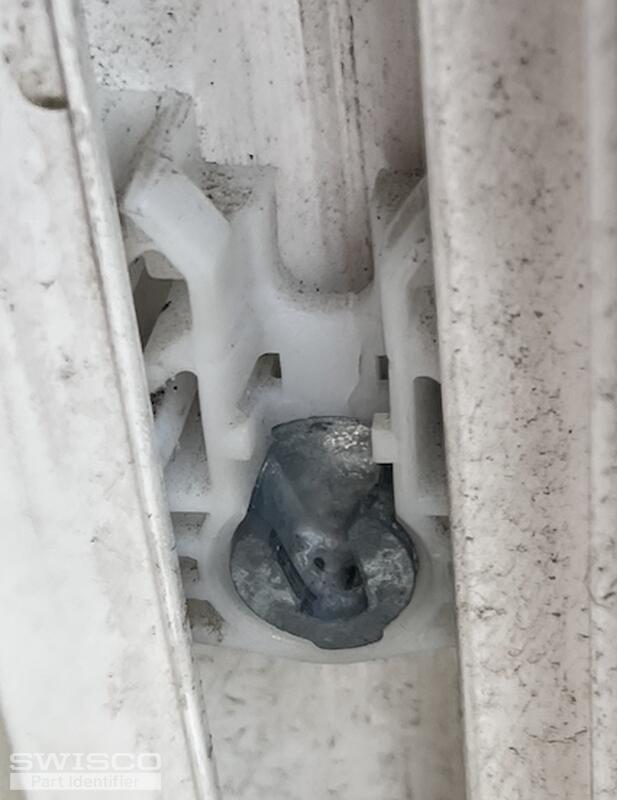

Here is the pivot shoe picture.

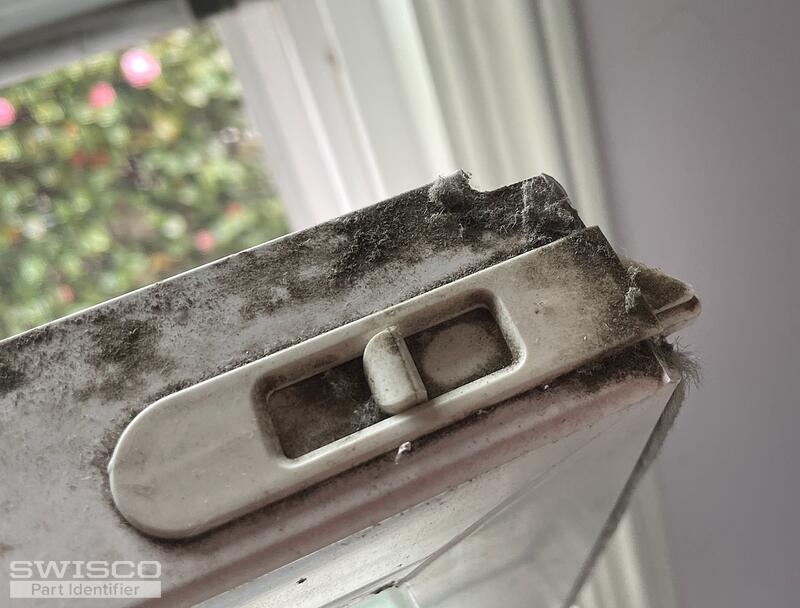

Also included the picture of the Tilt latch just to be sure of which one to order.

Please excuse the dust......

2 user uploaded images

Emily from SWISCO

Mar 15, 2023 3:33 pm

Thanks for getting back to me! Our S140-6 looks like a match based on what you show in these photos. I'm not sure that the 26-393 is what you need now that I see your original latch, however. This reminds me more of something like our 26-243 and 26-244. I recommend you remove an undamaged latch and compare the dimensions with yours to see how they match up.
