Identify Balance Replacement

Quick Learner from Ridgecrest, Ca

Dec 31, 2021 7:47 am

Length 27 inch
W 1/2 inch
D 5/8 inch

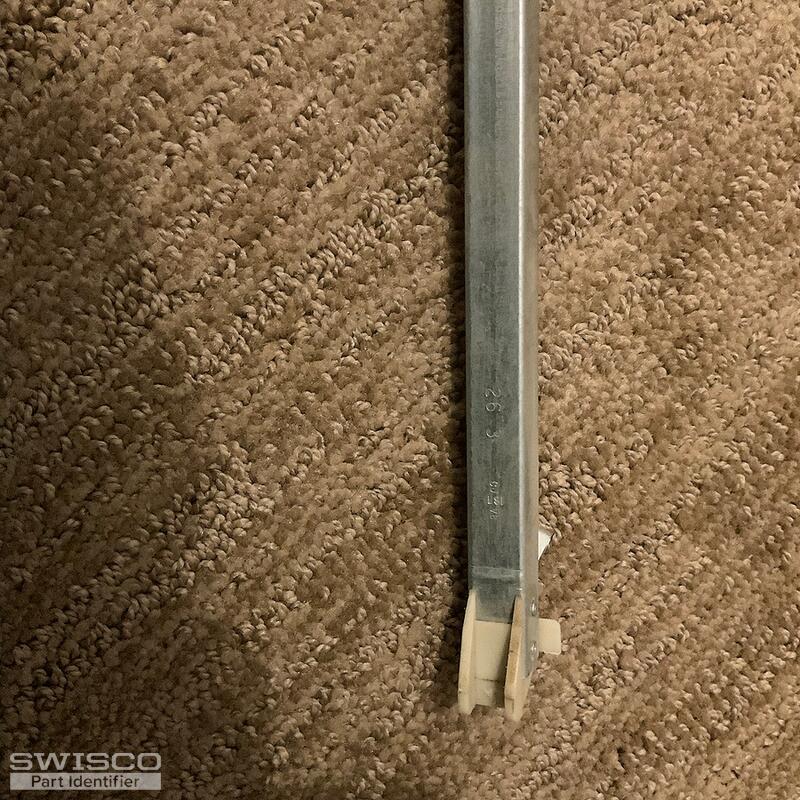

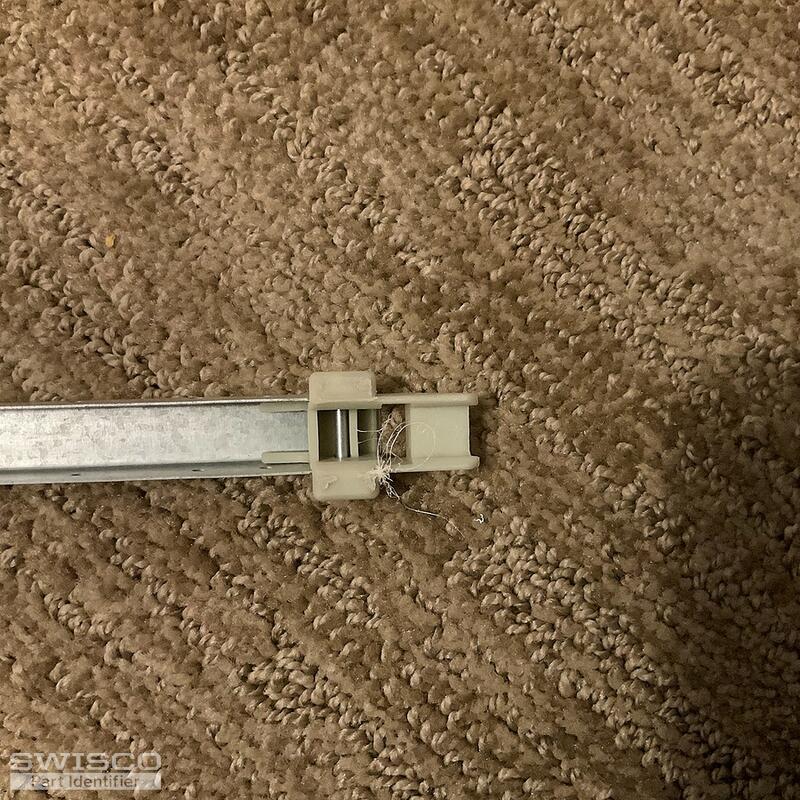

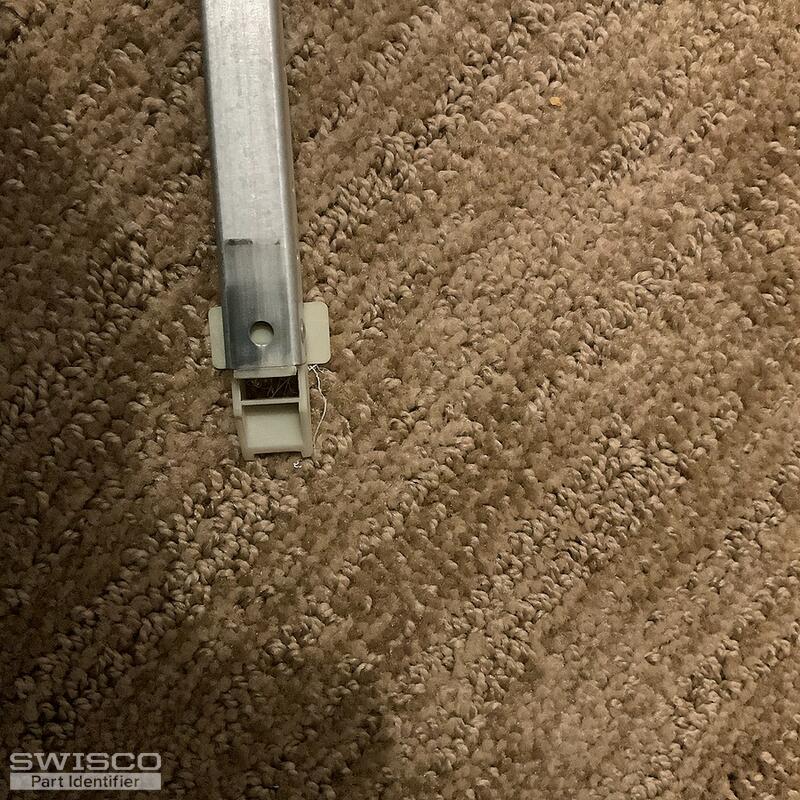

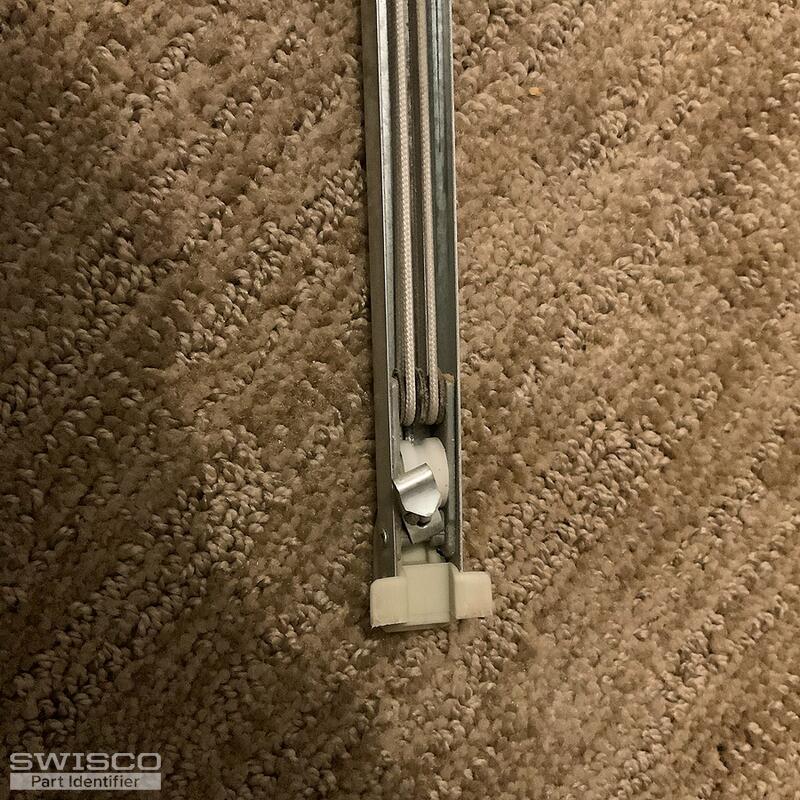

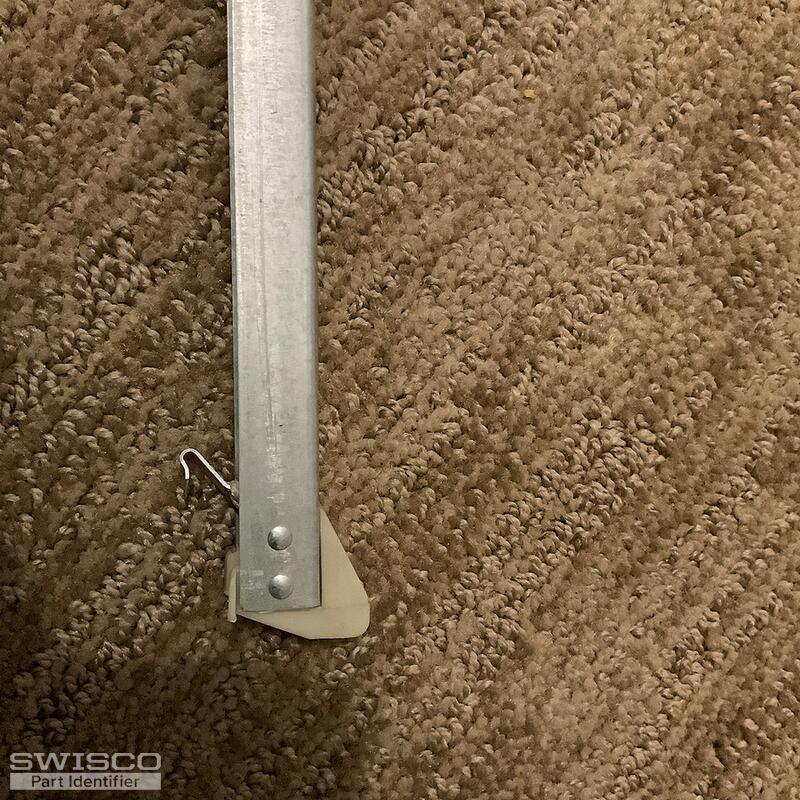

almost identical to first inquiry, but it has a different marking.

09759F92-8336-40BB-AF7A-2002BE322052

42570F61-653B-4E54-B9FD-D5C955B3C1BF

3006F98F-A36F-4405-BFEA-015A453B71AA

79E76ED9-A76C-43D8-92F6-6774999931CD

22C7FFF8-2617-431D-8511-0F273D7C5B7B

5 user uploaded images

1 Replies

+ Add a Comment

Casey

Casey from SWISCO

Jan 4, 2022 10:07 am

SWISCO

EXPERT

Hello,

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2630 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.

Comparison of the S380 and S385 balance shoes.
