Identify Window Balance

Home Owner from Southern California

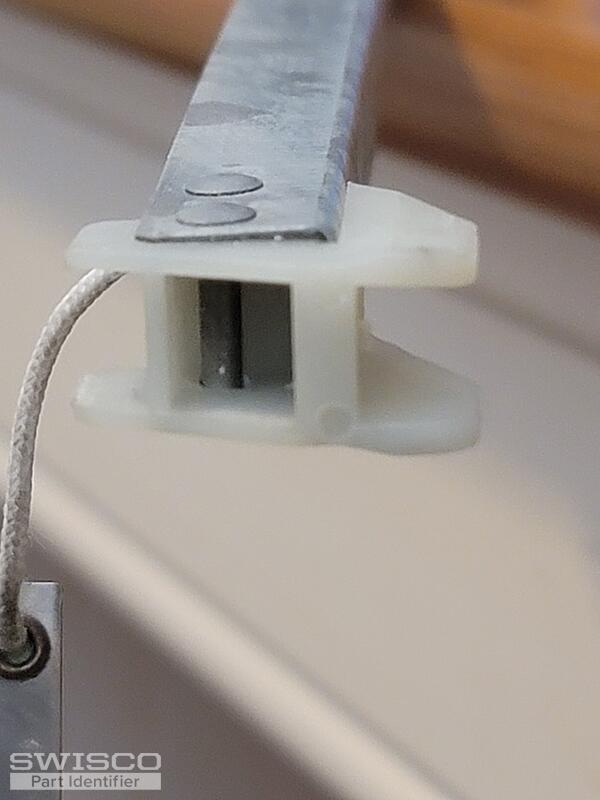

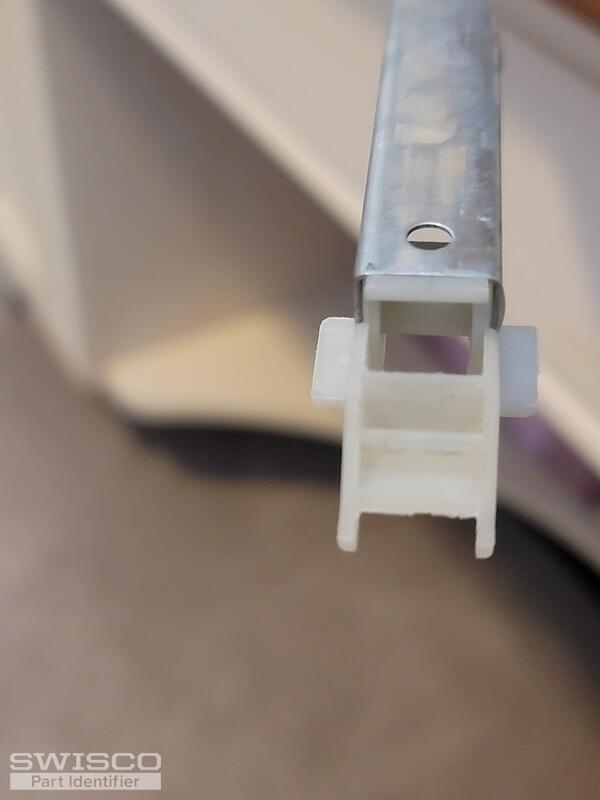

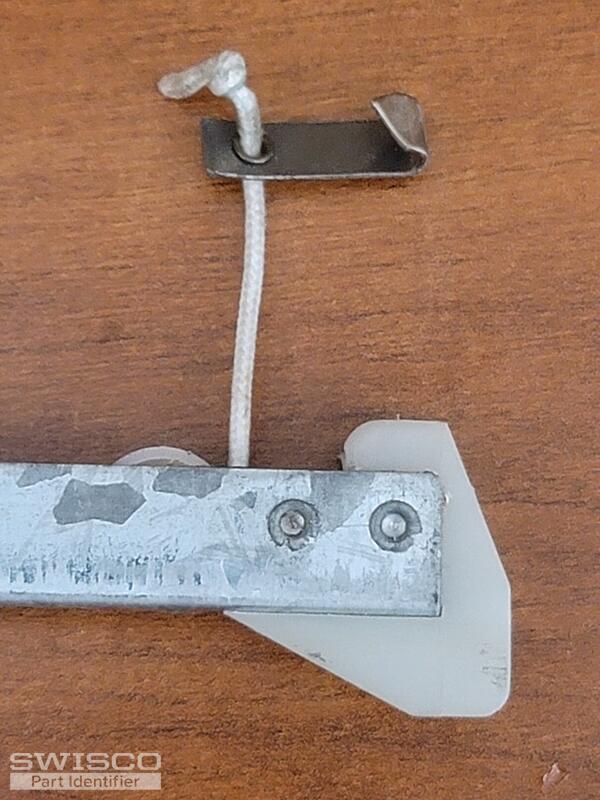

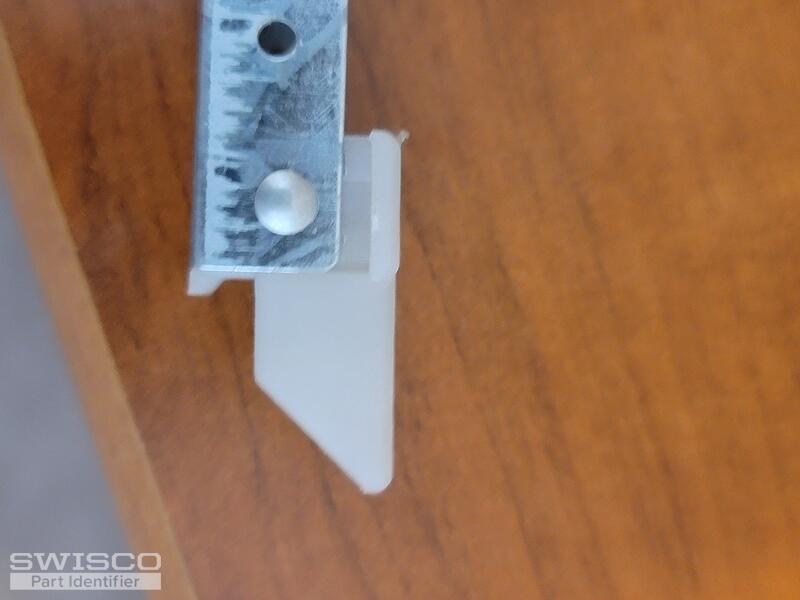

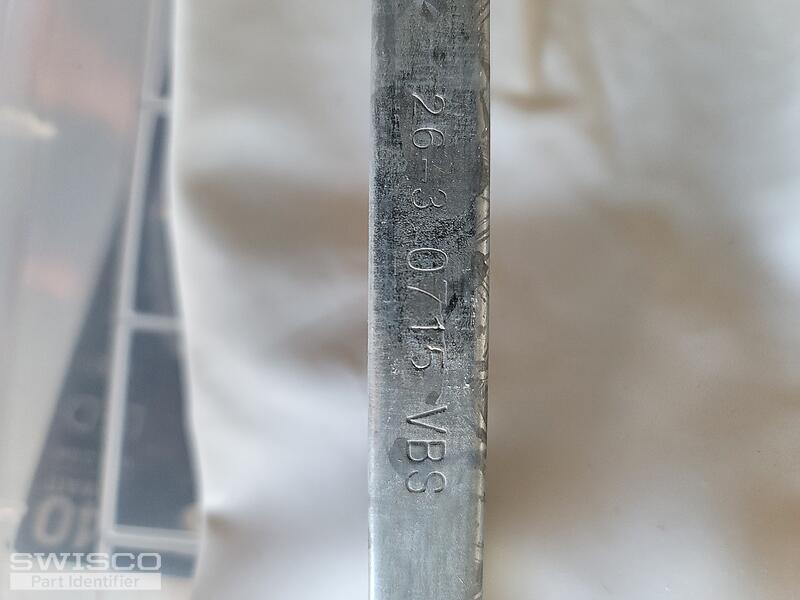

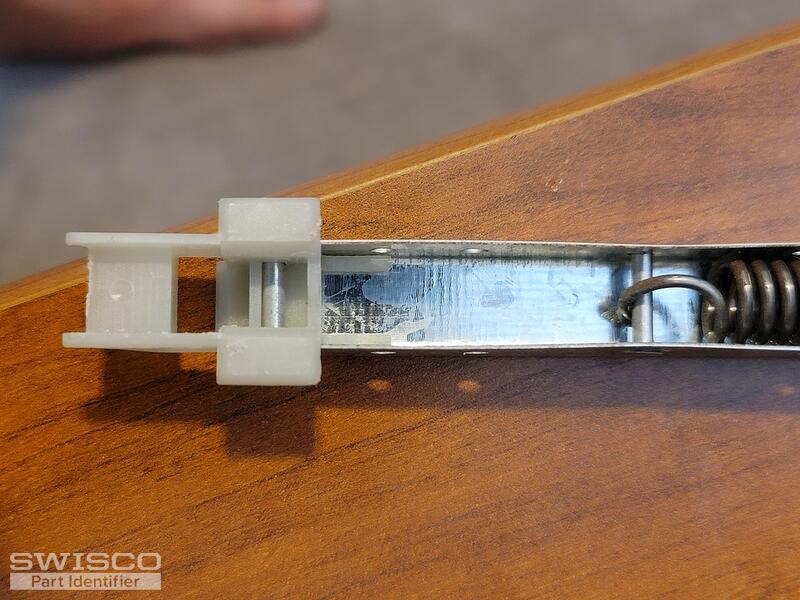

Trying to identify window balance part number. Stamp on metal channel is 26-3 0715 VBS. Pictures are included of the plastic ends. More pics available if needed.
5 user uploaded images
10 Replies
Home Owner from Southern California

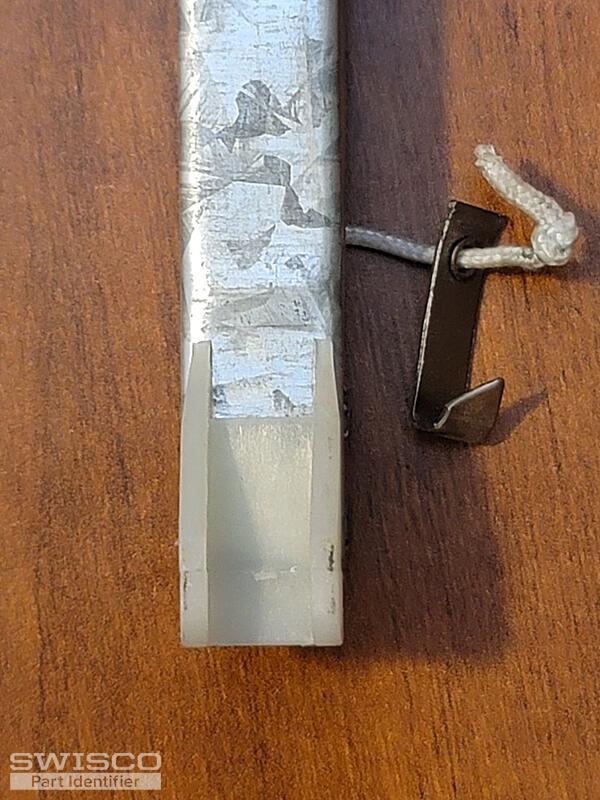

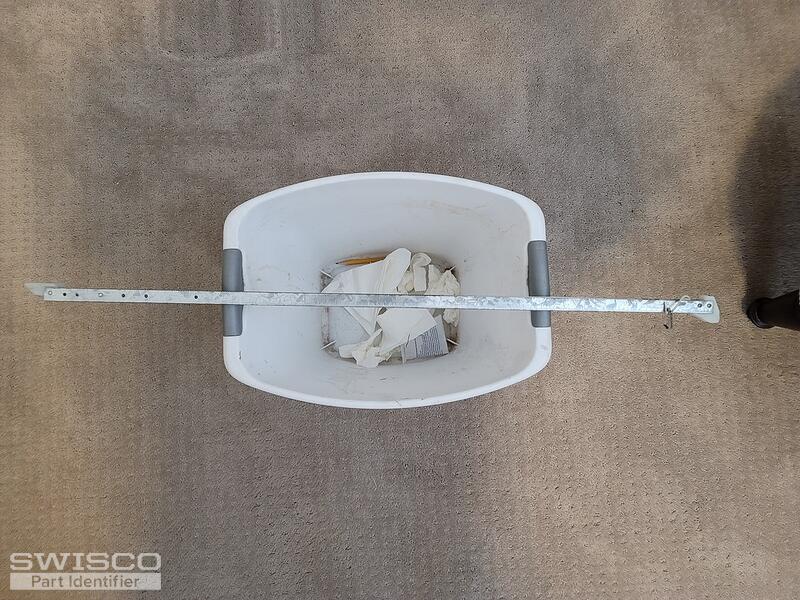

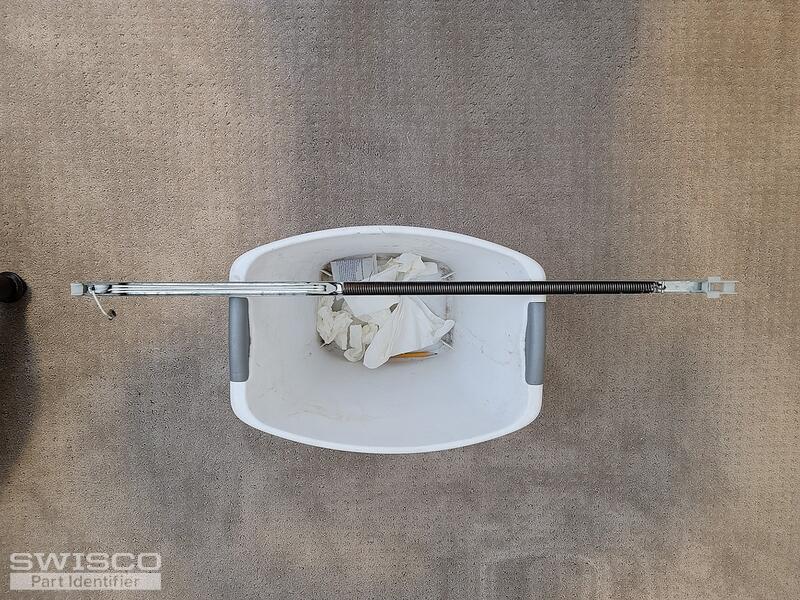

Adding more photos!
4 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Your balance has a somewhat odd configuration. It looks to be a match for our S395-27 at first glance, but I'm not sure if this will work. Look it over and see what you think. My hope is that your balance is just an older version but I'm just not sure. See what you think.

Home Owner from Southern California
Thank you for your help. There are some differences in the nylon ends but dimensionally they measure the same. I guess I'll purchase 2 and try them.

What stamp option do I use for the weight? The original stamp on my balancer is 26-3 0715 VBS.

You have been a big help! Thank you!!
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for confirming that! The size of the top and bottom fittings was my main concern, since they look so much bigger than your metal channel. Our S395-27 is made with a 1/2" x 1/2" metal channel, so yours must be an older version that was made to be a little smaller. I have seen those here and there in the past, though they are admittedly uncommon and I've never actually put my hands on them, so to speak. As long as the nylon fittings are the same size, though, then you shouldn't notice a difference after it's installed.

As for the stamp option, for a stamp of 26-3 you want our 2630. For peace of mind you can also see our return policy here.

Home Owner from Southern California
Thank you Tom! I'm going to order them and give it a try! I'll post back to let you know if they worked out. Maybe this might help the next person out! FYI the window mfg. (Champion Windows) wants $75.00 per window, 2 balancers! Imagine I have 18 windows of the same size (heavy) and none operate smoothly. I suspect the balancers are starting to fail too. Pretty hefty price tag for gently used windows just over 5 years old!

Thanks again!
Home Owner from Southern California

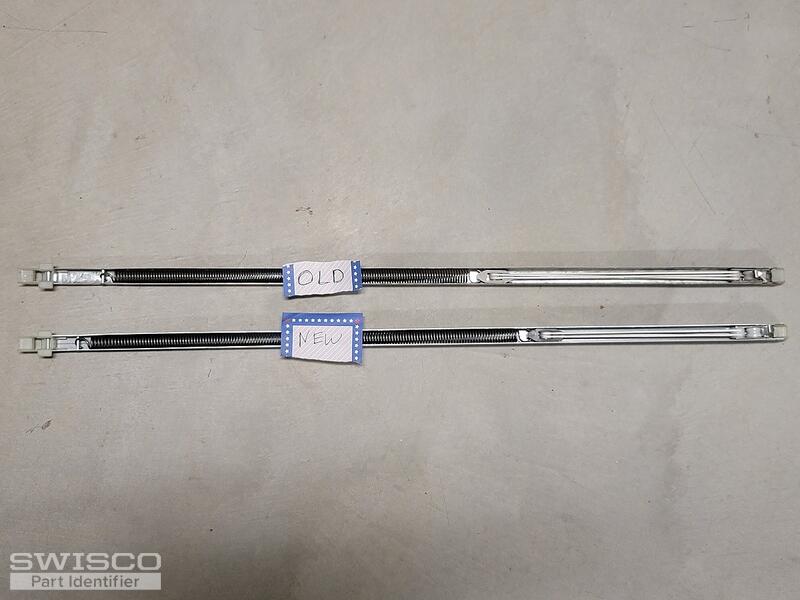

Received the new balancer today. The outside metal channel and the nylon ends match the old balancer perfectly! But the new one has a significantly longer spring and a shorter pully system. Not sure if this will effect the window travel? Picture included.

Any thoughts or advise?

Thank you!
1 user uploaded image
Tom
Tom from SWISCO
SWISCO
Expert

That should be fine, the length of the spring doesn't matter. Different manufacturers use different sized springs for some reason, but since you picked the 2630 option it will be charged with the same tension. You won't notice a difference.

Home Owner from Southern California
Tom, wanted to let you know I installed the balancers S395-27 with the 2630 option and they work great and I'll be buying more to fix the other windows!

If anyone has original balancer with the stamp of 26-3 0715 VBS the SWISCO S395-27 with the 2630 option worked great for me!

Tom I really appreciate your help and patience! This is a rare quality in todays retail environment and you exceeded my expectations! A JOB WELL DONE!!

Thanks again and take care!
Tom
Tom from SWISCO
SWISCO
Expert

That is fantastic news! Thank you so much for the update, and of course for your business. If we can be of any help in the future, you know where to find us.
