Identify Window Channel Balance

Quick Learner from Winnebago, IL
Jun 17, 2023 1:32 pm
Metal frame is 1/2" x 28"
Code stamped on metal frame is 2730

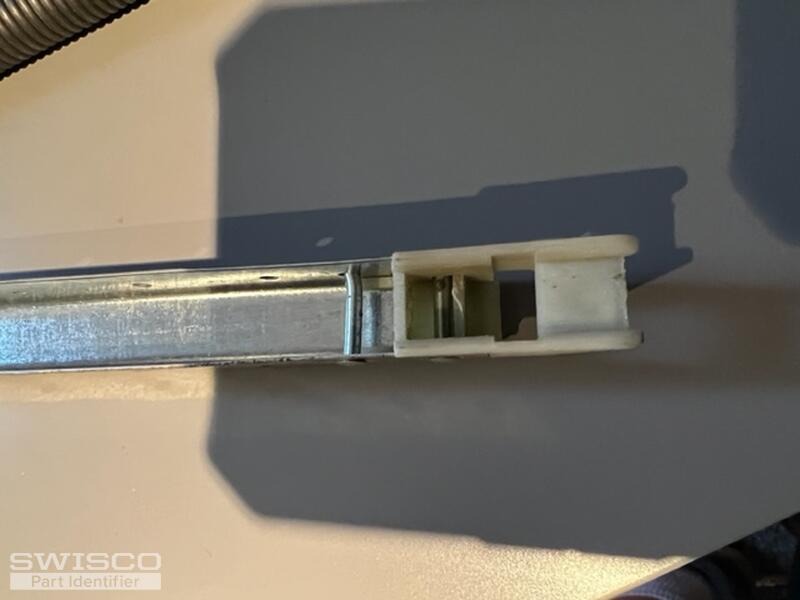

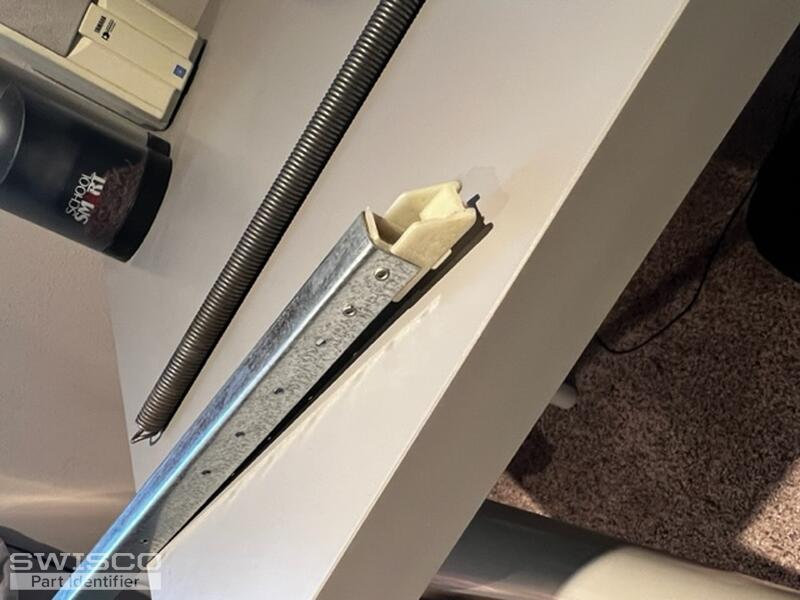

IMG_7099 IMG_7100 IMG_7101 IMG_7097 IMG_7098
5 user uploaded images
1 Replies
Bob
Bob from SWISCO
Jun 18, 2023 4:35 pm
SWISCO
EXPERT

Thanks for writing in. It appears you have either the S351-28 or S390-28. The only difference between these two channel balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below for reference. Compare both with your old hardware to see what matches best. In either case for a new stamp option choose 2730.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
