Identify balance for replacement

Question

Dear Swisco,

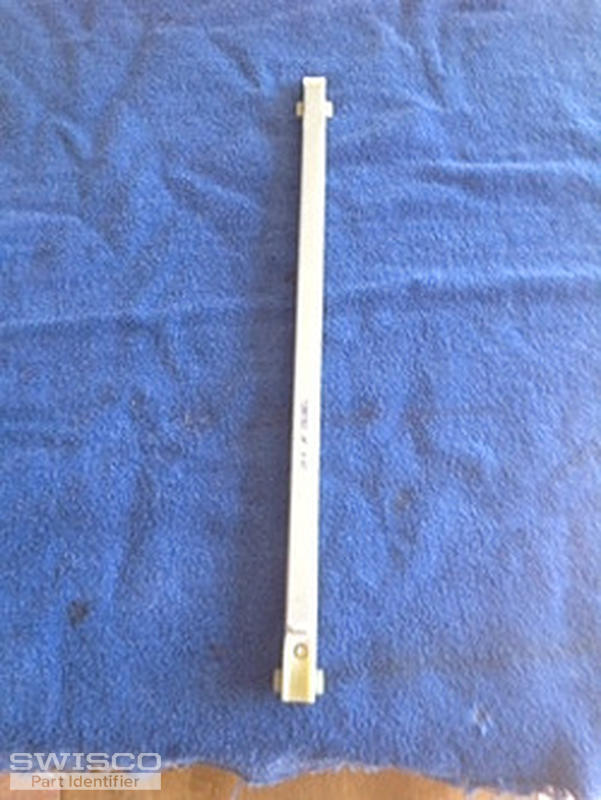

I need your help identifying which window balances to order. The only identifying number marked on the existing ones is "14 4 JR CALDWELL." The existing is a 1/2" x 15" metal channel with plastic ends (clips?). The bottom (clip) appears to have a depth of 1-1/16". The window total is a 33-1/2" x 33- 1/2" vinyl single hung.Unfortunately, I cannot provide the weight of the moveable bottom sash, because the good balance is all that is holding it in, and I am hesitant to remove the window until I have replacement balances. If possible can you cross reference with your numbers. Thank you, for your time and attention to my inquiry.

Sincerely,

Mark

Tom · Accepted Answer

Hello, Mark. Based on the given information, I recommend the S385-15 channel balance with a 1440 stamp option. I am fairly confident that this will work for you. The bottom fitting on this balance is 1-3/32", which is a little thicker than yours, but I would wager yours was the same and just wore down over time.
