Identify broken part replacement

A landlord from Bloomfield says:
May 10, 2021
I have an awning casement window crank with a handle that separated from the operator. Please advise on the replacement part. Also advise on what hardware should be purchased for proper install. I currently have an e clip and 2 screws for the device, 1 was missing.

The current part uses an e-clip to attach the operator to the outdoor window parts.

Thank you for your help,
Kim
Thumbnail of the uploaded file named IMG-1457.jpg
Thumbnail of the uploaded file named IMG-1458.jpg
Thumbnail of the uploaded file named IMG-1459.jpg

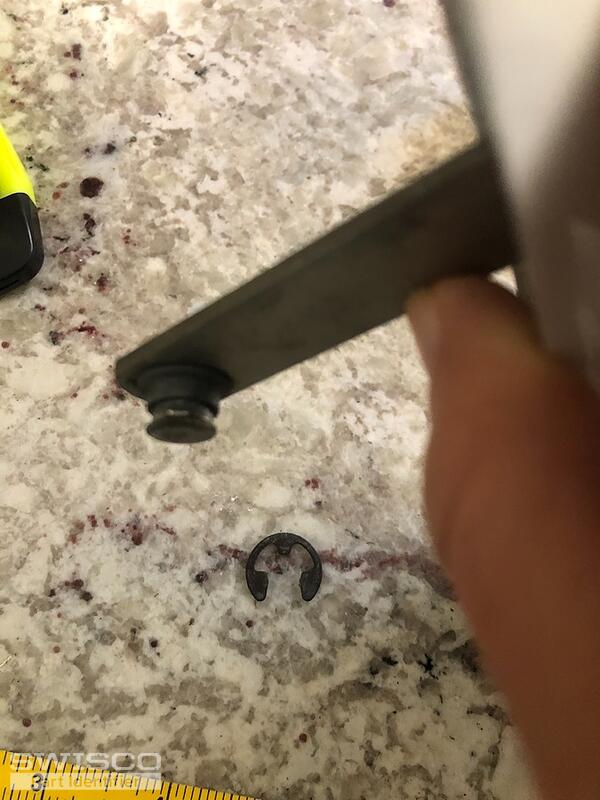

Thumbnail of the uploaded file named IMG-1460.jpg

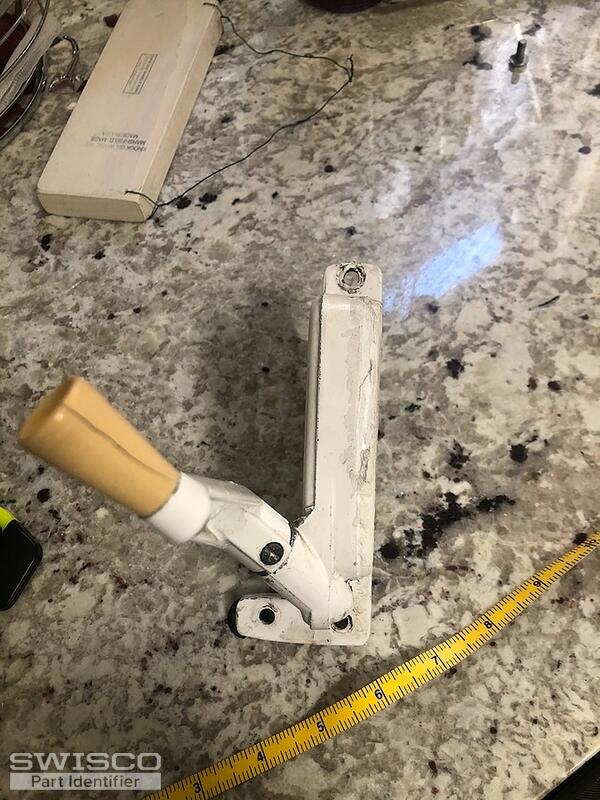

Thumbnail of the uploaded file named IMG-1462.jpg
Profile picture of Emily
Emily from SWISCO responded:
May 12, 2021

Hi, Kim.

Take a look at our 39-025 and 39-026 awning operators. Look over our dimensions and compare them to your current operator to see if they match up.
A landlord from Bloomfield says:
May 13, 2021
Thank you for your response. For the 025, what additional hardware will I need to install if all I currently have is an e-clip. Will I need any of the other items listed under "related items"?

Thank you,
Kim
Profile picture of Emily
Emily from SWISCO responded:
May 13, 2021

 The 33-081 #10 screw is what we usually use to install this operator.
Awning Window Crank Operator
Awning Window Crank Operator
39-025
$27.10
Awning Window Crank Operator
Awning Window Crank Operator
39-026
$27.10
Shoulder Bolt Washer
Shoulder Bolt Washer
33-206
$0.19
#10 x 1/2" Pan Head Phillips Screw
#10 x 1/2" Pan Head Phillips Screw
33-081
$0.18
