Identify channel window balance

Start a new Discussion

Handy Person from Lindon, UT

Apr 11, 2019 1:16 pm

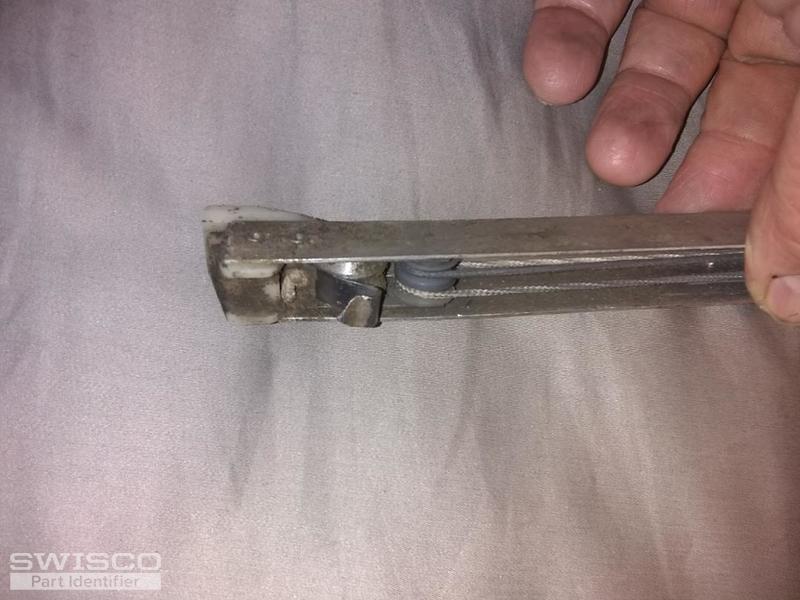

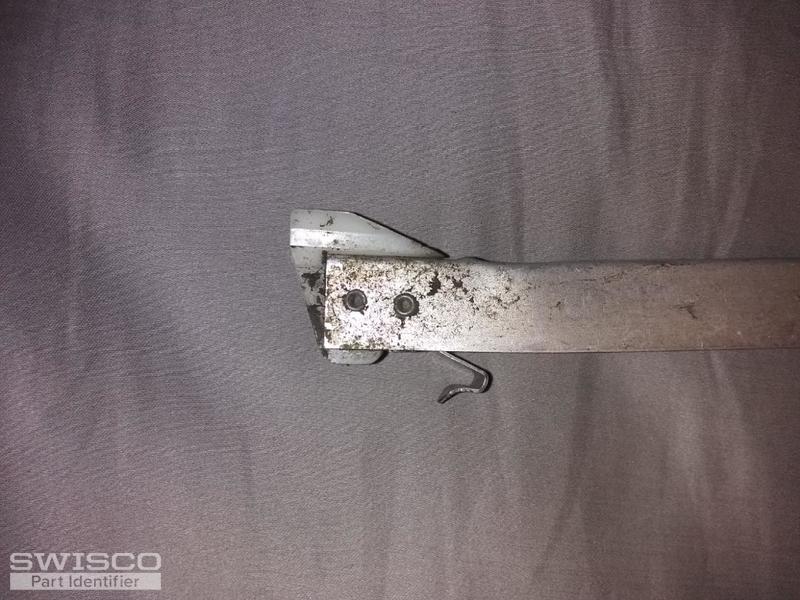

I believe this is a 60 series channel window balance. The metal is 24 inches long. The number on the metal is 2340

5 user uploaded images

4 Replies

Bob from SWISCO

Apr 11, 2019 1:24 pm

Thanks for writing in. See either our S351-24 or S390-24. The only difference between the Series 351 and Series 390 is the 'depth' of the bottom nylon shoe. The Series 351 bottom nylon shoe has a depth of 1", whereas the Series 390 bottom nylon shoe has a depth of 1-1/8". Below are the dimensions of each respective shoe. Compare with your old balances and see what you think matches best.

You will need to select a stamp option of 2340.

Handy Person from Lindon, UT

Apr 11, 2019 3:07 pm

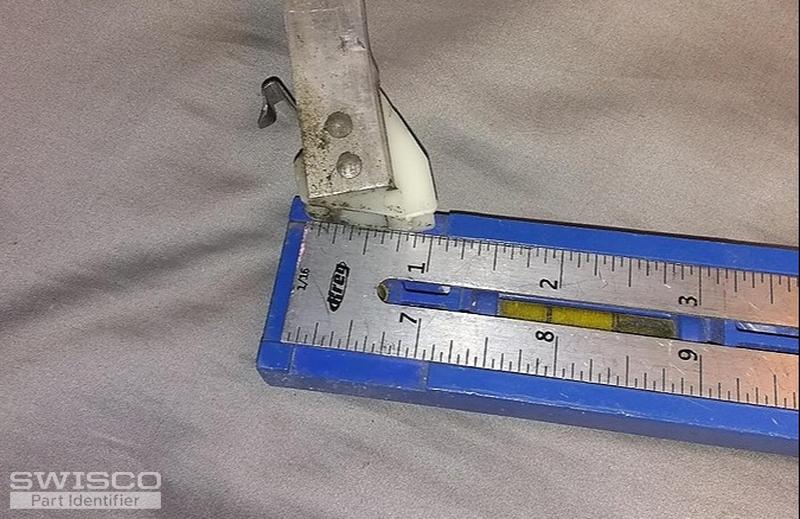

I posted another picture. Is this what you were talking about? So I need a series 351?

1 user uploaded image

Bob from SWISCO

Apr 12, 2019 8:51 am

The measurement should be perpendicular and just beneath the metal channel. Here's another way of thinking about it: stand your balance straight up as it would be if it were installed in the window. Look at the bottom shoe and think of it as just that: a shoe. Now, measure the heel to the toe. That's the depth, and it should tell you exactly what you need.
