A quick learner from Piedmont s.c. says:
January 23, 2024
I have Anderson silverline windows.I'm going to have to order the coil balance, mount bracket and cowl housing pivot.Thanks for your help.
Thumbnail of the uploaded file named Window Channel Measurement
Thumbnail of the uploaded file named Coil Balance Bracket
Thumbnail of the uploaded file named Clear Mounting Bracket

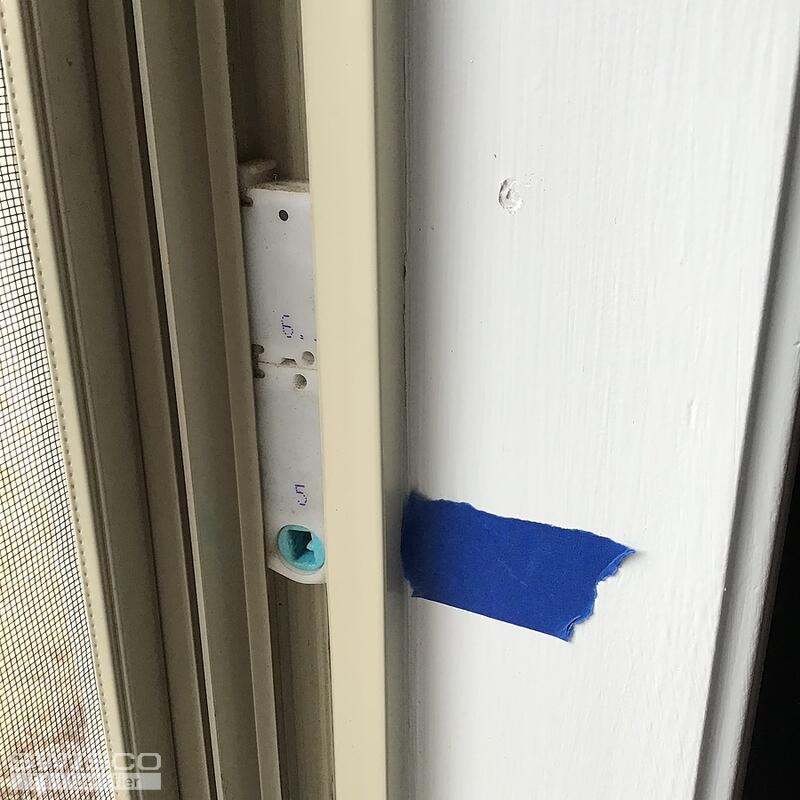

Thumbnail of the uploaded file named Coil Balance Housing

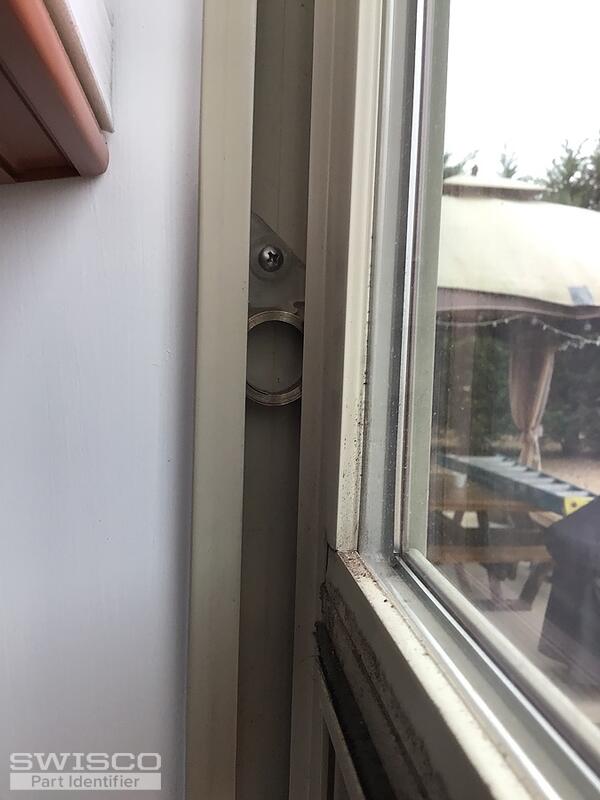

Thumbnail of the uploaded file named Coil Spring and Bracket
Profile picture of Jasmine
Jasmine from SWISCO responded:
January 24, 2024

Thanks for posting! Your coil balance housing reminds me of our 15-087 Coil Housing Pivot. The housing attached to the top is the 15-086 Tandem Coil Housing.

Carefully review and compare the dimensions to those shown below to determine if these are the correct replacements. I am confident these are the replacements you'll need.

Detail of 15-087
Detail of 15-087

These coil housings are used along with the Series 180 Coil Balance. Since your housings are stamped with a 5 and a 6, you'll need the S180-5 and the S180-6 coil springs. The plastic mounting bracket is the 16-031 Clear Mounting Bracket.

You may also need the 33-072 #8 x 3/8" SS Pan Head Philips Screw.
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
Tandem Coil Housing
Tandem Coil Housing
15-086
$1.99
Mounting Bracket
Mounting Bracket
16-031
$0.90
5 lbs Series 180 Coil Balance
5 lbs Series 180 Coil Balance
S180-05
$4.37
6 lbs Series 180 Coil Balance
6 lbs Series 180 Coil Balance
S180-06
$4.45
#8 x 3/8" SS Pan Head Philips Screw
#8 x 3/8" SS Pan Head Philips Screw
33-072
$0.30
