Identify required parts for crank-out casement window repair

Home Owner from Pamlico Beach, NC

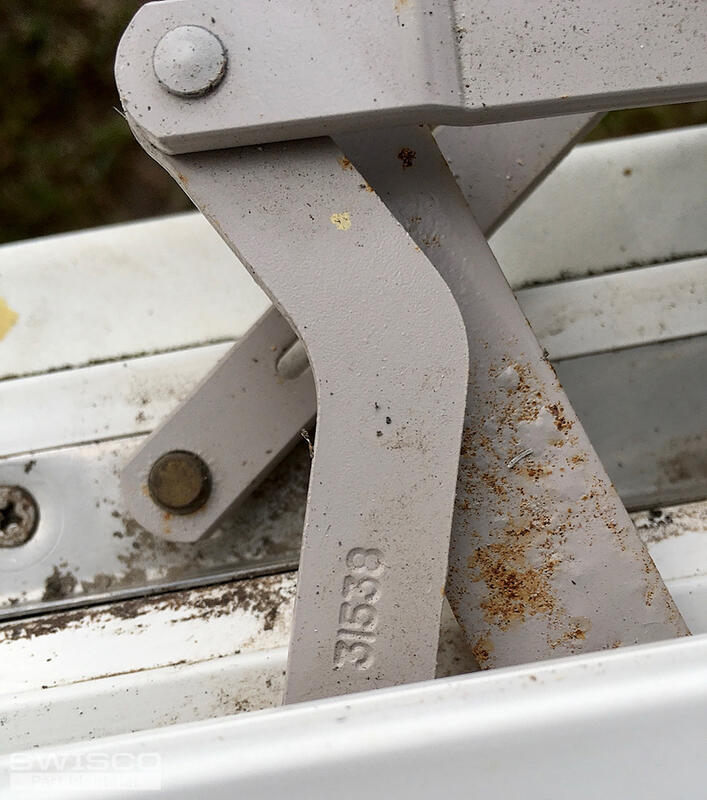

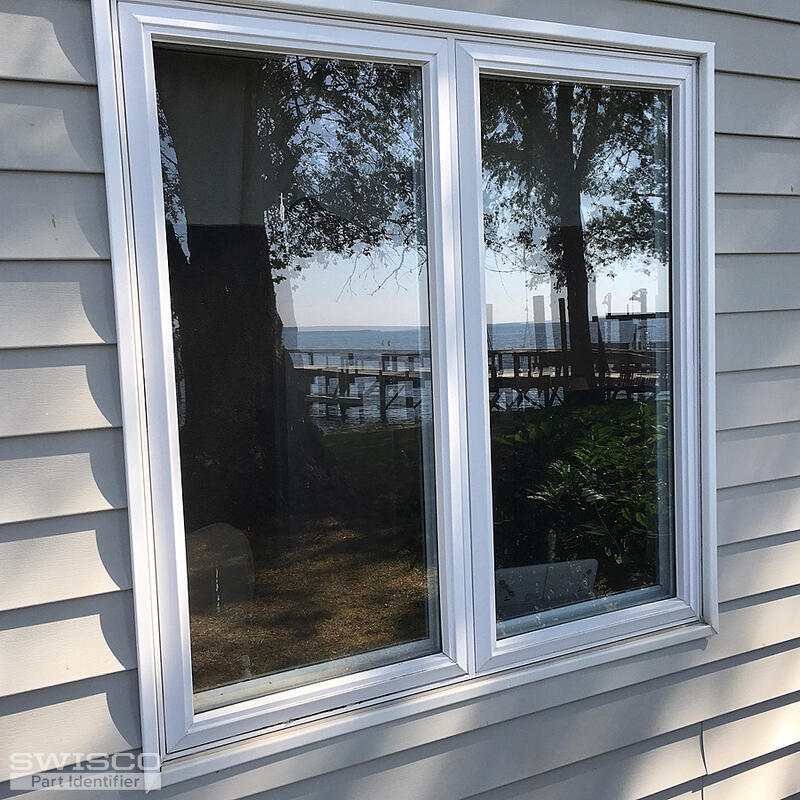

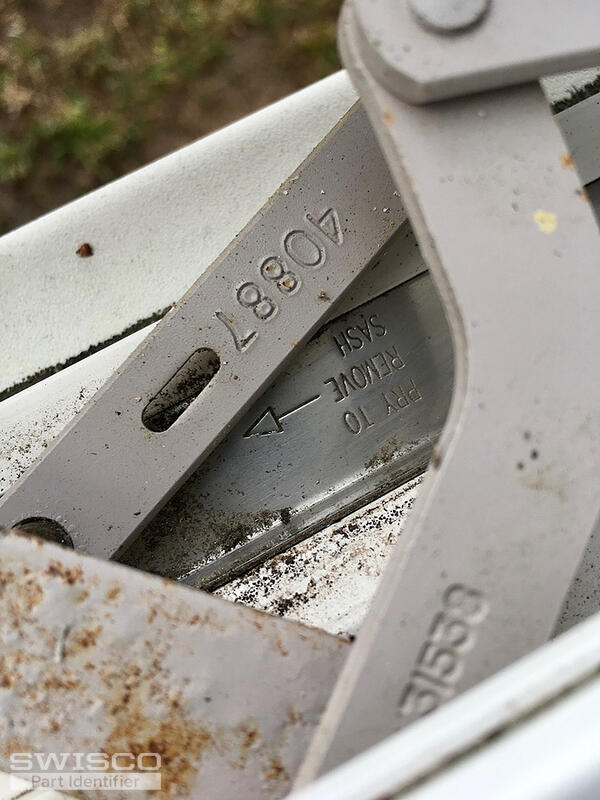

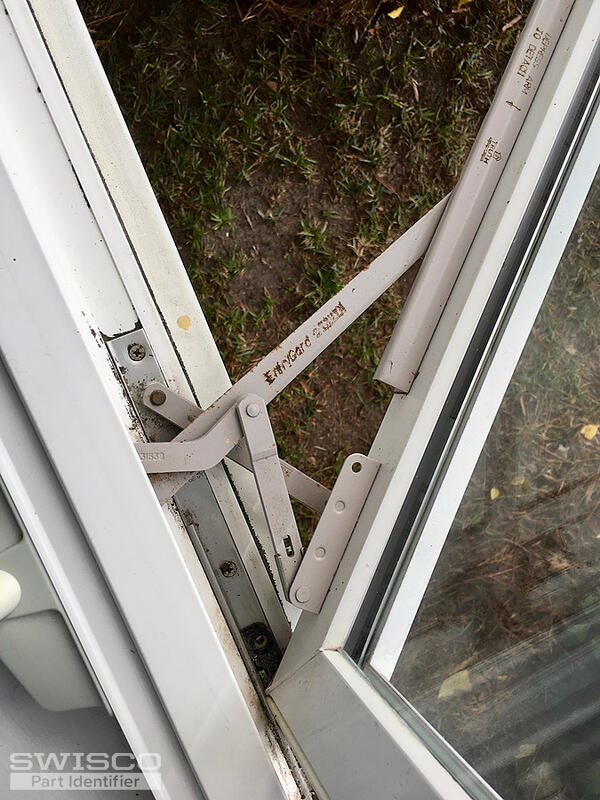

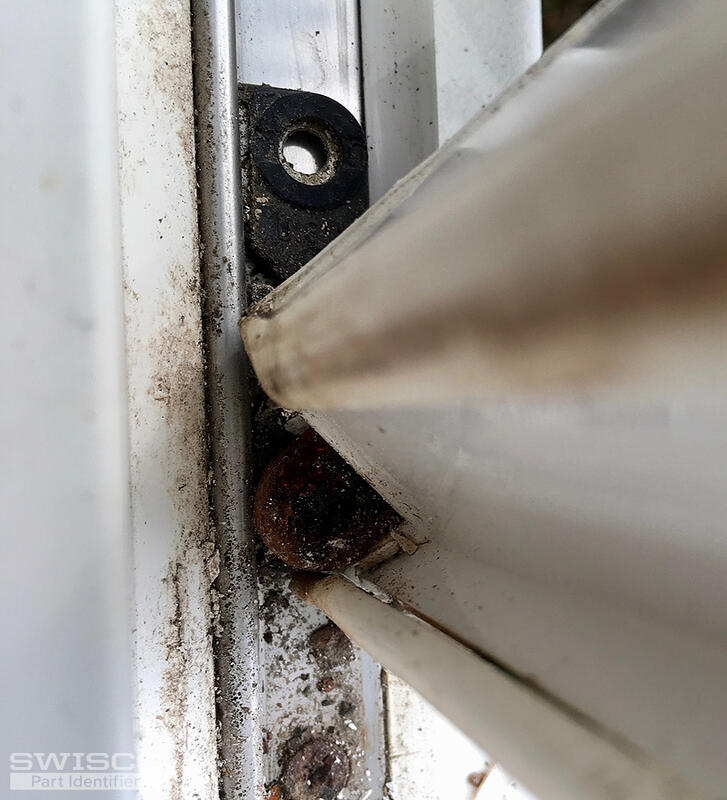

Windows are developing a bit of rust on arms at bottom, though the big issue is corroded lower slide shoes that disengage from the hinge and then jam the windows to prevent proper closure. Would like to see if you can identify the parts we should order based on these photos. All I could identify on inspection of the windows was "EntryGard TRUTH" on one arm, the number 31538 on another, and 40887 on a third. We would like to at least replace the hinge shoes, and perhaps a few other hardware parts on three or four of the windows. Thanks for any advice and info.
5 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Hello! We sell both the operators and the hinge, yes. See our 39-031 and 39-032 and the 36-048 set.

Just note that the hinge won't be identical to your original. It will still work, but you have to replace the top and bottom at the same time.
