Hi Team,

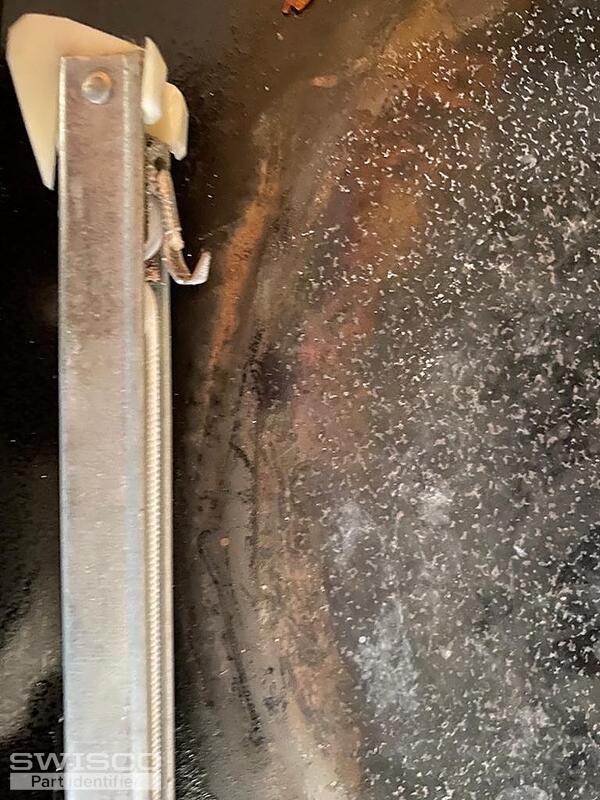

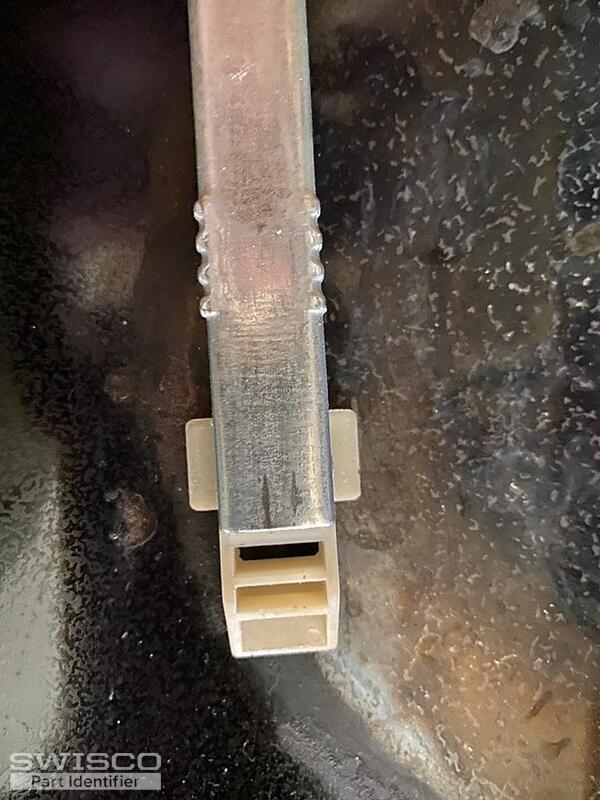

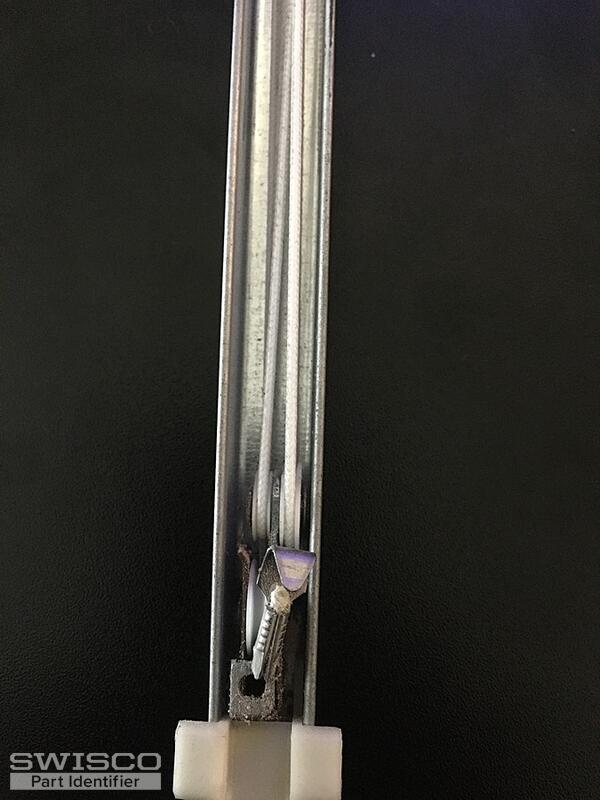

I am looking for a replacement part for the attached channel Balance.
It is for Single Hung Window. The marking says "29 4 FV CMC 7"
Regards
Samir
Identify the Channel Balance for 29 4 FV CMC 7
Home Owner from 98052
Aug 14, 2021 6:20 pm
5 user uploaded images
3 Replies
Home Owner from 98052
Aug 14, 2021 7:02 pm
The Length of the Windows Channel is 30 Inches.
1 user uploaded image
Emily from SWISCO
Aug 18, 2021 2:24 pm
Hey, Samir.
With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2940.
If you have any further questions just let us know!
Comparison of the S378, S380 and S385 balance shoes.
