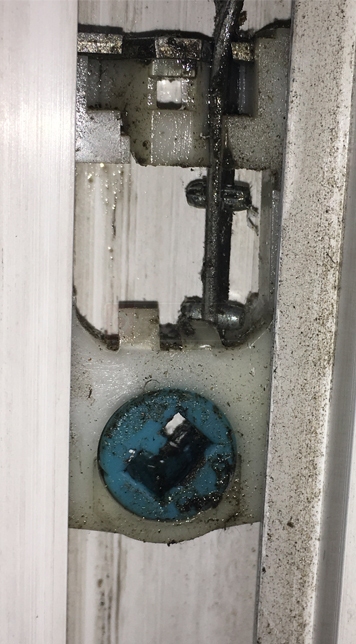

Identify type of balance to order

A quick learner from Alexandria va says:
August 3, 2017
Spiral balance tip color not there.
Window weight 16.7 ibs
Length - 29 inches
Diameter - 3/8th
Identify type of balance to order
Profile picture of Tom
Tom from SWISCO responded:
August 7, 2017
Thanks for posting! See our 15-015 pivot shoe to start out with. Can you confirm the diameter of the spiral balance? Your shoe usually uses a 5/8" diameter. I would confirm just in case. Make sure you only measure the diameter of the outer tube, not the inside spring. If it is 5/8" I would recommend our Series 600 balance. If it's 3/8", see our Series 900 instead.
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-015
$1.55
29" Series 600 Spiral Tilt Window Balance
29" Series 600 Spiral Tilt Window Balance
S600-29
$9.35
