Identify window balance

from OKC

Aug 3, 2017 1:36 pm

Balance is 1/2 in wide and 30" from plastic tip. The metal part is 29". The back has the number 2830 and above that B.S.I. The house was built in 1987.

4 Replies

Tom from SWISCO

Aug 3, 2017 2:09 pm

I am afraid your photos did not upload properly. Is there any way you can resend them to us?

Quick Learner from USA

Aug 3, 2017 3:14 pm

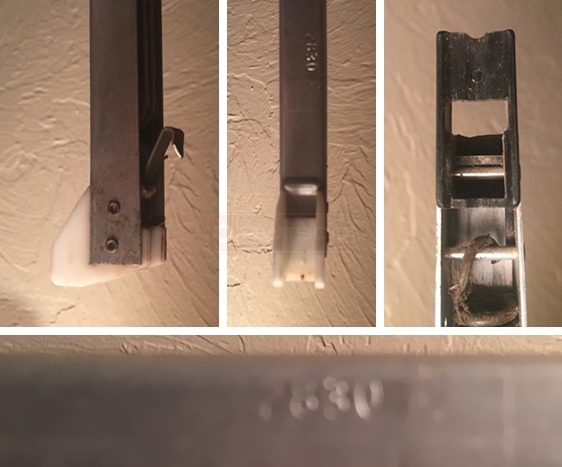

Here are my photos

Tom from SWISCO

Aug 7, 2017 3:23 pm

Welcome to SWISCO. I believe you have a 29" Series 390 channel balance with a 2830 stamp option. To verify this, measure the shoe of your balance as shown below. If it measures 1-1/8", you need the S390-29. For a 1" shoe, choose S351-29.

Comparison of the S351 and S390 balance shoes.
