5/8

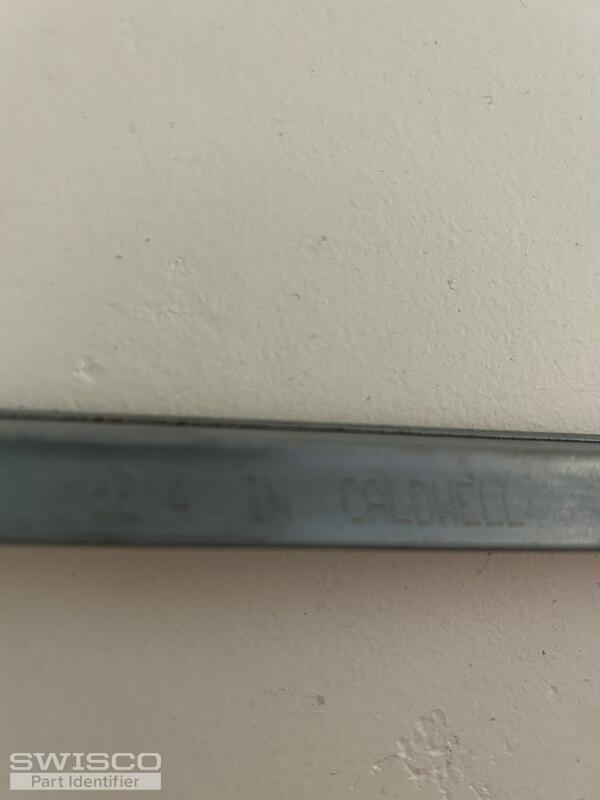

Caldwell 22-4
Single hung window balance
Identifying balance
Quick Learner from Hawaii
Nov 16, 2022 6:14 pm
5 user uploaded images
4 Replies
Tom from SWISCO
Nov 22, 2022 2:36 pm
Thanks for your photos. Based on what I see here, you have either our S380-23 or S385-23, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.
Comparison of the S378, S380 and S385 balance shoes.
Quick Learner from Hawaii
Nov 23, 2022 1:15 am

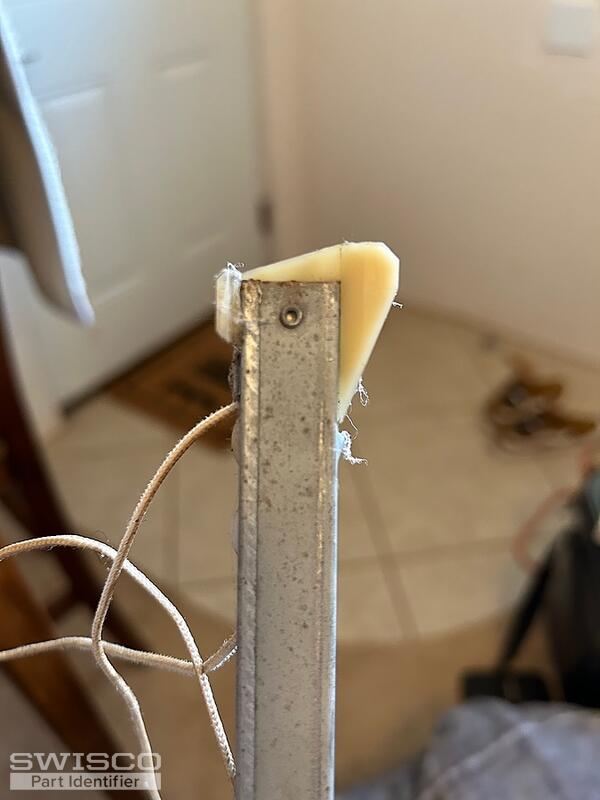

The measurement of the bottom nylon piece is 1 inch so the 380 seems correct. The description of the 380 says it is a 1/2 inch size. What I have measures 5/8" (the metal part). Also what swisco weight code corresponds with caldwells weight code of 4?
Tom from SWISCO
Nov 23, 2022 10:21 am
The difference in the width of the metal channel should be okay. I've replaced your brand balance many times with ours and I never ran into any issues.
As for the stamp, your old marking of 22-4 should correspond to our 2240.
