Identifying casement operator : SWISCO.com

Quick Learner from Spearfish SD

Jun 5, 2024 1:49 pm

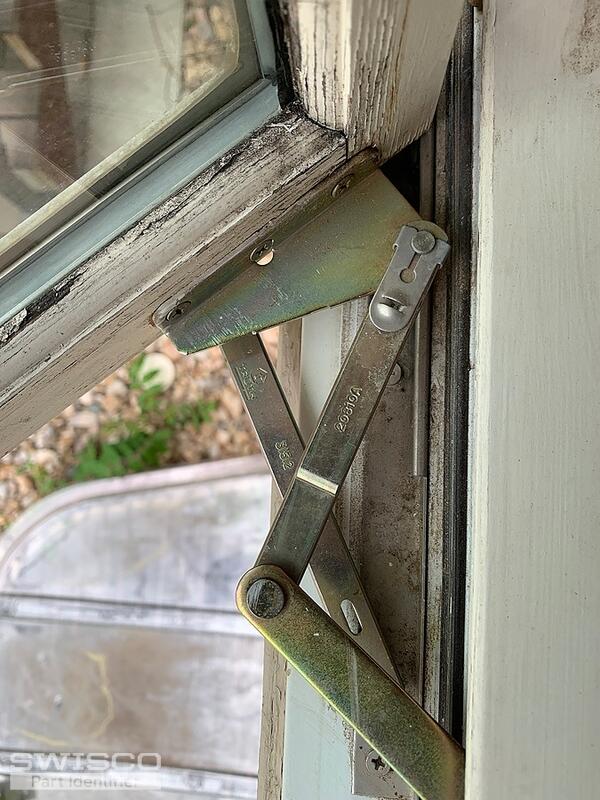

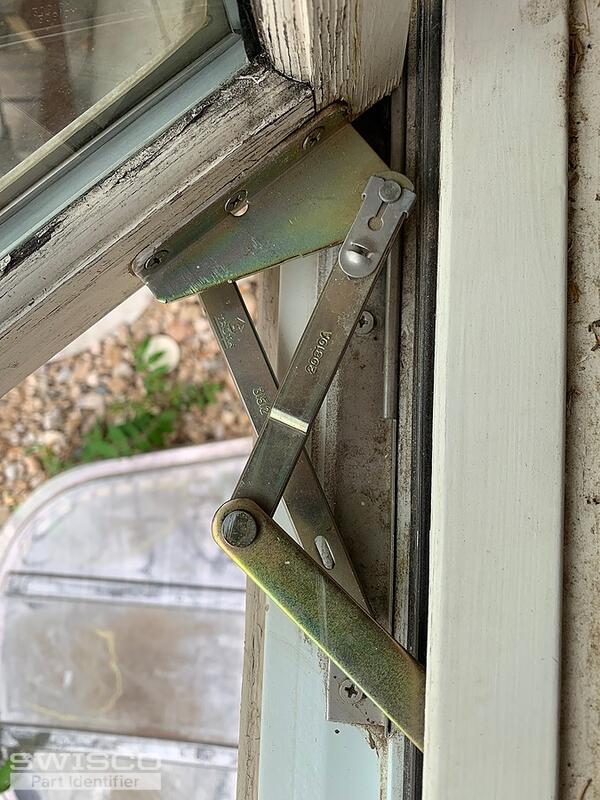

New house with old casement windows. One window is missing operator and all other parts. A similar window has these two numbers top bar has 20819A and the lower arm has 31512 stamped on it. Is this an Entrygard 15? Or something else. Thanks.

2 user uploaded images

4 Replies

Emily from SWISCO

Jun 7, 2024 11:29 am

Hey there! Thanks for reaching out to us. Our 39-171 and 39-172 come to mind. I wonder if one of these could be what you're searching for. Take a look at the specifications and see how they compare with yours.

Dimensions for 39-171

Dimensions for 39-172

Quick Learner from Spearfish SD

Jun 7, 2024 1:08 pm

Thank you for your reply. Also, i need the other parts such as the bar underneath and other hardware. I will recheck the other windows measurements.

Emily from SWISCO

Jun 10, 2024 8:34 am

It sounds like you're referring to the hinge. I recommend you start by having a look at the 36-048 to see if the specifications align. Note that we suggest replacing the top and bottom hinges at the same time.

If you need new brackets, see the 39-545 and 39-546 which are sold separately.

Detail of 36-048

Additional dimensions for 36-048
