Identifying parts

Question

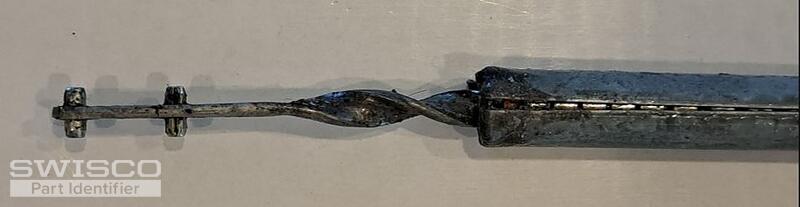

I have taken pictures of the parts I need and I measured of the spiral balance. I also need a pivot shoe. The spiral balance is 28 1/2' long.
Thank you,

the windows are able to tilt. There are no color tips on the spiral balance tubes. The diameter of the balance tube is 3/8. The length of the tube is 28 1/2. The pivot shoe is 15/16 wide x 2 1/8 tall x 3/8 inches wide deep. You will see in the photo it is taller on one side with a point. That side is 2 1/4 tall.

The spring loaded pivot bar measurements are:
Overall length is 2 1/4.
Longest length from plastic knob is 1 3/4.
Width is 5/16.
Height is 3/16.

The weight of the smallest sash is 16.2 lbs. The larger sash weighs 19 lbs.

I have attached photos.

Thanks for your help.

Emily · Accepted Answer

Hey there!

Thank you for the detailed information. It's a huge help! Starting with the pivot shoe and pivot bar, take a look at the 26-083 and 15-212. As for the spiral balance, I recommend the 3/8" S900-29 with the red tip option. A pair of balances with this option will support a sash weighing 10 to 22 pounds. We also sell the 75-006 charging tool (sold separately).

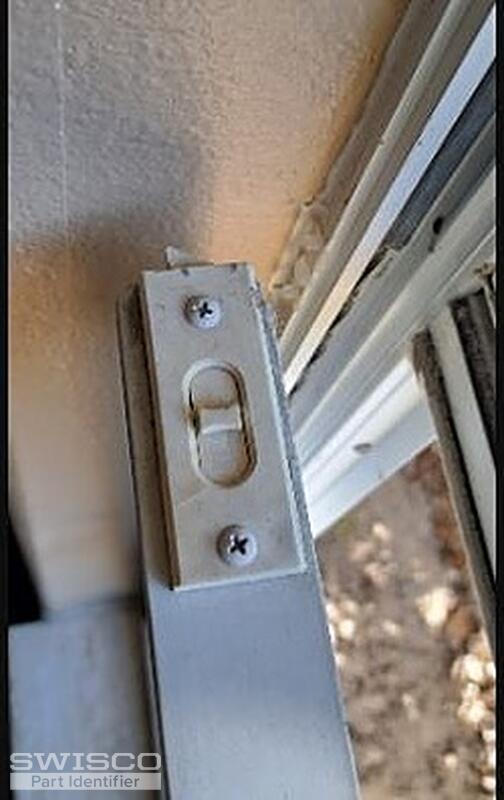

The tilt latches bring the 26-195 and 26-196 to mind. You'll just want to carefully go over the specifications to see if they match what you need.

Let us know if you have any questions!
