Identifying window type

Home Owner from Hawaii

Jul 2, 2017 2:47 pm

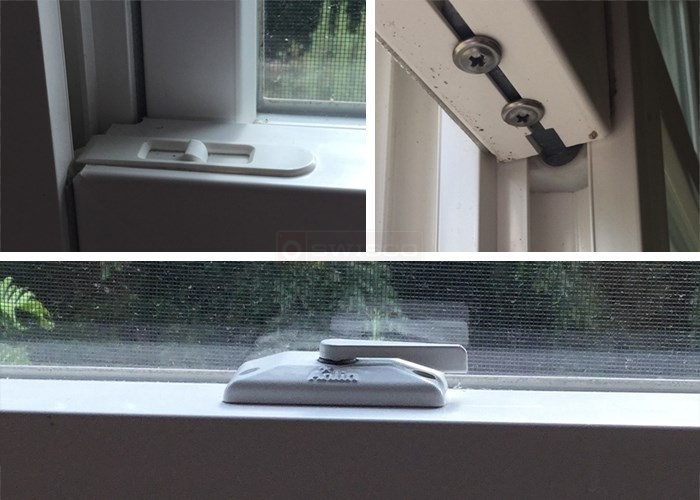

I have many windows and they are of the channel balance type and with your help I've repaired them. But this one is different and I'm not sure how to remove window and replace broken part. There is no clip to pop out The window slides up but won't stay up. Please help!!

4 Replies

Tom from SWISCO

Jul 6, 2017 11:12 am

This is a tilt window. See the video below; I'm not sure if the balances shown match what you have, but the method of removing the sash should be the same.

Home Owner from Hawaii

Jul 9, 2017 5:36 pm

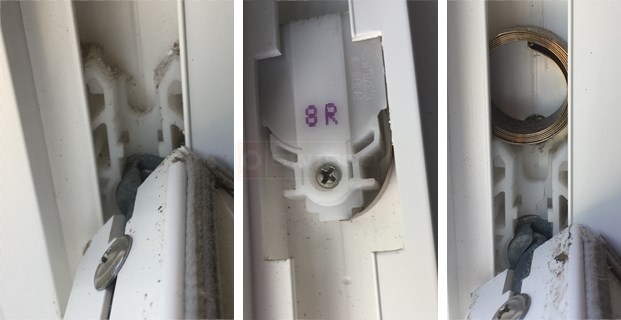

I've removed the window and found the differences between the broken one and the working window. First 2 pix are of broken one, last 2 of working one. How do I fix what appears to be a snapped copper srip which is now wound up like a spool? Thanks

Tom from SWISCO

Jul 12, 2017 10:54 am

This looks like a coil balance system, specifically our S140-8. Take a look and see what you think.
