I'm looking for a replacement awning window lever opener

A handy person from Florida says:
August 2, 2022
I'm looking for a replacement awning window lever opener. If a one for one replacement is not available, I'd like something similar, and I'll make it work.

Thank you for your help.
Thumbnail of the uploaded file named IMG_5080.jpeg
Thumbnail of the uploaded file named IMG_5081.JPEG
Thumbnail of the uploaded file named IMG_5083.JPEG

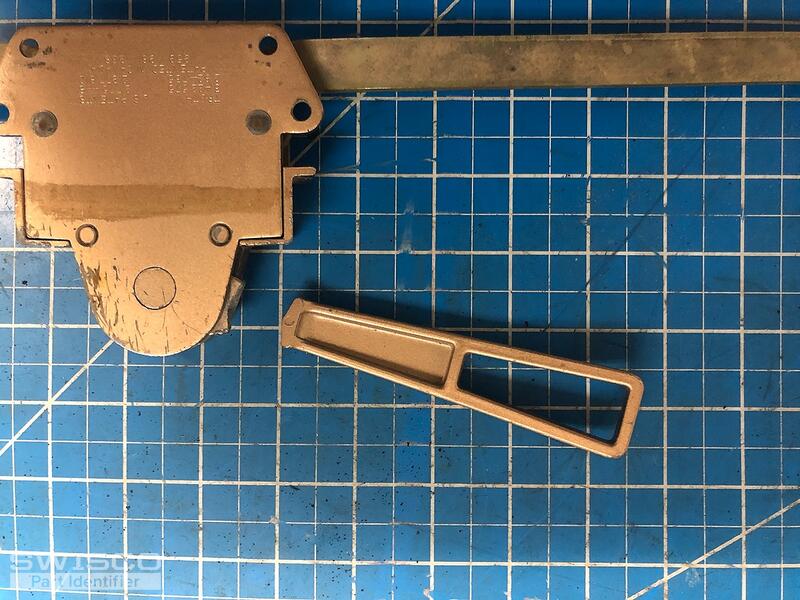

Thumbnail of the uploaded file named IMG_5085.JPEG
Profile picture of Emily
Emily from SWISCO responded:
August 8, 2022

Hello!

I'm afraid we've never seen this assembly before. With that said, I'm going to have one of our senior experts take a look and see if they could recommend a replacement for you. We'll reach out as soon as more information is available.

Thank you!
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
August 9, 2022

Hmm, I'm not familiar with your type of lever lock operator with the 36-078 shoe stud. I believe it could be no longer available. We do carry an operator that takes the 36-078 shoe, our 39-348, but I'm not sure it would be a good fix for your window. I'm leaning toward the 39-070 lever lock operator that takes two sash brackets, either the 39-170 or the 39-177. Take a look at the related parts and information on this page to see what you think would be best.
A handy person from Florida says:
August 9, 2022
Thanks for your help, I've ordered the recommended parts
Sill Mounted Awning Operator
Sill Mounted Awning Operator
39-348
$61.10
Shoe Stud
Shoe Stud
36-078
$6.45
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
Lever Lock Awning Window Operator, 23-1/4"
Lever Lock Awning Window Operator, 23-1/4"
39-070
$84.79
Window Sash Bracket
Window Sash Bracket
39-170
$1.94
Window Sash Hook
Window Sash Hook
39-177
$5.70
