I'm looking for balance for my window : SWISCO.com

Handy Person from Virginia

Jan 1, 2025 3:52 pm

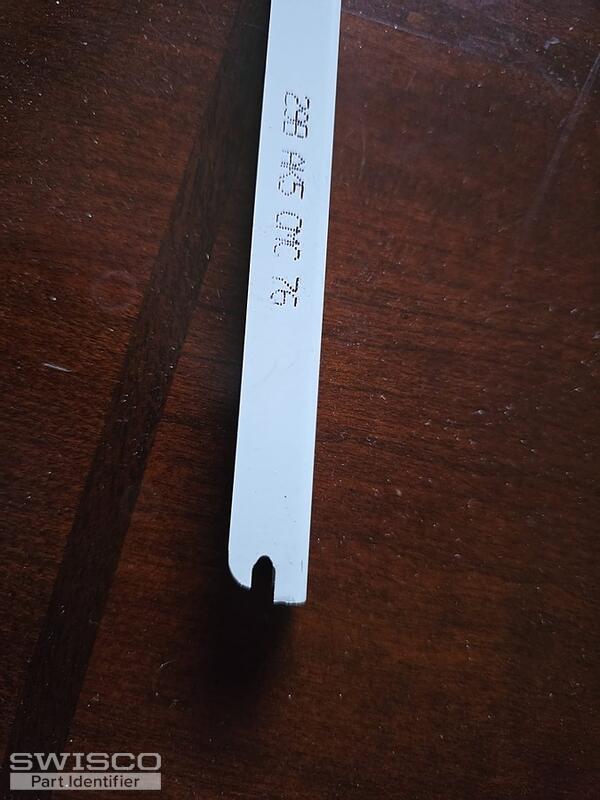

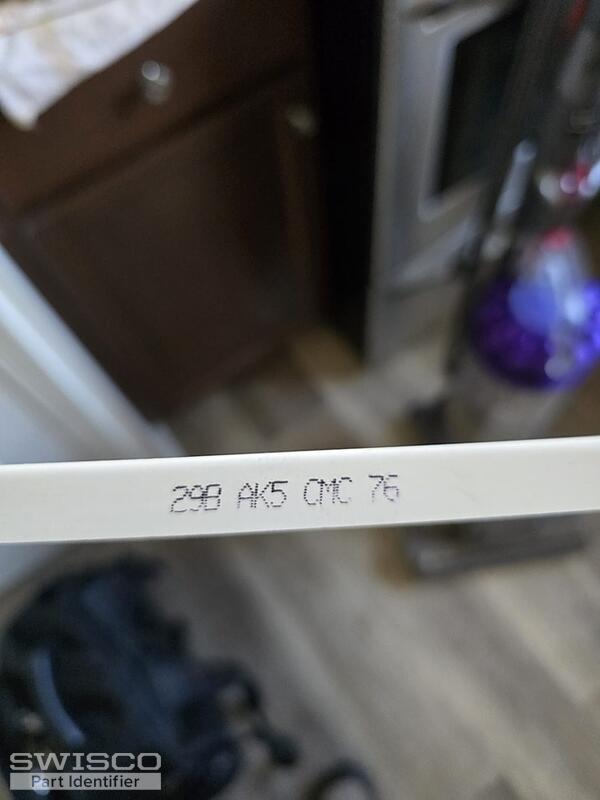

I 'm looking to find this balance to replace it for my window and this is the number on the old balance: 29b ak5 cmc 76.

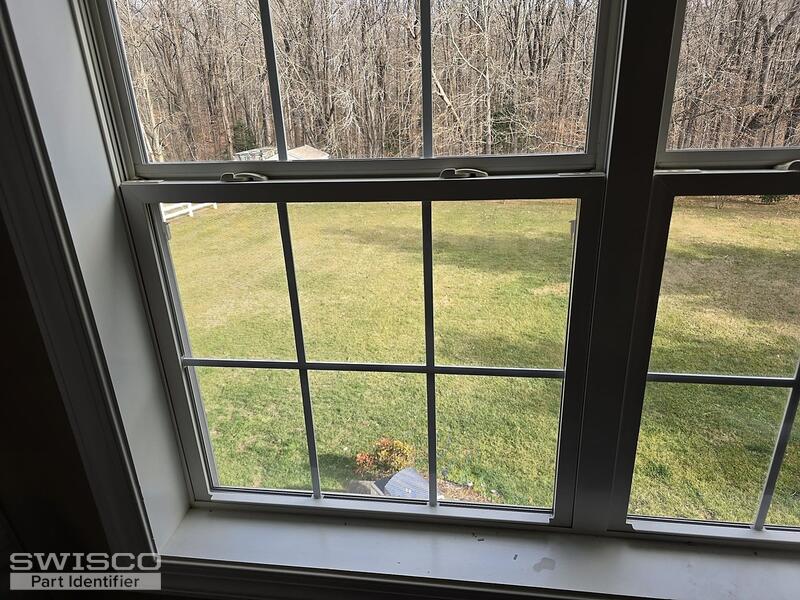

I attached the picture to make it easy and clear for us to find the right balance.Thanks

5 user uploaded images

4 Replies

Casey from SWISCO

Jan 2, 2025 4:02 pm

Hello,

We'd be happy to look into this for you but we'll need a bit more information to narrow down your options. If you could show us the connecting point between the spring and pulley inside the metal channel, that would help us confirm if our stock balances could work for your repair or if they would need to be special ordered. We'll also need to see both ends of the metal channel and confirm how it attaches to the top of the winodw. Thank you!

Handy Person from Virginia

Jan 2, 2025 4:21 pm

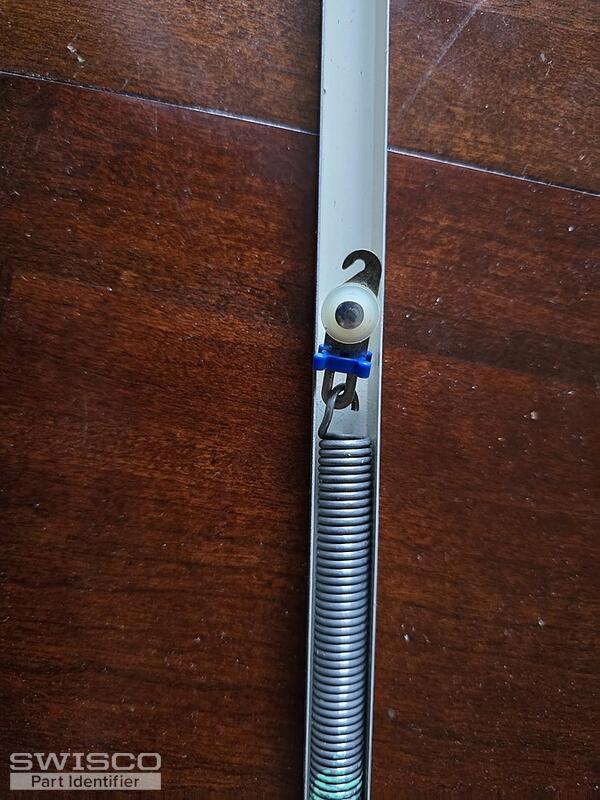

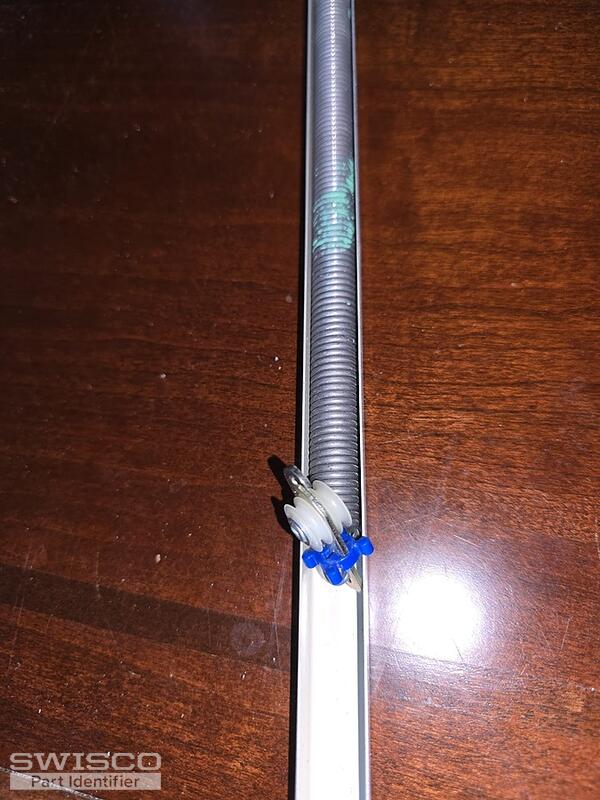

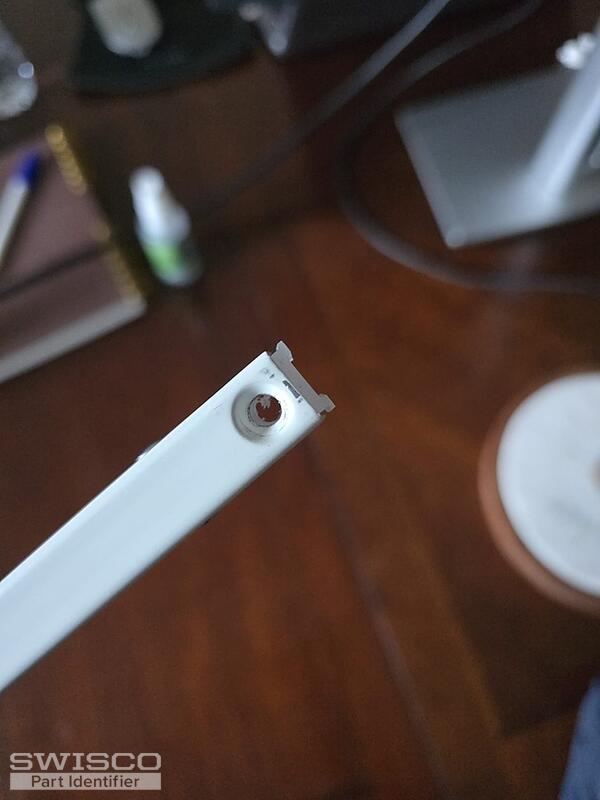

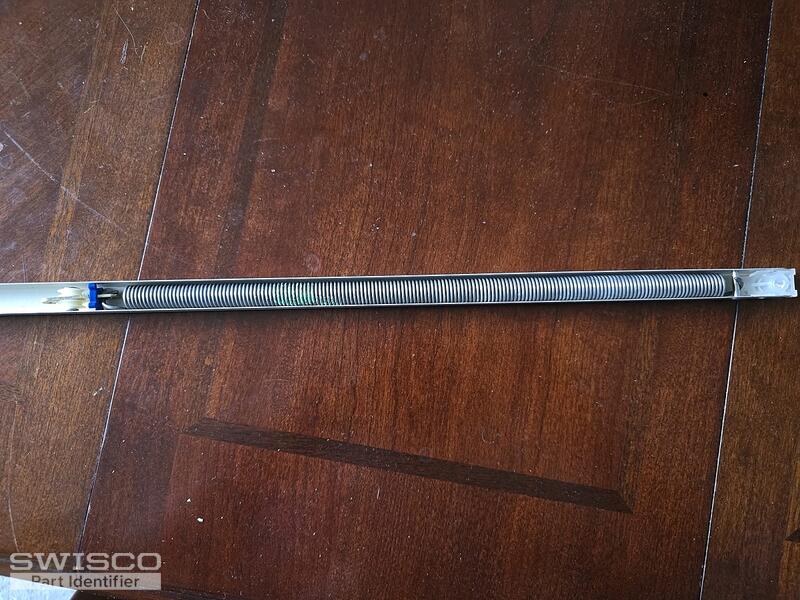

yes sure in the top you will find the place for one screw to attach the balance to the window and the buttom of the balance is open I attached the pictures

5 user uploaded images

Casey from SWISCO

Jan 3, 2025 8:51 am

Thanks for getting back to us. It looks like you'll need the S770 channel balance with the 15-044 attached, which we can supply through a custom order. To get started, please confirm that your balance channel measures 29" long. We'll also need to know the number of balances you need, with the minimum being two.

Alternate image for 15-044

If you need new pivot shoes as well, we also offer the 15-216 commonly used with this balance attachment. Take a look and see what you think.

Alternate image for 15-216
