In Need of New Crank Mechanism and Latch Lever Retaining Clips

A quick learner from Utah says:

Hi Swisco,

Please see attached. The cranking mechanism shown has a gear that has lost some sort of bushing that kept the gears in alignment. I would like a new mechanism. If you have one with a folding handle, that would be preferred, but not necessary.

I also have a separate window whose crank works, but the window latch lever retaining clip has broken. I would like to order two of those (to have a backup on hand).

Let me know if you need any further details.

Thank you,

Jon

Thumbnail of the uploaded file named Crank Front.jpg
Thumbnail of the uploaded file named Crank Back.jpg
Thumbnail of the uploaded file named Crank Arms.jpg

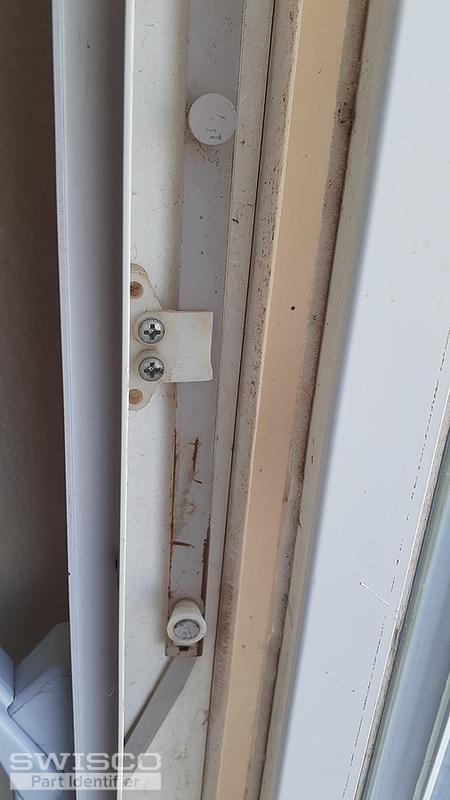

Thumbnail of the uploaded file named Window Latch Lever Retaining Clip.jpg
Profile picture of Emily
Emily from SWISCO responded:

Thanks for posting, Jon. Take a look at our 39-253RB and make sure that the end of the long, straight arm is the same style as ours. For a folding handle, please see our 39-376. You'll also need the 39-417 for your tie bar guide. If you have any questions in the future please feel free to reach out!
