In Need of Replacement Tie-bar and guides

Question

Hello,

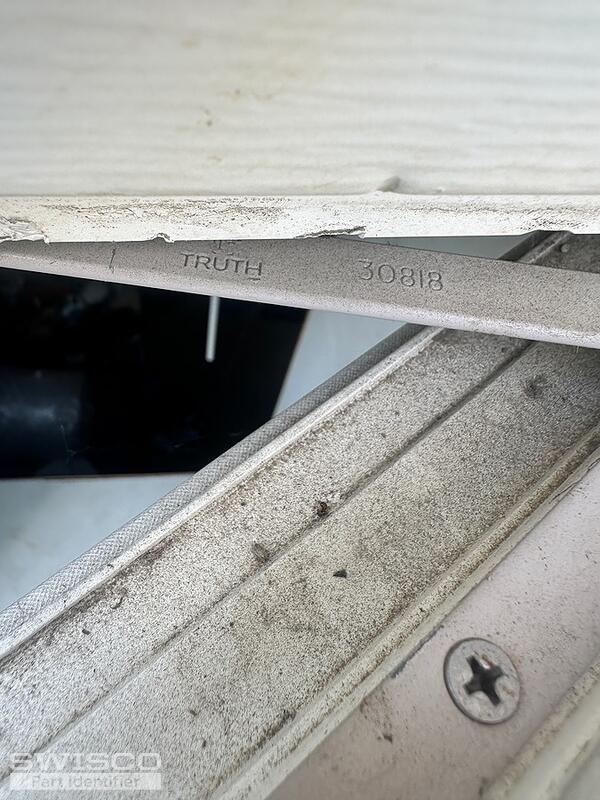

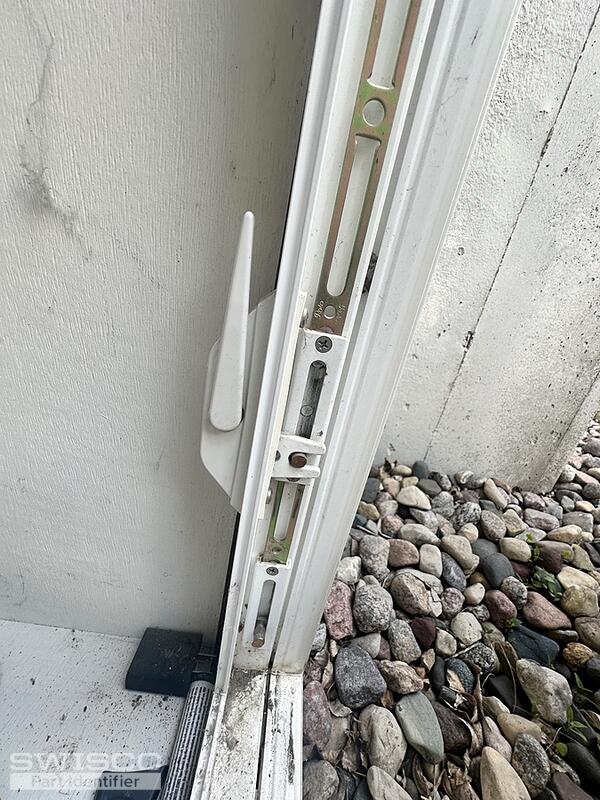

I need help identifying which part numbers I need for a Truth Casement window. The images included are a few I hope can help to identify them. The tie-bar iteself measures just shy of 39" (38.9"?) and there are 3 interlock rollers and 1 lock drive point. It looks to be a different style, but wondering if a 38-965 would fit?I also should mention that the images are from an identical, working window which opens opposite the window I need the replacement parts for. The 3 vertical mounts / guides for the tie bar are also missing and will need those.

Tom · Accepted Answer

I am a little hesitant to recommend the 38-965 for your application, but only because I've never personally used it for this window before. However, the size and roller configuration appear to be identical, and it is compatible with the same style lock you have now. Biggest issue in my mind is that the old brackets you have probably won't be enough to old it in the frame; the 38-965 is traditionally held in using tie bar guides like the 39-417. Just a handful along the length.

It looks like you might have room for these, but you should take some measurements just to be safe. I'm pretty optimistic that if you can fit the tie bar guide, you can use the 38-965.

Just in case, you can see our return policy here.
