In channel balances

A home owner from Beaverton Oregon says:
August 10, 2022
Sash size 25 5/8 h x 45 1/2 w x 1 3/8 t

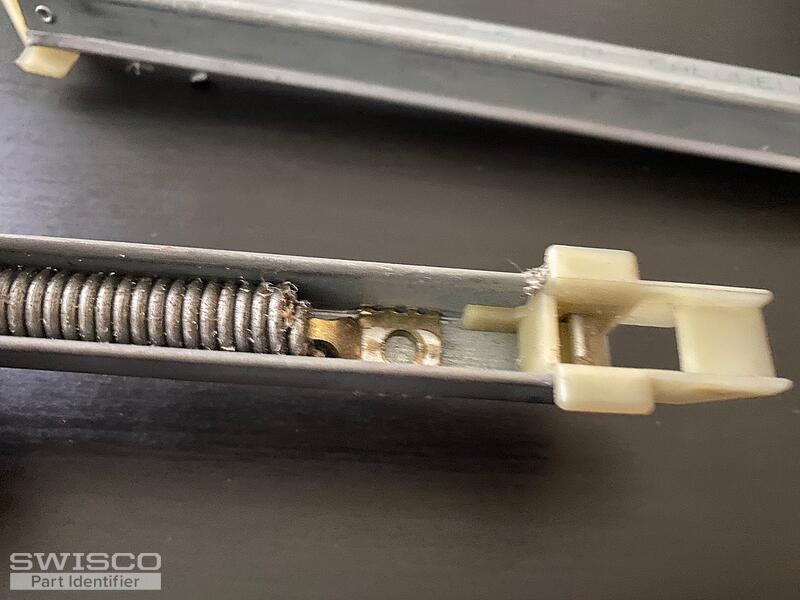

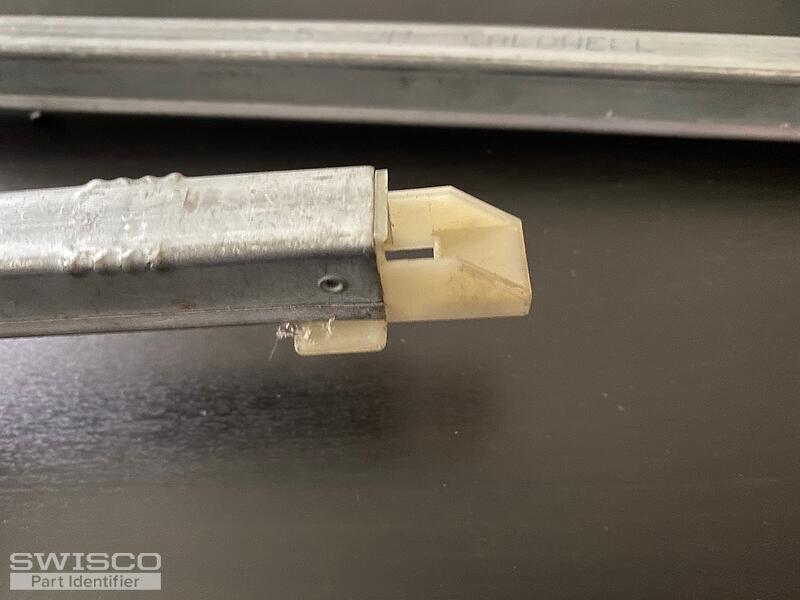

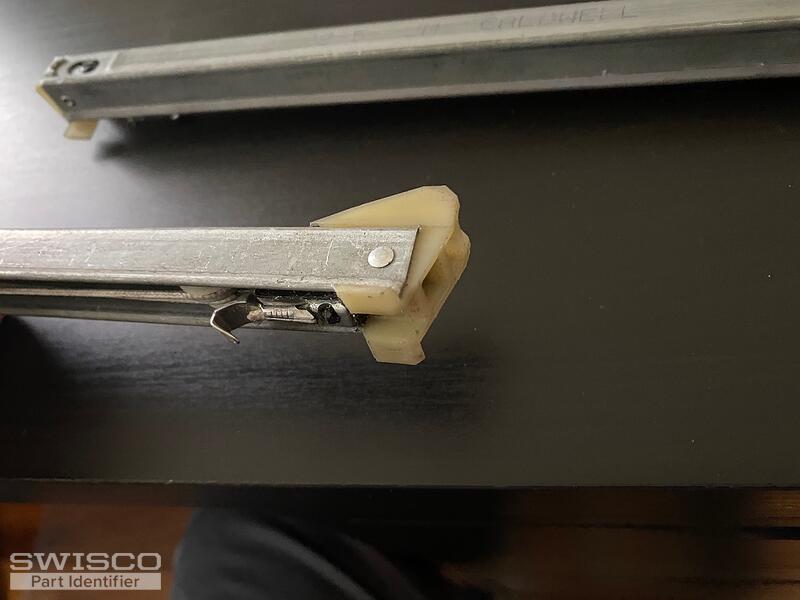

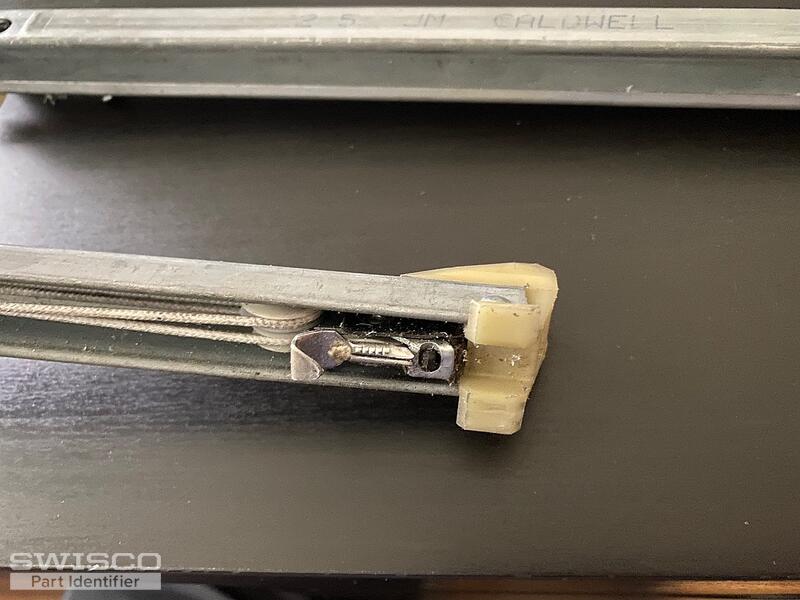

Thumbnail of the uploaded file named EB990283-6235-4FA3-8DB1-D2F19F3A03C6.jpeg
Thumbnail of the uploaded file named 841BF498-2CEF-4B31-9C11-B9F9C87CA74D.jpeg
Thumbnail of the uploaded file named E884FAD3-A339-4241-85B8-FE3133BBD905.jpeg
Thumbnail of the uploaded file named 11B10241-C1E2-485D-8BA1-59418905B79E.jpeg
Thumbnail of the uploaded file named 4549F59C-34A2-47ED-920B-48C6A4F6448D.jpeg
Profile picture of Emily
Emily from SWISCO responded:
August 12, 2022

Hi there!

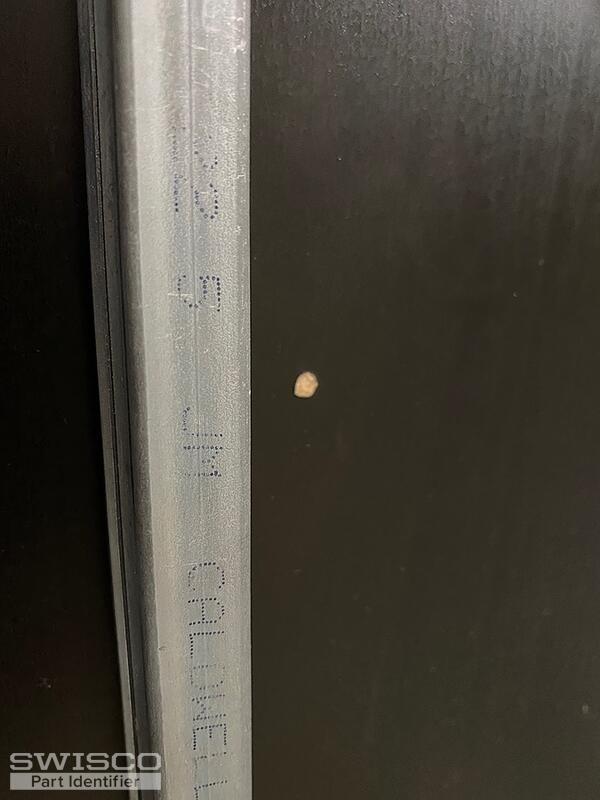

I recommend either our S380-23 or S385-23 channel balance, depending on the size of your bottom shoe. Our Series 380 has a 1" deep shoe and the Series 385 has a 1-3/32" deep shoe. Measure as shown in the diagram below to see which one matches up best for what you need. Based on your 22 5 stamp, you'll also need the 2250 strength option.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A home owner from Beaverton Oregon says:
August 12, 2022

Emily, Thank you for the quick answer, you reaffirmed my thoughts on my choice of the balances that I was about to order. Now I have found a great place for my window and door repair supplies.

Thanks again

Duncan

Profile picture of Emily
Emily from SWISCO responded:
August 12, 2022

No problem, always happy to help! We really appreciate your business, Duncan. Good luck with the repair and please let me know if I can be of further help!
