In need for parts for window balance

Quick Learner from San Francisco

Nov 11, 2024 7:04 pm

Hello,

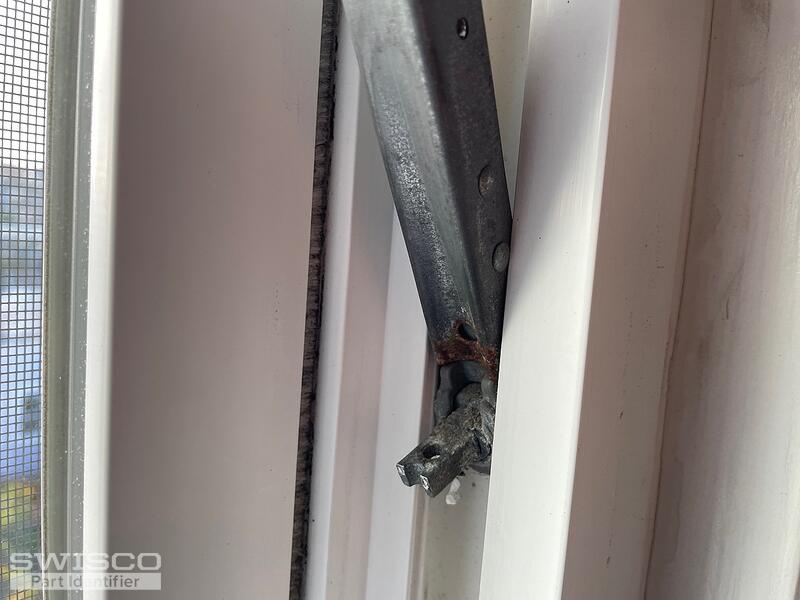

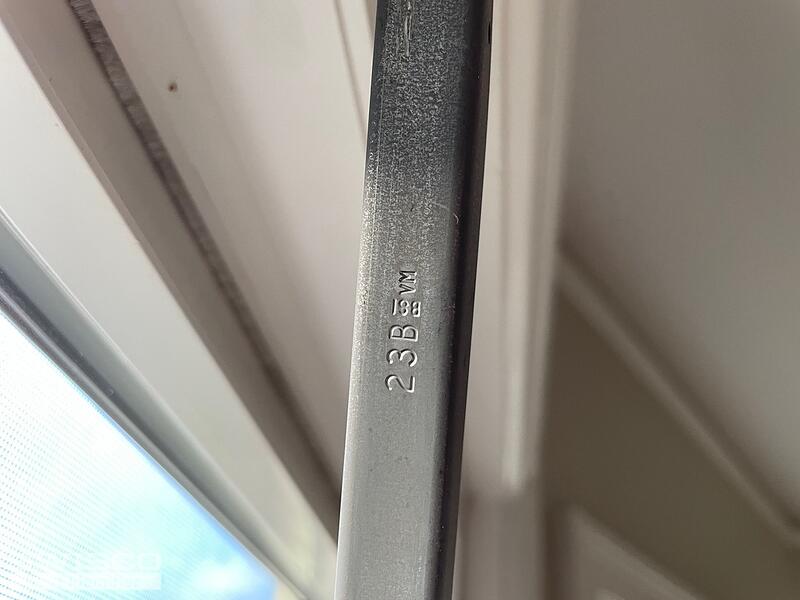

One of my window balances broke, and I need to replace it. It has the following markings on it: 23B VM BSI. Could you please help me identify it?

Thank you.

Best,
Julien

5 user uploaded images

6 Replies

Emily from SWISCO

Nov 15, 2024 10:52 am

Hi there Julien.

Thank you for reaching out to us. We're happy to help with this. Can you fully remove the balance from the window and show us a photo of the shoe? I'm afraid I can't make it out from your fourth photo here.

Quick Learner from San Francisco

Nov 22, 2024 12:59 am

Hi Emily,

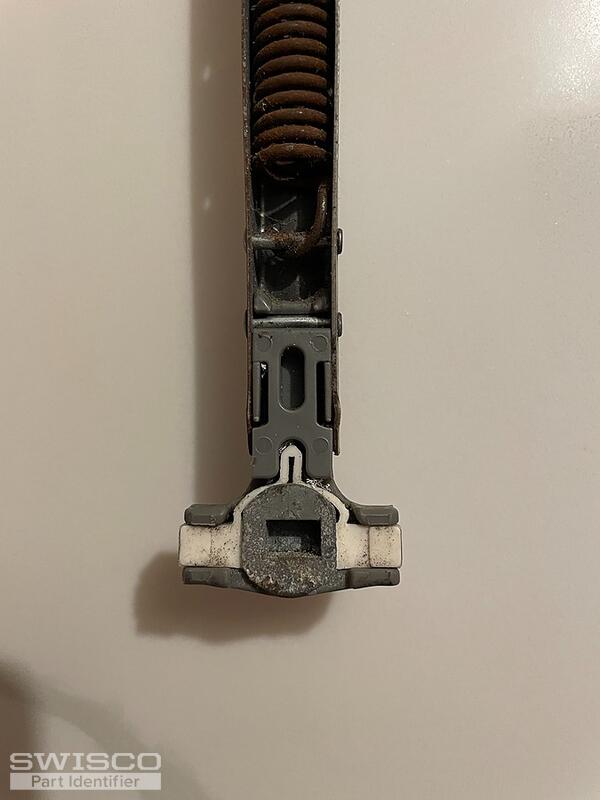

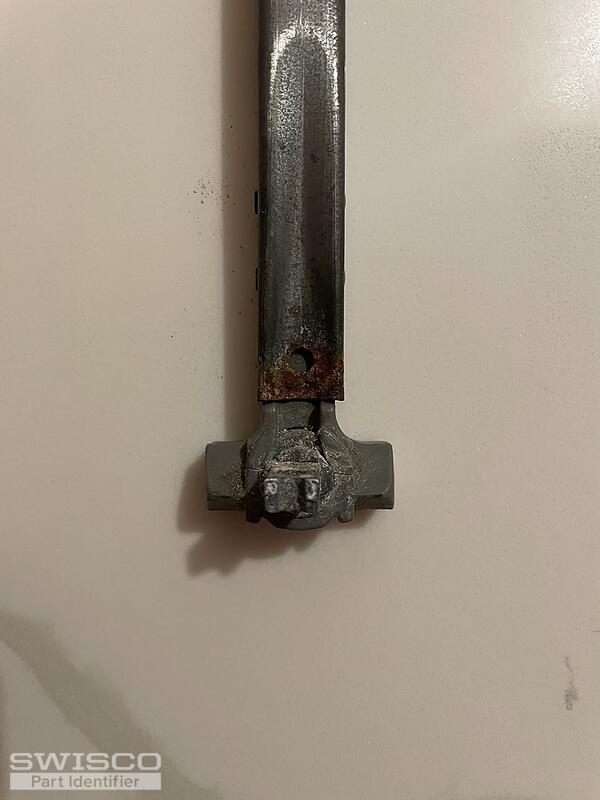

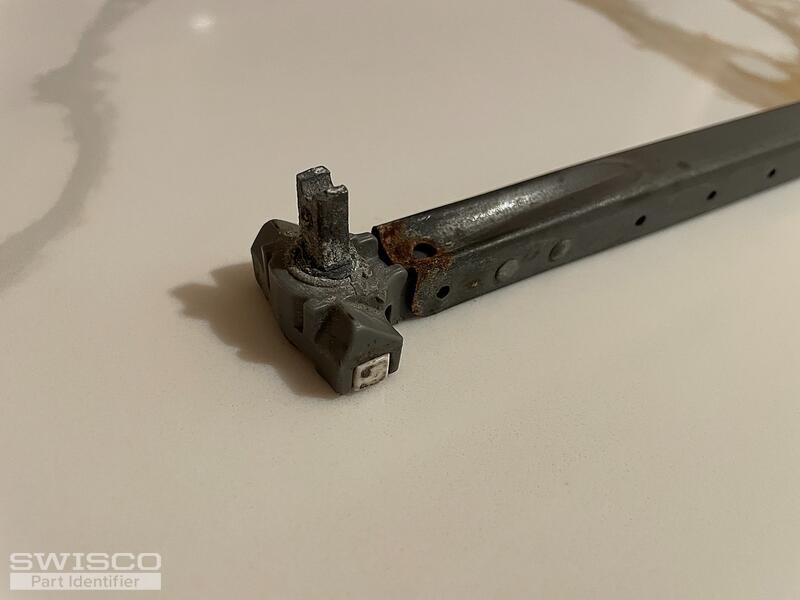

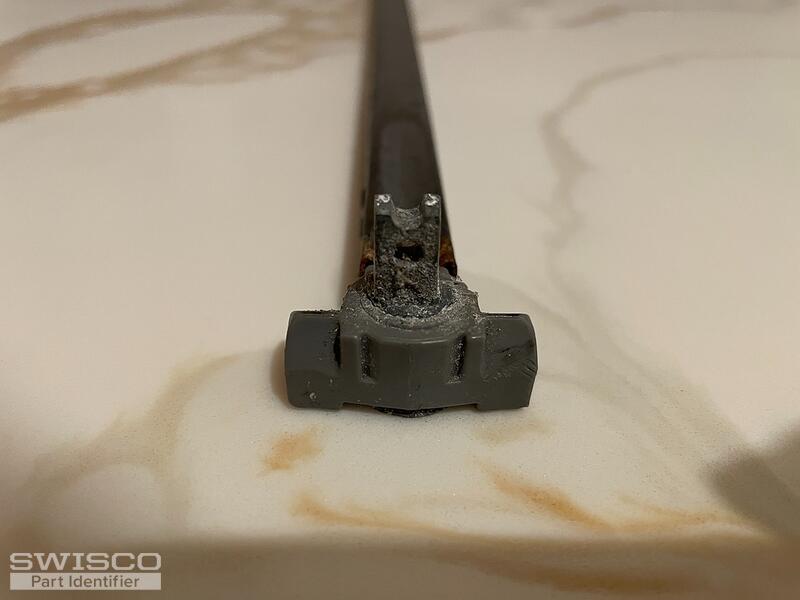

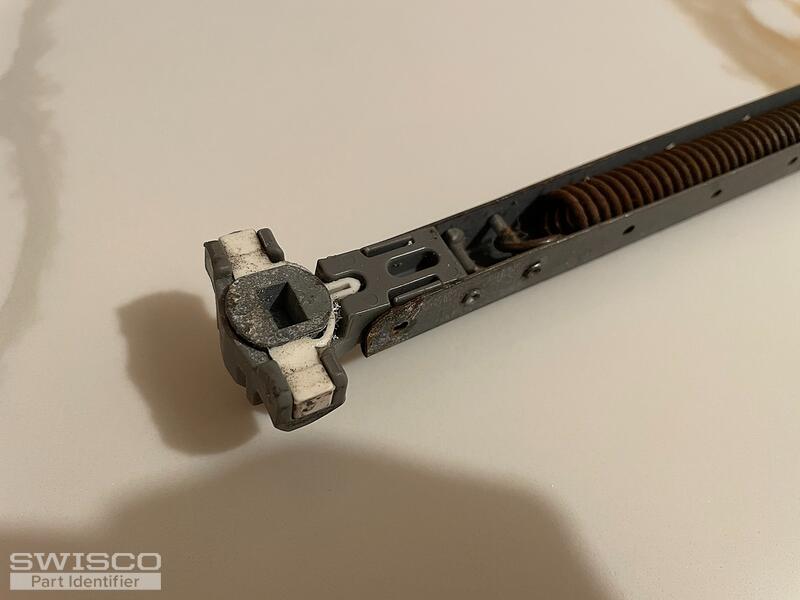

Sure, I have removed the balance completely and taken pictures of the shoe - please see attached.

Thank you!

Best,
Julien

5 user uploaded images

Emily from SWISCO

Nov 22, 2024 8:01 am

Thanks Julien! The S795-23 with the 23B stamp option looks like a match. This comes with a closed cam shoe by default but you'll need to purchase the 15-195B separately since your old shoe has an open cam. The video below will show how to pop these shoes on and off.

Let me know if you have any questions!

Quick Learner from San Francisco

Nov 22, 2024 2:43 pm

Hi Emily,

Perfect, thank you so much! I will place an order right now.

Best,
Julien

Emily from SWISCO

Nov 25, 2024 8:05 am

Thank you for your order, Julien! We appreciate it. Good luck with the repair!
