Indoor sliding door roller array : SWISCO.com

Handy Person from Bayside, NY

Nov 10, 2023 5:34 pm

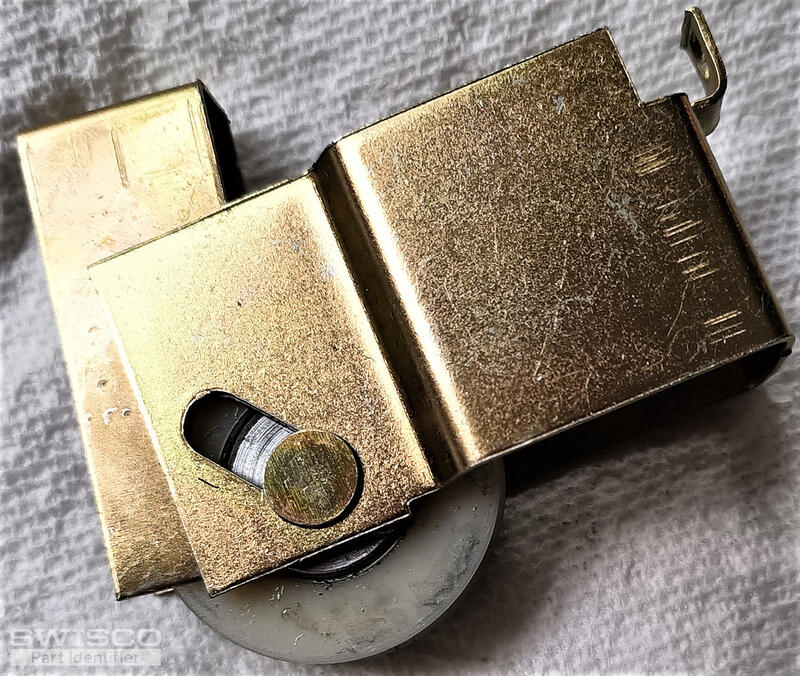

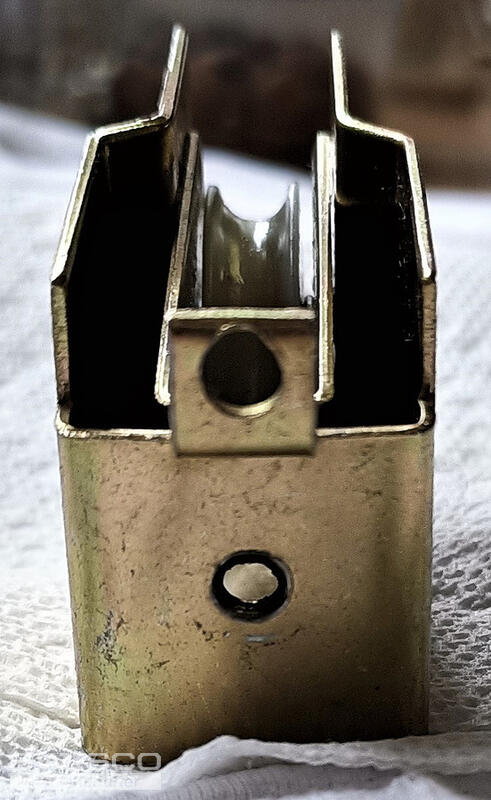

Wheel is made from a plastic with a 1" diameter and the rest of the case is just under 1" wide, 1 3/8" high and 2 3/8" long, 2 6/8" including the little hook where the screw attaches to the door. Anything similar enough and exactly alike to this?

5 user uploaded images

5 Replies

Emily from SWISCO

Nov 14, 2023 3:40 pm

Hello there!

Thank you for reaching out to us. The best option in our inventory appears to be the 23-080. It's very similar to what you have here but a little more narrow. I'm hoping the dimples on the sides of the housing help make up for that. Take a look and see what you think.

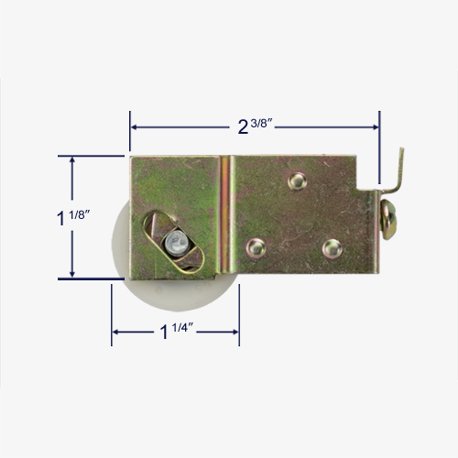

Dimensions for 23-080

Alternate view of 23-080

Handy Person from Bayside, NY

Nov 20, 2023 12:03 pm

Greetings,
and as per your recommendation, I ordered the below listed and it was a not so good match to replace what I originally had. Because it lacks the height and adjustments for it, the sliding door slides a bit too low. With my grandsons running around, I do not need the hazard.
Thank you,

I have adjusted the wheels to their maximum level and obviously I can do no more. The original piece had a wheel that was 1 3/8" diameter and the case was 1 3/8" high x 2 3/8" inches long (without the f-tab) and 1" wide.

Dave Sr. from SWISCO

Nov 22, 2023 11:45 am

I'm sorry to say that the 23-080 was the closest we could find. The only other thing we can suggest is the 81-228 wheel and 81-310 axle repair kit. If your old roller housing is in good shape, this might be a solution to consider. Take a look at the specifications along with the related videos and see what you think.

Home Owner from Southern California

Dec 27, 2023 12:50 am

I just wanted to comment that I am also looking for this larger version. Mine looks and measures exactly like the photos here from "Bayside NY" and a couple other comments on this part. Except I'm measuring my roller at 1-1/2". 1/8 either way in the roller diameter can be adjusted out. But the 1/4" shorter housing, less so. I'll likely have to drill the rivet and replace just the roller, as this part seems to be a unicorn.
