Inner latch for screen door

A quick learner from San Mateo says:
I need to replace this inner latch.

I purchased a replacement but it was the wrong size

I purchased 40-150 inside handle 1-3/4" and 40-187L square spindle

The spindle needs to be shorter and larger in diameter

What items should I be looking at?
Thumbnail of the uploaded file named 53EC9A89-C480-40D9-A8A7-DBE09130FE0C.jpeg
Thumbnail of the uploaded file named 29435F8B-B722-4935-90EF-7CC0CB0A365B.jpeg
Thumbnail of the uploaded file named 07CB41C4-9B3F-4884-AC42-74A4B8014A39.jpeg

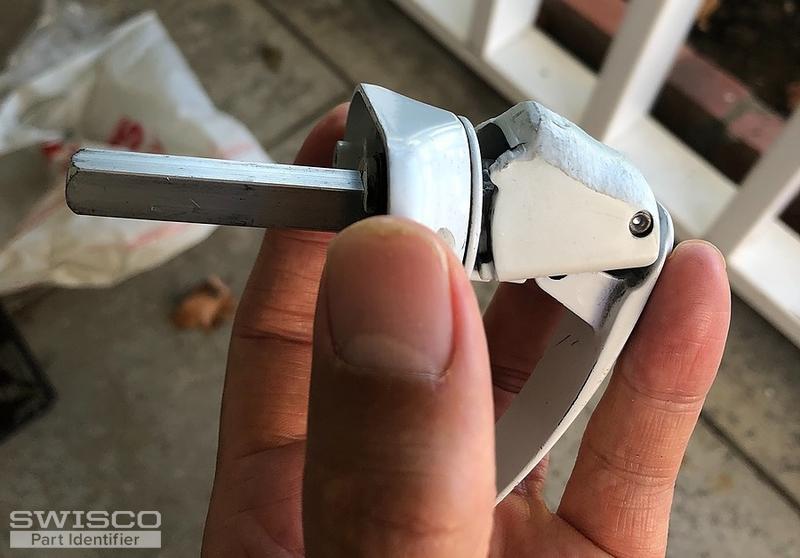

Thumbnail of the uploaded file named E8C69FFA-002D-4235-9DFF-E5FF5B4B4188.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for contacting us. Sorry to hear you're having trouble with your handle set. Unfortunately, we do not have a larger version of the 40-187L spindle. Would it be possible to reuse your original? The 40-150 can accept both a 3/16" and 5/16" spindle, depending on whether the insert has been removed or not.

If you cannot reuse your original, then I recommend checking a local hardware store. They should have a spindle in the size you need.
