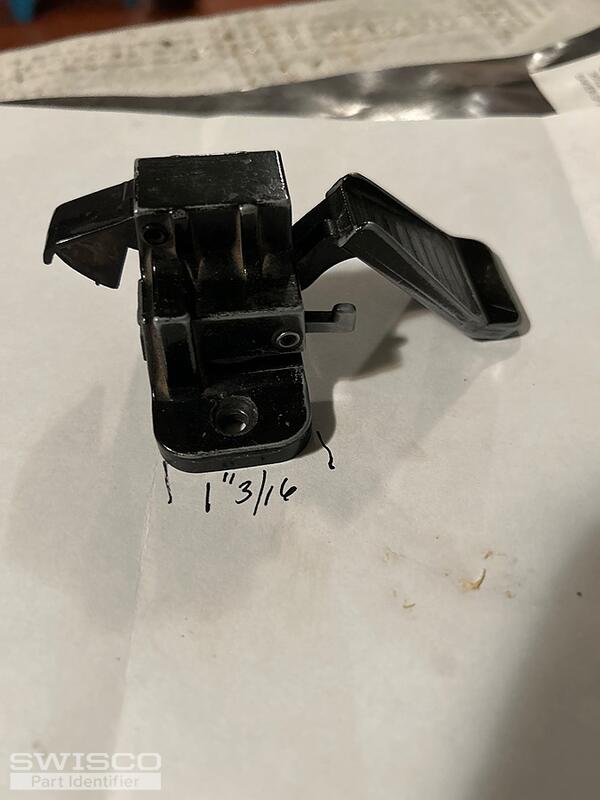

Inside door catch with a locking mechanism 1 3/4"
Quick Learner from Bakersfield, ca.
Aug 29, 2023 2:16 pm

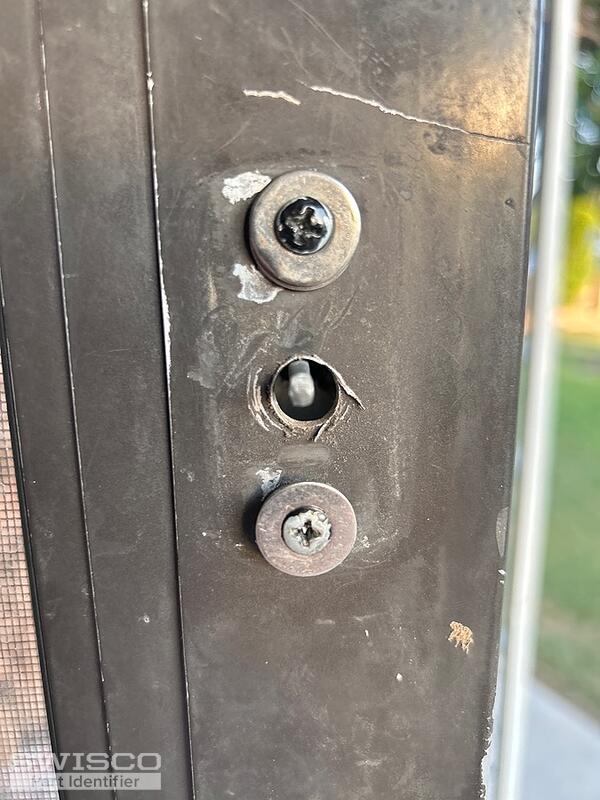

Catch broke and can't open door from outside
2 user uploaded images
4 Replies
Casey from SWISCO
Aug 31, 2023 10:56 am
Hello,
Take a look and compare the specifications of the 40-117 inside latch to your part. We'll include the dimensions from our product page below. Thanks for posting!
Underside view of 40-117
Alternate image for 40-117
Underside view of 40-117
Quick Learner from Bakersfield, ca.
Aug 31, 2023 9:55 pm
The rectangle rod that connects and activates both handles that is shown in photo of inside door is 1/8".
Base thickness on handle is 1/4"
Base thickness on handle is 1/4"
3 user uploaded images
Casey from SWISCO
Sep 1, 2023 8:11 am
Unfortunately, we do not carry an inside latch that will accommodate a 1/8" spindle but you could consider using something like the 40-177 or 40-130, which come with inside and outside handles. We can't make any guarantees but review the specifications of both options to see if you could adapt one of them to work for your application.
