Internal Tilt Latch

A quick learner from NYC says:
March 11, 2023
Hi,

I'm wondering if you can help identify this tilt latch. It slides into a groove in the top of the window and then the thumb slider snaps into place from above.

To the best of my knowledge the windows were manufactured around 1990. They are double paned with aluminum frames.

Thanks!
Thumbnail of the uploaded file named IMG-5052.jpg
Thumbnail of the uploaded file named IMG-5051.jpg
Thumbnail of the uploaded file named IMG-5050.jpg

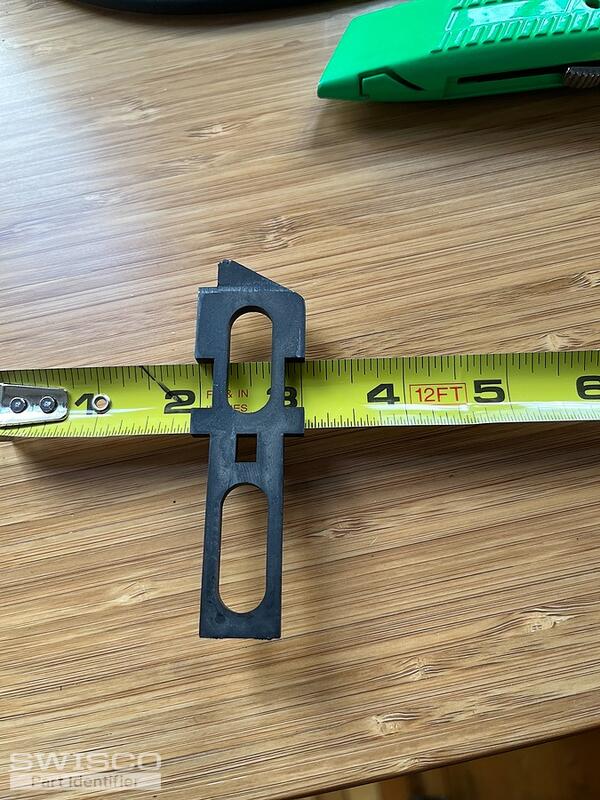

Thumbnail of the uploaded file named IMG-5049.jpg

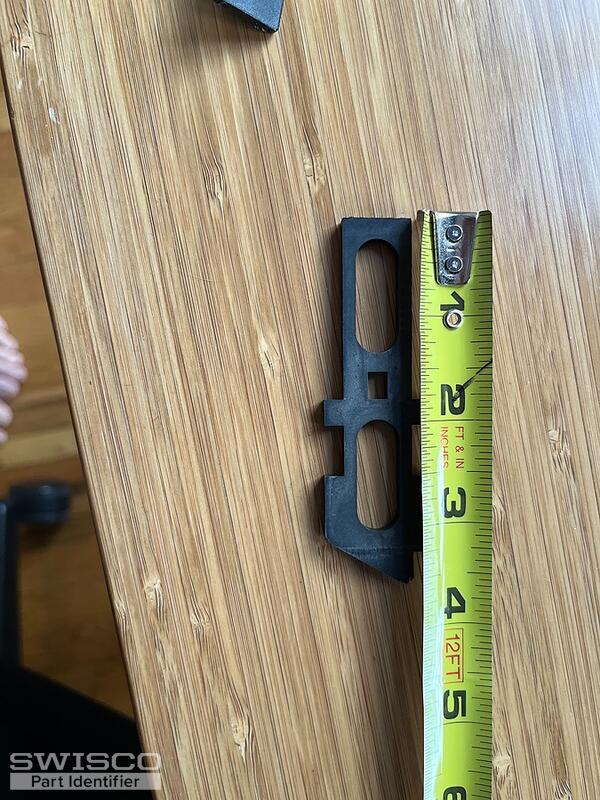

Thumbnail of the uploaded file named IMG-5048.jpg
Profile picture of Casey
Casey from SWISCO responded:
March 13, 2023

Hello,

Unfortunately, we do not carry an exact match for your internal latch. Your best bet may be substituting it with a surface mounted tilt latch that screws directly to the sash frame. See the tutorial below that shows how we do this. We find it to be a good solution for sashes like yours. Take a look and see what you think.
A quick learner from NYC says:
March 14, 2023
Hi -- thanks for the quick reply.

It looks like this could be a good match for the color of our windows. https://www.swisco.com/Top-Tilt-Latch-Neutral/pd/Surface-Mounted-Latches-For-Tilt-Windows/26-188

Do you have a recommendation for what size / type of fastener to use?

Thanks!
Profile picture of Casey
Casey from SWISCO responded:
March 14, 2023

The 26-188 accepts a #8 screw. The length would depend on the thickness of your sash frame. You would just have to make sure that the screw that you use will engage with the new installation holes but are not long enough to hit the glass in your sash.
Black Metal Neutral Tilt Latch, 2-5/16"
Black Metal Neutral Tilt Latch, 2-5/16"
26-188
$5.25
Replace an Internal Latch with a Surface Mounted Latch [1080p]
Replace an Internal Latch with a Surface Mounted Latch [1080p]
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
Styles of Tilt Window Latches
Styles of Tilt Window Latches
GUIDE
READ >
