Internal Tilt Latch - White

Home Owner from Frederick, MD

Apr 12, 2021 5:49 pm

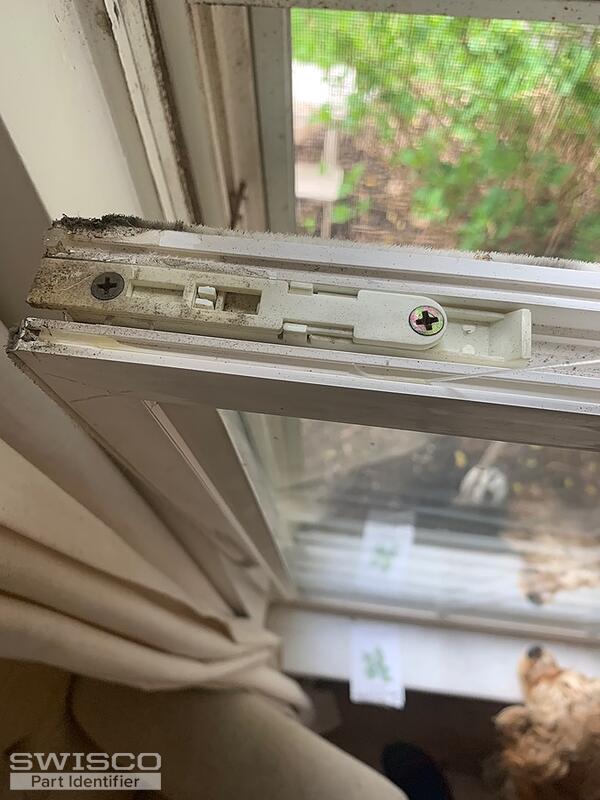

I hope the pictures are sufficient. I'm looking to replace the latches that are attached by two screws to the window (underneath the top plastic strip that covers the top of the window.

The latches are moved in and out. When they are not pushed in, there is an angled plastic piece that keeps the window in place by the angle wedging in between the channel and the plastic. When pushed inward, the angled plastic piece also moves inward, allowing the window to be come out or tilt inward.

2 user uploaded images

6 Replies

Emily from SWISCO

Apr 16, 2021 8:47 am

Hello! To narrow down our options, we'd need to see your sash release lever removed from your window. In the meantime, check out our 26-001, 26-119 and 26-234 and make sure to go over the length of the forks, as well as the spacing between them, to see if they match what you need.

Home Owner from Frederick, MD

Apr 16, 2021 10:04 am

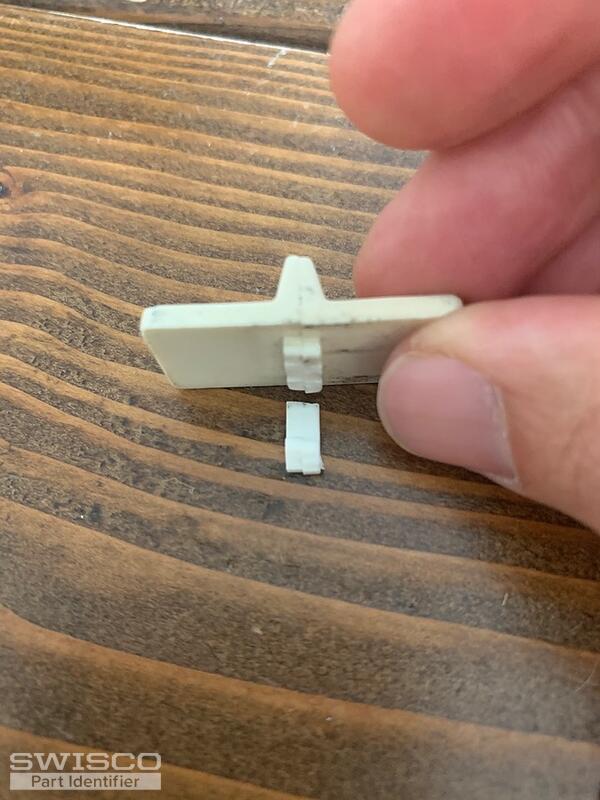

I think this is what you're looking for. The piece that is screwed in usually has a triangular piece but it has broken off.

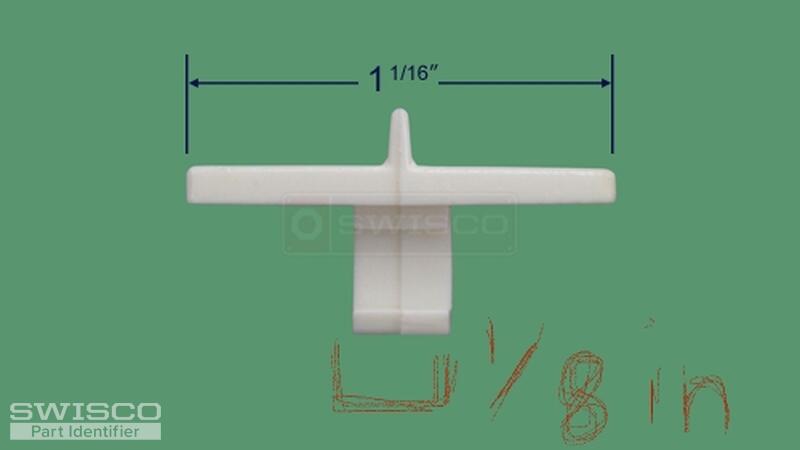

From the options you sent, 26-001 is the only one that has the piece underneath that looks to be the correct dorection, but in the picture it looks like the piece underneath is 1/8th of an inch. If it is 1/8th of an inch (mine is), it should work.

Thoughts?

4 user uploaded images

Emily from SWISCO

Apr 16, 2021 10:59 am

Thanks for the additional photos! You'll need our 26-334 tilt latch set. The thumb lever for this is not sold separately, unfortunately. If you have any other questions just let us know.

Quick Learner from Haverhill

Nov 11, 2021 7:40 am

I'm trying to find the part to this lever that is in the window. Any idea what product number that is

Emily from SWISCO

Nov 11, 2021 8:54 am

It sounds like you may be looking for the internal part of the 26-334 latch. I'm afraid that part is not sold separately, unfortunately. I apologize for any inconvenience.
